UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment

  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number UL20723
Minimum Order Quantity 3050

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Material Tinned Copper Diameter Options 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20, 7X22
Insulation Material FEP Rated Voltage 600V
Conductor Type Solid Shape Round
Temperature Rating 200℃ Type Insulated
Core Requirements 2 Cores Or More 16-4/0 AWG FEP Wire Braid Construction 16X6X012, 16X7X012, 24X6X0.12, 24X8X0.12, 24X10X0.12
Braid Thickness 0.50mm, 0.60mm, 0.70mm, 0.80mm Outer Garment Thickness 0.35mm
Nominal Thickness 0.50mm AWG Size 22, 20, 18
Conductor Construction 19/0.15mm, 19/0.19mm, 19/0.235mm
Highlight

UL20723 FEP Wire

,

Multi Core FEP Wire

,

FEP Insulation Wire
Leave a Message
Product Description

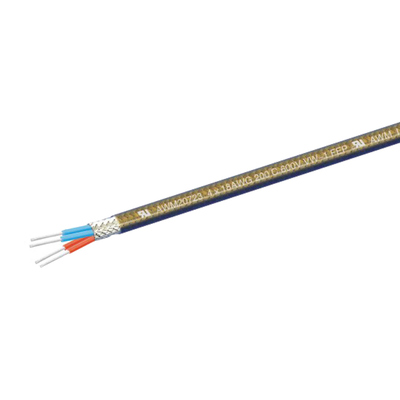

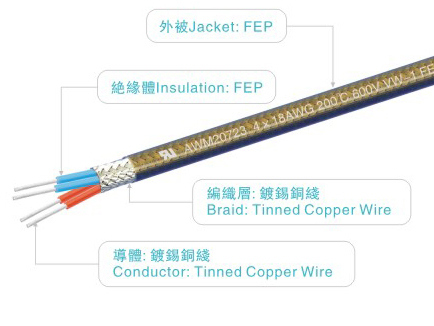

UL20723 FEP Multi Core Wire 600V 200°C Tinned Copper Braid 2X18 - 7X22 High Temperature FEP Wire for UAV Robot
Supplies Fortune 500 Companies | Top PFA Wire Supplier In China
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 0 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 1
Specification
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter (mm)
2X2219/0.150.750.5016X6X0120.354.50-5.50
2X2019/0.190.900.5016X6X0120.355.00-6.00
2X1819/0.2351.170.5016X6X0120.355.30-6.30
3X2219/0.150.750.5016X6X0120.354.50-5.50
3X2019/0.190.900.5016X6X0120.355.00-6.00
3X1819/0.2351.170.5016X6X0120.355.30-6.30
4X2219/0.150.750.5016X7X0120.354.50-6.00
4X2019/0.190.900.5016X7X0120.355.00-6.50
4X1819/0.2351.170.5024X6X0.120.355.30-7.00
5X2219/0.150.750.5016X7X0120.355.00-6.50
5X2019/0.190.900.5016X7X0120.355.50-7.00
5X1819/0.2351.170.5024X6X0.120.356.00-7.50
6X2219/0.150.750.5016X8X0120.355.5-7.00
6X2019/0.190.900.5016X8X0120.356.00-7.50
6X1819/0.2351.170.5024X8X0.120.356.50-8.00
7X2219/0.150.750.5016X8X0120.356.00-7.50
7X2019/0.190.900.5016X8X0120.356.50-8.00
7X1819/0.2351.170.5024X10X0.120.357.00-8.50
Company Profile
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 2 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 3
Our Products
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 4
Application
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 5
Our Overseas Clients
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 6
Exhibition
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 7
Certifications
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 8
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
2. What Can We Provide?
We provide high-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
3. Why Choose Us?
  • Free samples available
  • Competitive pricing
  • High quality standards
  • Customized services
4. What Certifications Do We Have?
UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
