Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinned Copper Wire | Diameter | 14AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 600v |
| Conductor Type | Tinned Copper | Shape | Round |
| Temperature | 200C | Type | Insulated |
| Conductor | Copper Core | Insulation | Silicone Rubber Insulation Cable |
| Material | Copper | Jacket | Silicone Rubber |
| Nominal Thickness | 0.78mm | Diameter Range | 2.10±0.1mm To 20.5±1.0mm |
| Construction | 25/0.08 To 21338/0.08 | ||
| Highlight | 14AWG Silicone Insulated Wire,600V Silicone Rubber Wire,200C Silicone Electrical Cable |
||
Product Description
Super Soft Silicone Wire Electric Cable 22-0 AWG UL3512 Flexible Automotive Tin-plated Battery Cable
Premium Silicone Rubber Wire Supplier
Supplies Fortune 500 companies - Top Silicone Rubber Wire Supplier in China.
UL3512 - 0.08 Super Soft Silicone Wire Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
| 9 | 1320/0.08 | 3.80±0.3 | 1.15 | 6.10±0.3 |
| 8 | 1650/0.08 | 4.00±0.30 | 1.15 | 6.30±0.3 |
| 7 | 2100/0.08 | 4.80±0.3 | 1.52 | 7.90±0.3 |
| 6 | 2648/0.08 | 5.30±0.30 | 1.52 | 8.30±0.4 |
| 5 | 3338/0.08 | 6.10±0.5 | 1.52 | 9.20±0.4 |
| 4 | 4210/0.08 | 6.80±0.5 | 1.52 | 9.90±0.4 |
| 3 | 5309/0.08 | 7.80±0.5 | 1.52 | 10.9±0.5 |
| 2 | 6692/0.08 | 8.70±0.5 | 1.52 | 11.8±0.5 |
| 1 | 8842/0.08 | 10.0±0.6 | 2.03 | 14.0±0.6 |
| 1/0 | 10647/0.08 | 11.0±0.70 | 2.03 | 15.0±0.6 |
| 2/0 | 13422/0.08 | 12.3±0.8 | 2.03 | 16.3±0.7 |
| 3/0 | 16921/0.08 | 14.50±0.70 | 2.03 | 18.50±0.60 |
| 4/0 | 21338/0.08 | 15.2±0.8 | 2.03 | 20.5±1.0 |

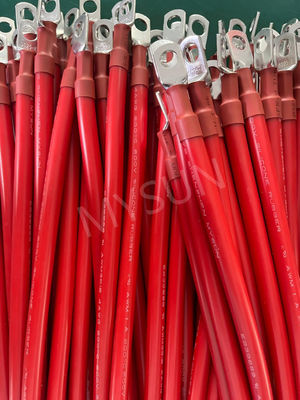

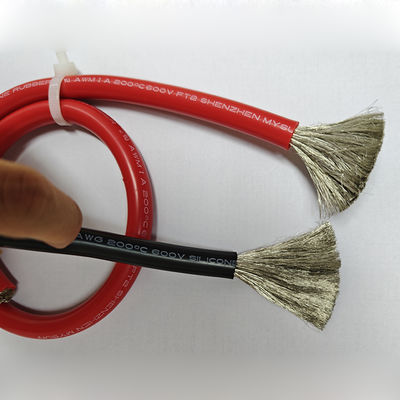

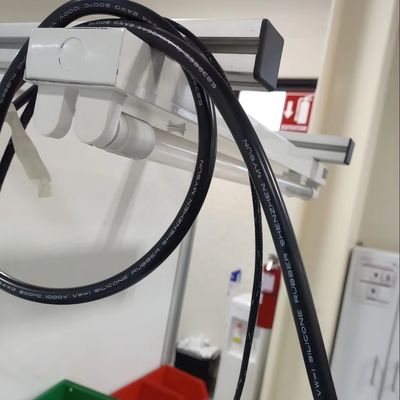

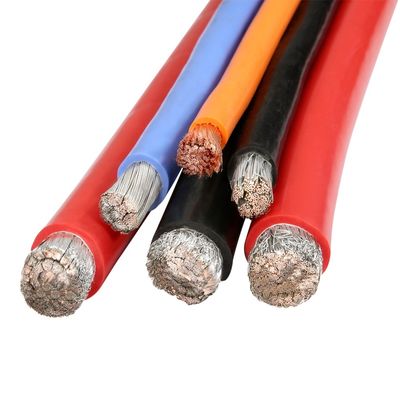

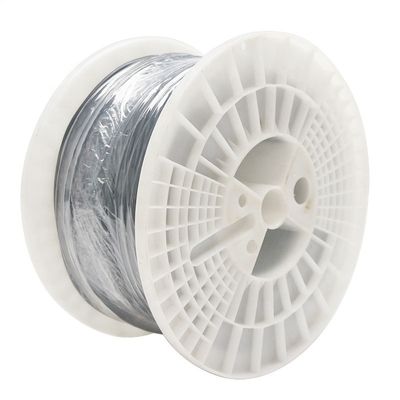

Product Gallery
Applications
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- Services: Delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment methods: T/T, L/C, PayPal, Western Union, Cash.
