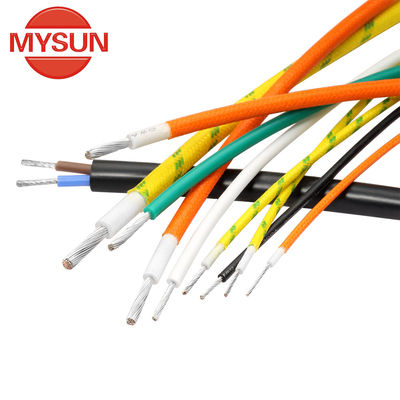

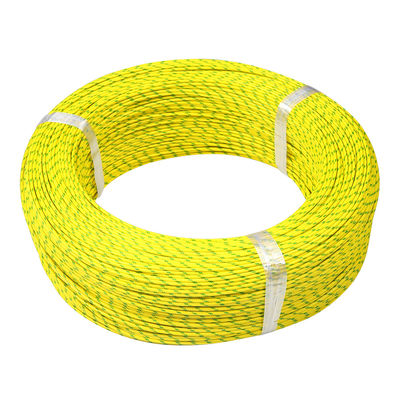

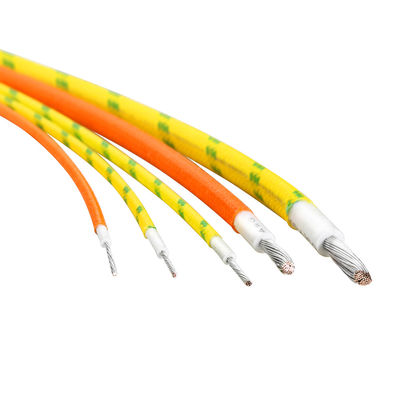

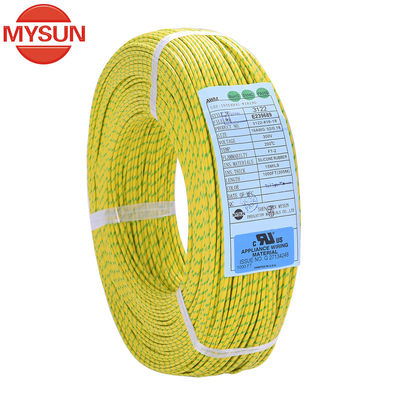

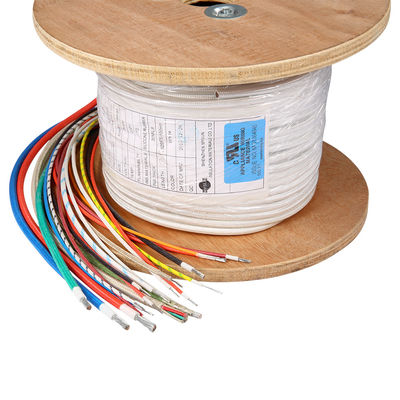

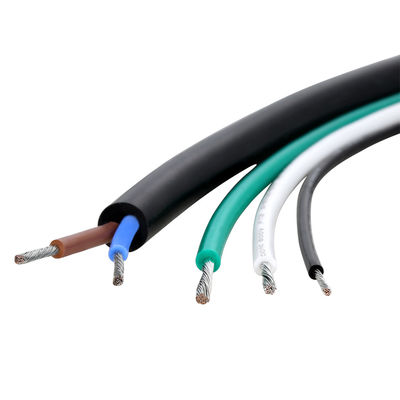

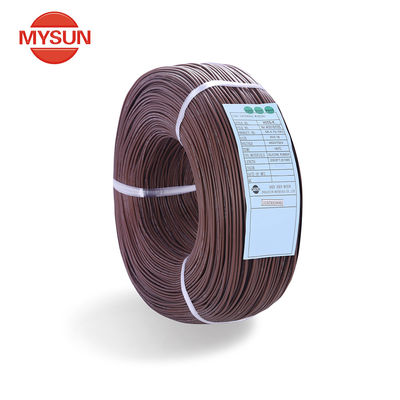

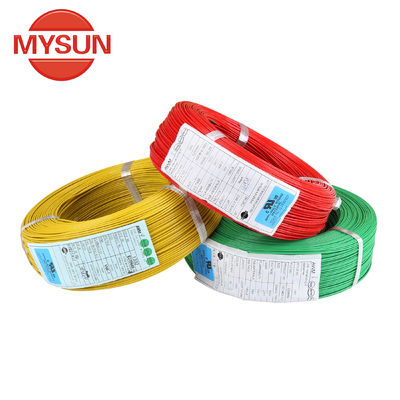

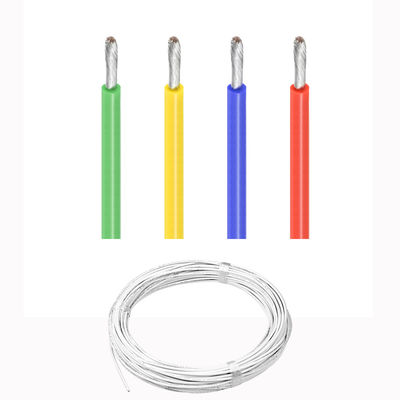

VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor

  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
  • VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor
Place of Origin China
Brand Name Mysun
Certification VDE
Model Number H05S-K
Minimum Order Quantity 3050M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Rated Voltage 450/750V Cross Section 0.75mm2
Core Single Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll
Rated Temperature 180C Conductor Tinned Copper
Insulation Silicone Rubber Material Silicone+Tinned Copper
OD 3.52-4.08mm Nominal Thickness 0.8mm
High Light

180C Flexible Electrical Wire

,

750V Flexible Electrical Wire

,

0.75mm2 Flexible Electrical Wire
Leave a Message
Product Description

Rated Voltage:450/750V

Rated Temperature:180C

Standard:VDE 0282-3

Application:Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.

Color:White Black Red Yellow Green Brown

Section:0.5mm-2.50mm



Conductor Insulation Max Cond resistance
(ohms/m)		 Unit length
(m)(F)
Section Construction Diameter Nominal Thickness Diameter
(mm²) (NO./mm) (mm) (mm) (mm)
0.50 20/0.18 0.92 0.80 2.52 40.1 305/1000
0.75 30/0.18 1.13 0.80 2.73 26.7 305/1000
1.00 40/0.18 1.31 0.80 2.91 20 305/1000
1.25 50/0.18 1.46 0.80 3.06 14.35 305/1000
1.50 30/0.254 1.60 0.90 3.40 13.7 305/1000
2.00 41/0.254 1.87 0.90 3.67 8.78 305/1000
2.50 50/0.254 2.08 1.00 4.08 7.16 305/1000





VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor 0

VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor 1

VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor 2

OUR PRODUCTION

VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor 3

ABOUT US

VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor 4

VDE H05S-K 180C Stranded Flexible Electrical Wire 0.75mm2 750V Tinned Copper Conductor 5

Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL ,CCC,VDE,CSA certificate.



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
