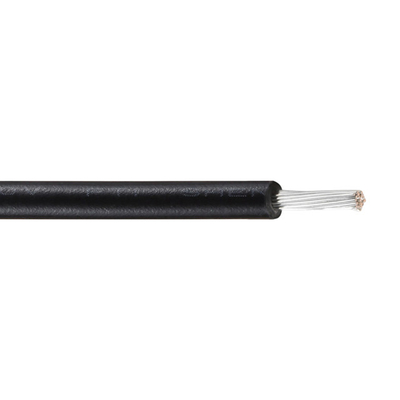

UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG

  • UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
  • UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
  • UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
  • UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
  • UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
Place of Origin China
Brand Name mysun
Certification ul
Model Number ul3321-9AWG
Minimum Order Quantity 100METER
Price 0.01 USD
Packaging Details 305M/ROLL, 610M/ROLL, CARTON 32CM*32CM*32CM
Delivery Time 7~15DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 1800000 PER DAY
Product Details
MATERIAL XLPE+ TINNED COPPER CONDUCTOR TINNED COPPER
STANDARD UL758 RATED VOLTAGE 600v
Rated Temperature 150C Color Customer's Requirement
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 MOQ 305M/Roll OR 200M/ROLL
Advantage 22 Years Production Experience Product Name Copper Core XLPE Wire
Highlight

Insulated Flexible Hook Up Wire 20AWG

,

XLPE Heat Resistant Electrical Wire

,

Generator XLPE Insulated Cable
Leave a Message
Product Description
Products Description
UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
UL3173 Insulated XLPE Hook Up Wire Oil Resistance Electric Cable For Generator 20AWG
Specification Table
Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
30
7/0.10
0.30
0.78
1.86
361
305/1000
28
7/0.127
0.38
1.94
227
26
7/0.16
0.48
2.04
143
24
11/0.16
0.60
2.16
89.3
22
17/0.16
0.76
2.32
56.4
20
21/0.18
0.94
2.49
35.2
18
16/0.254
1.18
2.73
22.2
16
26/0.254
1.50
3.06
14
14
41/0.254
1.89
3.45
8.78
12
65/0.254
2.37
3.93
5.53
10
105/0.254
3.02
4.58
3.476
9
133/0.254
3.36
4.92
2.73
8
133/0.28
3.75
1.15
6.05
2.16
100/328
6
84/0.45
4.79
7.09
1.361
4
133/0.45
6.02
8.32
0.8559
2
212/0.45
7.60
1.53
10.66
0.5384
