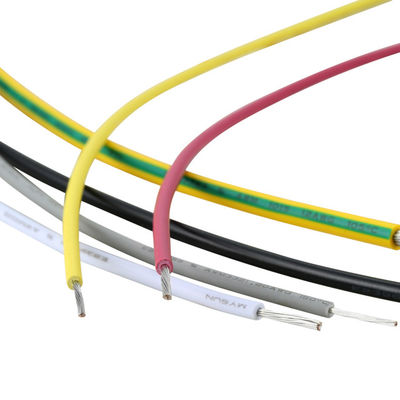

8 Awg 125C High Voltage XLPE Hook Up Wire 600V UL3195 Heat Resistant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 | Voltage | 600V |
|---|---|---|---|
| Temperature | 125℃ | Standard | UL758 |
| Insulation | XLPE | Conductor | Tinned Copper |
| Appliance | Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products And Etc. | Color | All Colors Are Available |
| Name | Halogen Free Cable | Size | 8awg |
| High Light | xlpe insulated wire,cross linked polyethylene wire |
||
Product Description
UL3195 XLPE insulated cable UL certificated
Specifications:
Nominal voltage: 600V
Temperature range: 125C
Standard: UL 758
Insulation: XLPE
Conductor: tinned copper wire
size:8wag
color: all colors are available
appliance:home appliance, headlamp, industrial machine, electro thermal products and etc.
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
| 8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.16 |
100/328
|
XLPE has many qualities which make it extremely useful for cable insulation. It is flexible permitting
smaller bending radius for the cables. It is light weight and water proof. It is also tough which minimizes
the need for armoring. It is easier to handle and store compared to cables with paper insulation or lead insulation.
1. Electrical and Physical Properties
XLPE cable is known for providing an excellent electrical & physical property.
XLPE cable is known for providing an excellent electrical & physical property.
It makes these cables best to use in transmission & distribution lines.
2. It can carry large current
Electricity travels in cables & wires. XLPE cables provide better thermal and aging property.
These special properties make any cable to carry currents under different temperature for long period of time.
Electricity travels in cables & wires. XLPE cables provide better thermal and aging property.
These special properties make any cable to carry currents under different temperature for long period of time.
3. Ease of Installation
Besides having the ability to stand under different temperature. It is very easy to install too.
As these cables are flexible and light in weight.
Besides having the ability to stand under different temperature. It is very easy to install too.
As these cables are flexible and light in weight.
4. No need to stress over height and maintenance
Better insulation, better conductive metal provides these types of cable durable and flexible.
Now, it is easy to install these cables anywhere without stressing over height & route issues.
These type of cables do not possess oil, so it needs low maintenance.
Better insulation, better conductive metal provides these types of cable durable and flexible.
Now, it is easy to install these cables anywhere without stressing over height & route issues.
These type of cables do not possess oil, so it needs low maintenance.
5. No Need of Metallic Sheath
Sheath protects cables from external and internal forces at times.
However, In the case of XLPE cables, you need not worry about any metallic sheath or protection.
Sheath protects cables from external and internal forces at times.
However, In the case of XLPE cables, you need not worry about any metallic sheath or protection.
6. Excellent Protection
An XLPE cable gives an excellent mechanical, electrical, waterproof and radiation resistance.
It is best to use the XLPE insulated cables for electrical connection in line, lead wire of the motor,
An XLPE cable gives an excellent mechanical, electrical, waterproof and radiation resistance.
It is best to use the XLPE insulated cables for electrical connection in line, lead wire of the motor,
signal control line, locomotive wire, mining environmental protection cable, subway with shipping,
nuclear power laying cable, firing X – ray high voltage line, TV high-voltage wire, and power transmission.
