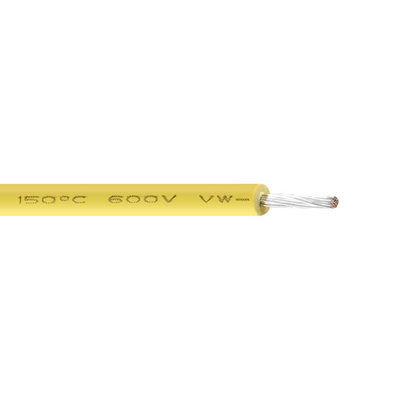

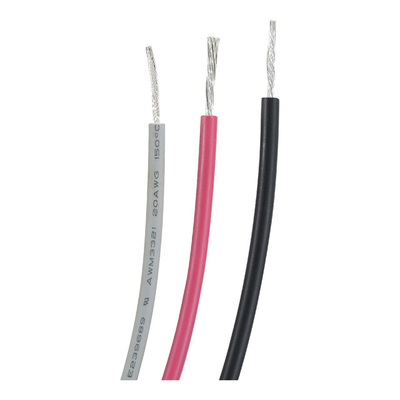

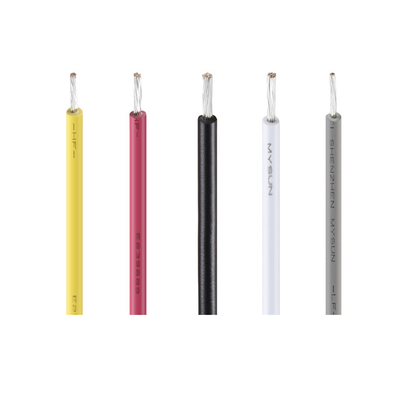

Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable

  • Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
  • Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
  • Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
  • Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
  • Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Place of Origin China
Brand Name mysun
Certification ul
Model Number ul3321-20AWG
Minimum Order Quantity 100METER
Price 0.01 USD
Packaging Details 305M/ROLL, 610M/ROLL, CARTON 32CM*32CM*32CM
Delivery Time 7~15DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 1800000 PER DAY
Product Details
MATERIAL XLPE+ TINNED COPPER CONDUCTOR TINNED COPPER
STANDARD UL758 RATED VOLTAGE 600v
Rated Temperature 150C Color Customer's Requirement
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 MOQ 305M/Roll OR 610M/ROLL OR 100M/ROLL
Advantage 22 Years Production Experience Product Name Copper Core XLPE Wire
Highlight

Copper Core XLPE Insulated Wire

,

Oil Resistance XLPE Power Cable

,

Generator XLPE Insulated Power Cable
Leave a Message
Product Description
Products Description
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Specification Table
Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
30
7/0.10
0.30
0.78
1.86
361
305/1000
28
7/0.127
0.38
1.94
227
26
7/0.16
0.48
2.04
143
24
11/0.16
0.60
2.16
89.3
22
17/0.16
0.76
2.32
56.4
20
21/0.18
0.94
2.49
35.2
18
16/0.254
1.18
2.73
22.2
16
26/0.254
1.50
3.06
14
14
41/0.254
1.89
3.45
8.78
12
65/0.254
2.37
3.93
5.53
10
105/0.254
3.02
4.58
3.476
9
133/0.254
3.36
4.92
2.73
8
133/0.28
3.75
1.15
6.05
2.16
100/328
6
84/0.45
4.79
7.09
1.361
4
133/0.45
6.02
8.32
0.8559
2
212/0.45
7.60
1.53
10.66
0.5384
Recommended by seller


electric wires cables 20 awg flexible UL758 wires fep cable for home appliance single core Copper electric wire

$0.01 - $0.03 / Meter

3050 Meters



Mysun UL3074 High Temp Textile Cables Silicone Fiberglass Wire Cable Tinned Copper Insulated 12 Awg Stranded UL Rohs UL 758 200℃

$0.05 - $0.10 / Meter

305.0 Meters



Customizable Silicone Wire 14 18 20 22 24 AWG electrical flexible copper cable wire 2 4 6 8 core cable price silicone wire cable

$0.10 - $0.50 / Meter

305.0 Meters



300V silicone rubber fiberglass braiding cable 16 18 20 22 24 26 AWG silicone electric wire

$0.05 - $1.00 / Meter

305.0 Meters



18 20 22 24 26 AWG Gauge High Temperature Heat Resistant Solid Copper Rubber Cable Silicone Wire

$0.09 - $1.00 / Meter

305.0 Meters



The AWM5107 450C Special electrical wires with nickel-plated copper High temperature Mica wire

$0.30 - $0.80 / Meter

305 Meters

Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Company profile
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Packing
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
Application
Generator Copper Core XLPE Insulated Wire UL3173 Oil Resistance Electric Cable
FAQ
How can I contact with your company? We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile What is your working time? Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00) We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question Do you provide free samples? Yes, we can provide a free sample for testing,buyer should bear all the shipping costs. What is your payment terms? T/T,L/C,D/A,D/P,Western Union,,Paypal What is the lead time? Usually sample lead time is 7 days after payment has been confirmed.
