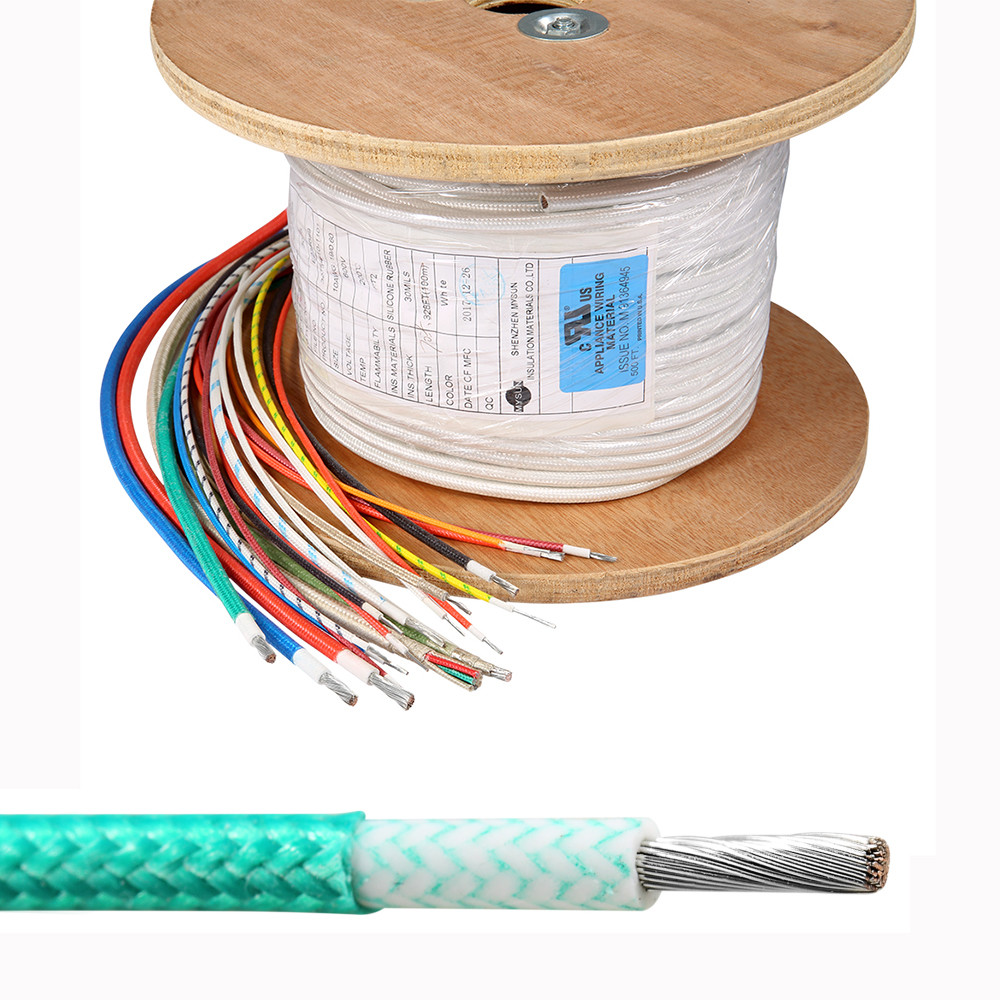

UL3122 Flexible Insulated Wire 16AWG Copper Conductor Fiberglass Braiding Cable

  • UL3122 Flexible Insulated Wire 16AWG Copper Conductor Fiberglass Braiding Cable
  • UL3122 Flexible Insulated Wire 16AWG Copper Conductor Fiberglass Braiding Cable
Place of Origin china
Brand Name MYSUN
Certification UL、VDE、CE、ROSH
Model Number UL3122
Minimum Order Quantity 305M
Price 0.01-0.1 USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-10working days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000000 meters per day
Product Details
Insulation Material Silicone Product Name Silicone Electrical Wire
Insulation Silicone Rubber Rated Voltage 300V
Name Insulation Electrical Wire Cable Material Tinned Copper
Standard UL758 Conductor Copper Core
Highlight

UL3122 Flexible Insulated Wire

,

16AWG Flexible Insulated Wire

,

Copper Conductor Fiberglass Braiding Cable
Leave a Message
Product Description

18 22 AWG electric wires 300V tinned copper silicone rubber fiberglass braiding cable motor generator electrical wires





Rated volatge:600V

Rated temperature:200C

Standard:UL3122

Applications:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.

Insulation:Silicone rubber

Conductor:Tinned copper

Size:16AWG



UL3135 demension:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.61 0.78 2.17 89.3 305/1000
22 7/0.254 0.77 0.78 2.33 56.4 305/1000
20 7/0.31 0.94 0.78 2.5 35.2 305/1000
18 7/0.39 1.19 0.78 2.75 22.2 305/1000
16 7/0.49 1.49 0.78 3.05 14 305/1000
24 11/0.16 0.61 0.78 2.17 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 26/0.16 0.94 0.78 2.5 35.2 305/1000
18 41/0.16 1.18 0.78 2.74 22.2 305/1000
16 26/0.254 1.49 0.78 3.05 14 305/1000
14 41/0.254 1.87 0.78 3.43 8.78 305/1000
12 19/0.47 2.63 0.78 3.92 5.53 305/1000
0.30mm² 12/0.18 0.71 0.78 2.27 59.78 305/1000
0.50mm² 20/0.18 0.92 0.78 2.48 40.1 305/1000
0.75mm² 30/0.18 1.13 0.78 2.69 26.7 305/1000
1.00mm² 40/0.18 1.31 0.78 2.87 20 305/1000
1.25mm² 50/0.18 1.46 0.78 3.02 14.35 305/1000
2.00mm² 41/0.254 1.87 0.78 3.43 8.78 305/1000
2.50mm² 50/0.254 2.08 0.78 3.64 7.16 305/1000


UL3122 Flexible Insulated Wire 16AWG Copper Conductor Fiberglass Braiding Cable 0

UL3122 Flexible Insulated Wire 16AWG Copper Conductor Fiberglass Braiding Cable 1

UL3122 Flexible Insulated Wire 16AWG Copper Conductor Fiberglass Braiding Cable 2

How can I contact with your company?

We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile



What is your working time?

Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00) We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question



Do you provide free samples?

Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.



What is your payment terms?

T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal



What is the lead time?

Usually sample lead time is 7 days after payment has been confirmed.



Place of Origin:
Guangdong, China
Brand Name:
MYSUN
Model Number:
UL3122
Type:
insulated
Application:
Electrical household appliances,Lights,Small motors
Conductor Material:
Copper
Conductor Type:
Tinned copper
Insulation Material:
silicone rubber
Product name:
Silicone electrical Wire
Conductor:
Copper Core
Insulation:
silicone rubber
Rated Voltage:
300V
Keyword:
300V Silicone Cable
Name:
Insulation Electrical Wire Cable
Rated Temperature:
200°C
Size:
26/24/22/20/18/16 AWG
Jacket:
silicone Jacket
Color:
Customer Requirements
