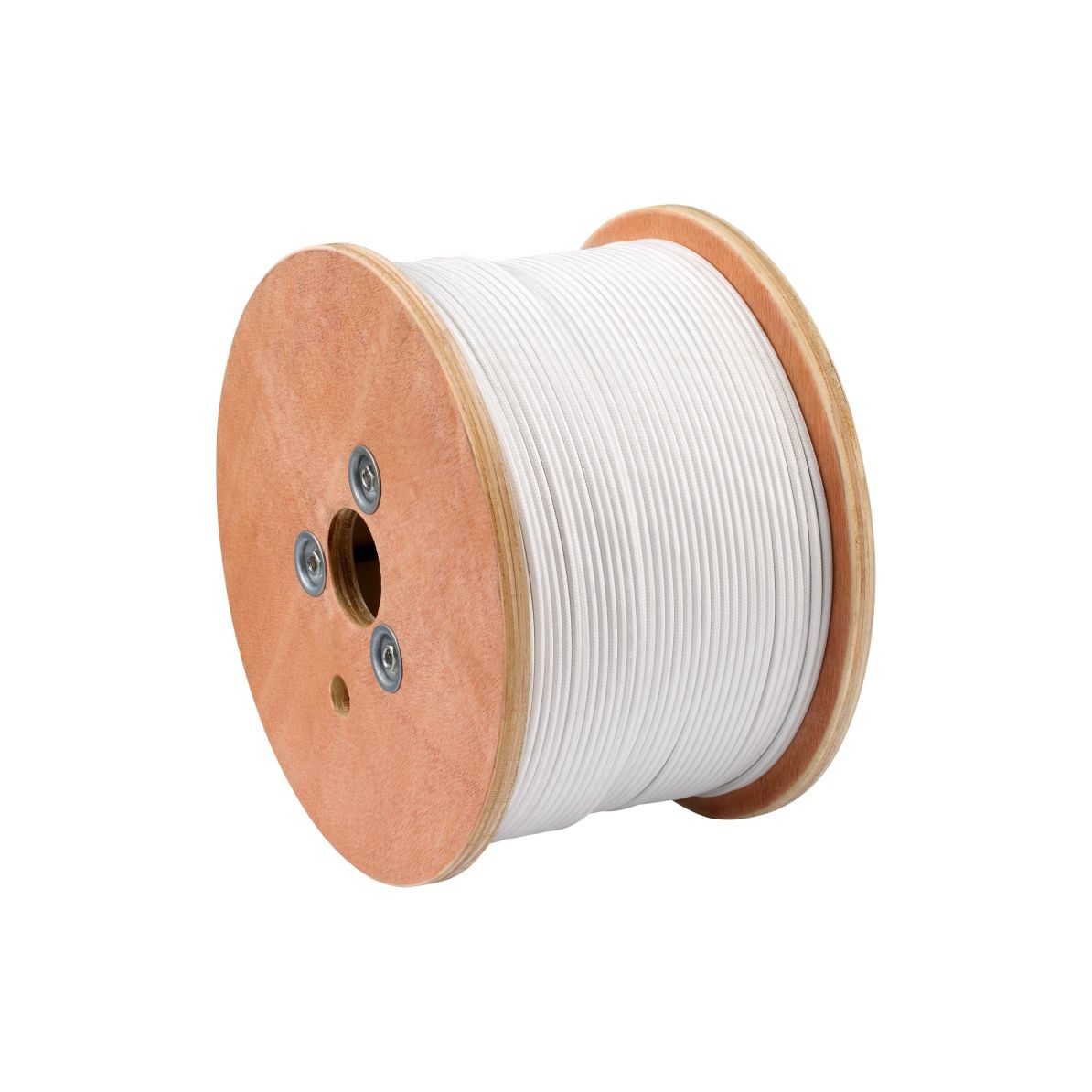

IATF Fiberglass Insulated Copper Wire 20AWG 600V UL3069 For Home Appliance
| Place of Origin | Guangdong ,China |
|---|---|
| Brand Name | MYSUN |
| Certification | UL |
| Model Number | UL3069 |
| Minimum Order Quantity | 3050meters |
| Price | 0.01-0.03USD/M |
| Packaging Details | 305M/roll,610M/roll,carton 32cm*32cm*32cm |
| Delivery Time | 7-15working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500000 meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | UL3069 | Insulation | Silicone Rubber |
|---|---|---|---|
| Conductor | Tinned Copper | Rated Voltage | 600V |
| Rated Temperature | 150°C | Applications | Home Appliance,lighting,heater,UAV,robot,industrial Power |
| Size | 26-20AWG | OD | 2.34-2.80 |
| Unit Length | 305/1000 | Standard | UL758 |
| Material | Silicone+Tinned Copper+Fiber Glass | Usage | Electrical Appliance |
| High Light | IATF Fiberglass Insulated Copper Wire,UL3069 Fiberglass Insulated Copper Wire,600V Fiberglass Braid Insulation Wire |
||
Product Description
20AWG Fiberglass Insulated Copper Wire UL3069 For home appliance
- Flexibility: silicone rubber insulation with fiberglass braided
- Maximum conductor resistance: 381 ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: 150°C
- Rated voltage: 300V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 20 AWG, 22 AWG,24AWg,26AWG
| Conductor | Insulation | Max.cond | Unit Length | |||
| resistance | (m)(Ft) | |||||
| Size | Construction | Diameter | Nominal Thickness | Diameter | (Ω/km) | |
| (AWG) | (No./mm) | (mm) | (mm) | (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.93 | 2.34 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 2.47 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 2.63 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.80 | 35.2 | ||
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3. What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
