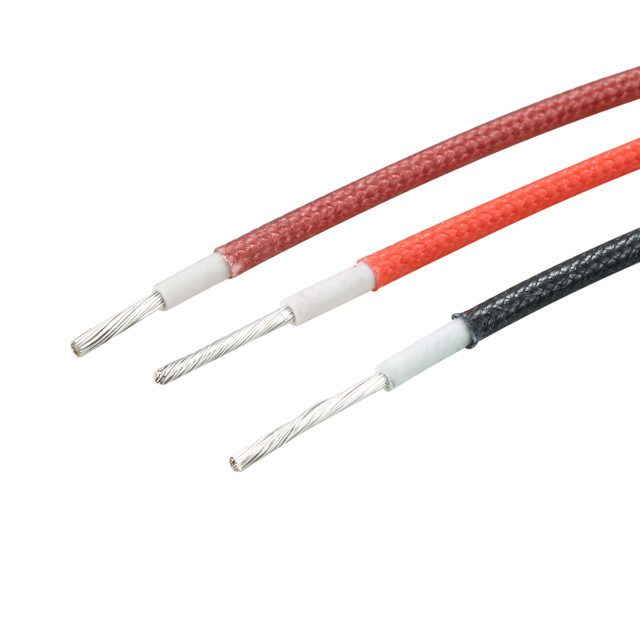

250C High Temperature Electrical Cable , 24 Awg Stranded Wire UL3252
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 600V | Temperature | 250C |
|---|---|---|---|
| Insulation | Silicone Rubber | Conductor | Nickel-plated Copper Wire |
| Color | All Colors Are Available | Standard | UL758 |
| Usage | Home Application,LED Lamp, Oven,industrial Machine | Size | 10-30awg |
| Name | High Temperature Wire | ||
| High Light | silicone rubber glass braid wire,high temperature stranded wire |
||
Product Description
Silicone fiberglass wire UL3252 electrical wire
Specifications:
Nominal voltage: 600V
Temperature range: 250C
Standard: UL 758
Conductor: Nickel-plated copper wire
Insulation: Silicone Rubber
Insulation: Fiber Glass
size:10-30awg
color:all colors are available
Product dimensions:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 30 | 7/0.1 | 0.3 | 1.15 | 2.6 | 361 | 610/2000 |
| 28 | 7/0.127 | 0.36 | 1.15 | 2.66 | 227 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 1.15 | 2.78 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.6 | 1.15 | 2.9 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.76 | 1.15 | 3.06 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 1.15 | 3.23 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.17 | 1.15 | 3.47 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.47 | 1.15 | 3.77 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 1.15 | 4.19 | 8.78 | 200/656 |
| 12 | 19/0.47 | 2.36 | 1.15 | 4.66 | 5.53 | 200/656 |
| 10 | 19/0.61 | 3.05 | 1.15 | 5.35 | 3.48 | 200/656 |
Silicone Wire with Fiberglass Braid
Providing Excellent Performance in High Temperature Applications
Silicone wires with fiberglass braid are single conductor, high temperature wires.
These electronic hook-up wires are designed to replace wires with plastic or rubber insulation in high temperature applications.
The term silicone refers to the insulation jacket provided in these wires.
The fiberglass braid is the outer covering, which protects the wire strands and insulation from high application temperatures.
The braid also helps in protecting the wires from abrasions.
Applications
This wire is specially recommended for various applications, including:
- Radiators
- Steel mills
- Electric motors
- Hot rolling mills
- Cooking surfaces
- Heating apparatus
- Industrial converters
- Ovens and ventilators
- Household appliances
- Metallurgical facilities
- Civil and industrial plants
- Lighting (halogen lamps, etc.)
- High voltage electrical cabins and circuits
If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet your needs. If required, We can also aid you with custom manufactured wires and cables.
Why choose us
Point 1: QUALITY FIRST
We always operates on the principle that never give up the quality at low price and change the world by clean energy.
Point 2: FACTORY PRICE
We are manufacturer specializing in producing wire & cable and have 20 years leading experience in manufacturing wires.
We can offers you facfory price.
Point 3: FASTEST LEAD TIME
We have high production capacity. 18 productions lines. 2418 machiines. 3,000,000m/day
So our lead time is the fastest.
Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
