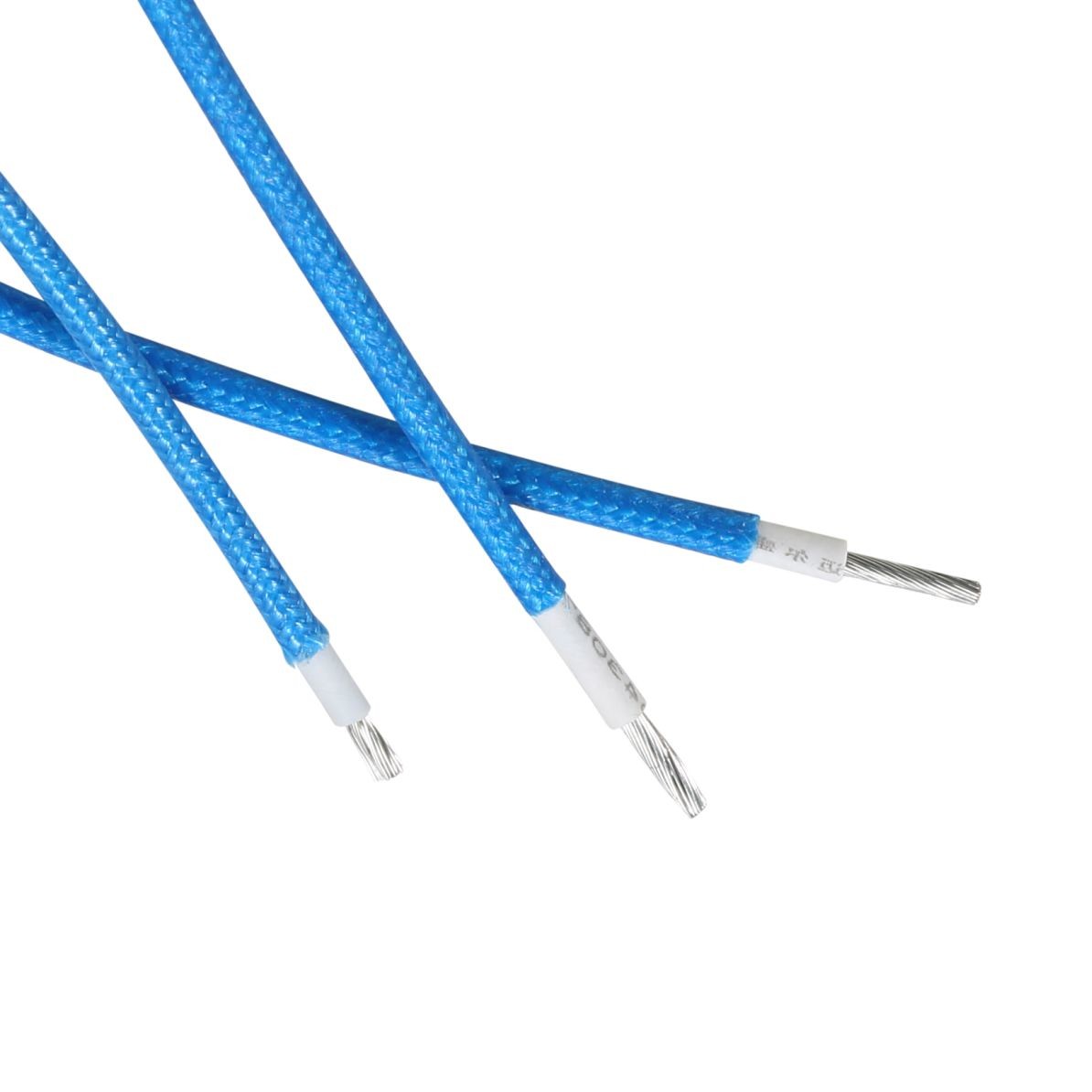

UL3172 FT2 Tinned Copper Insulation Wire 600V 200C Stranded 18-26AWG

  • UL3172 FT2 Tinned Copper Insulation Wire 600V 200C Stranded 18-26AWG
  • UL3172 FT2 Tinned Copper Insulation Wire 600V 200C Stranded 18-26AWG
Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 1.00mm 2AWG Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
Material Silicone+Tinned Copper Insulation Fiberglass
Size 18-26AWG Useage Home Appliance
Highlight

FT2 Tinned Copper Insulation Wire

,

UL3172 Tinned Copper Insulation Wire

,

26AWG High Temperature Insulation Wire
Leave a Message
Product Description

high temperature appliance wire FT2 UL3172 Silicone Insulation Wire 600V 200C

UL3172 specification:

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 600 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG

UL3172 demesion:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thincknesss
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.95 2.38 150 305/1000
24 7/0.2 0.61 0.95 2.51 94.2
22 7/0.254 0.77 0.95 2.67 59.4
20 7/0.31 0.94 0.95 2.84 36.7
18 7/0.39 1.19 0.95 3.09 23.2

UL3172 FT2 Tinned Copper Insulation Wire 600V 200C Stranded 18-26AWG 0

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
