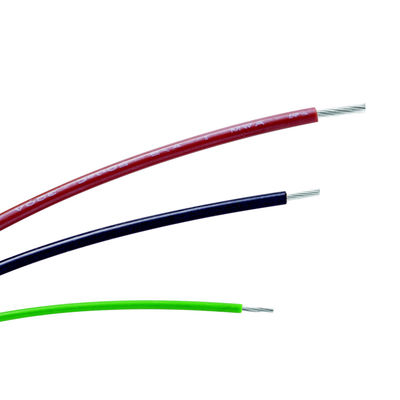

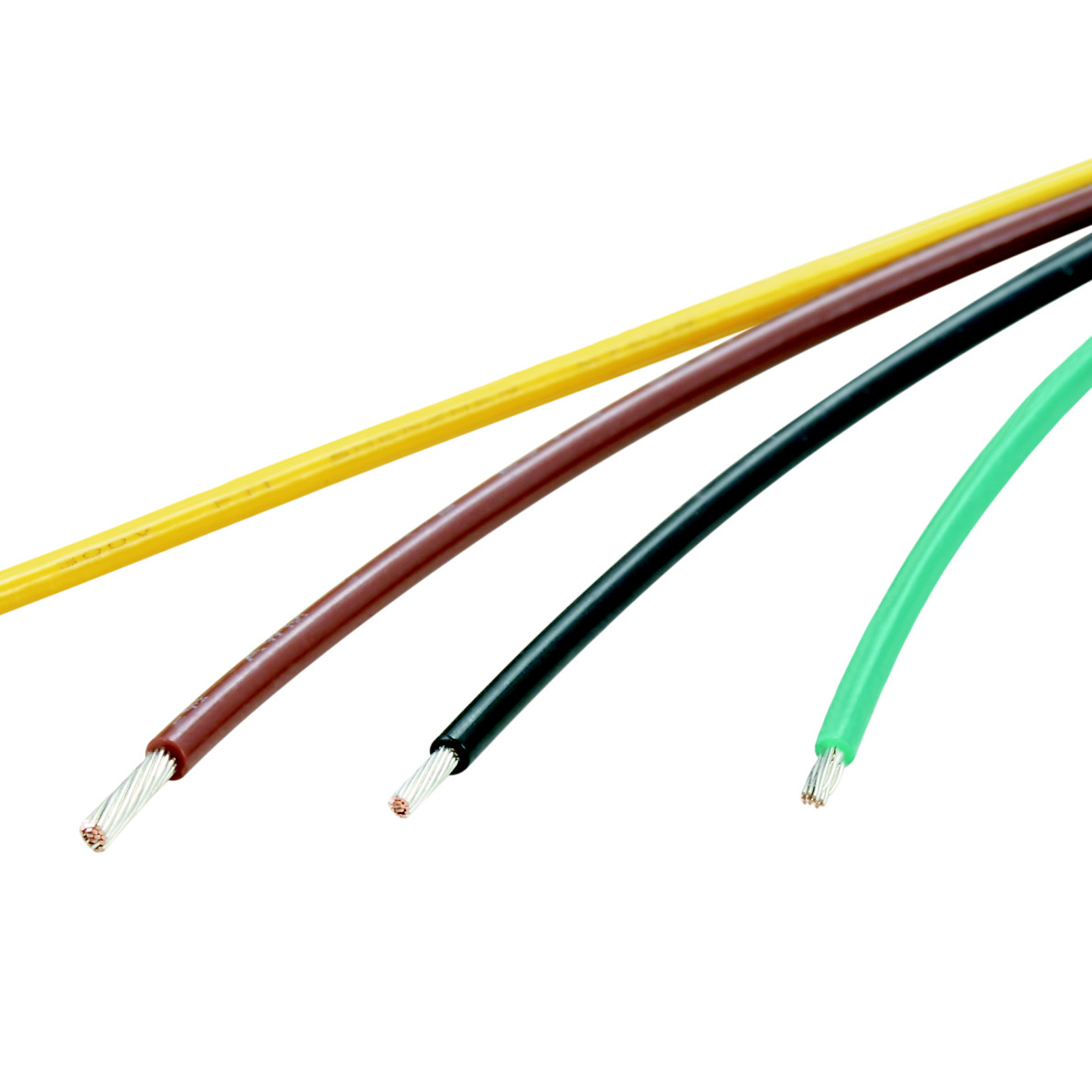

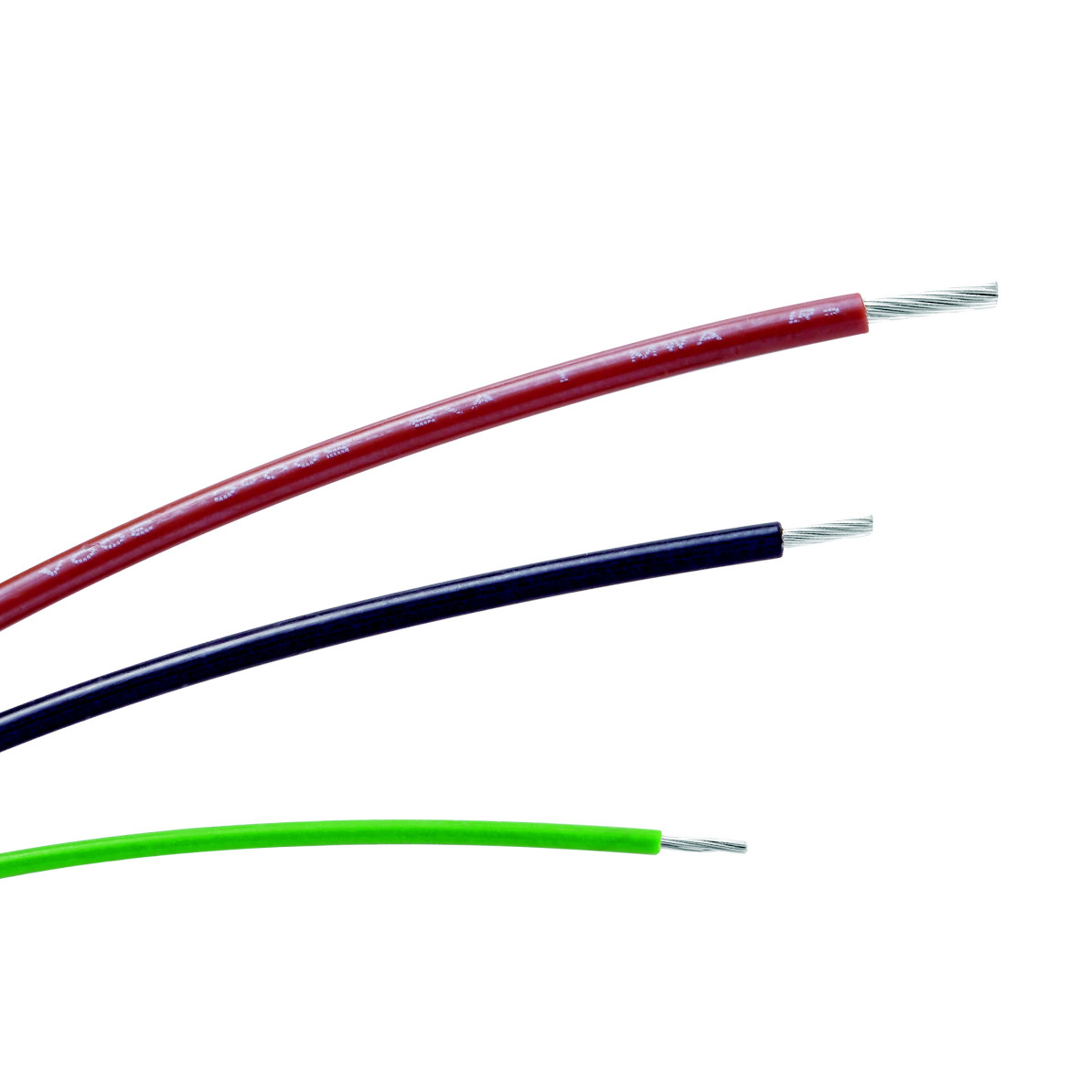

UL10362 E239689 Electrical Hook Up Wire Tinned Copper PFA Insulation Wire

  • UL10362 E239689 Electrical Hook Up Wire Tinned Copper PFA Insulation Wire
  • UL10362 E239689 Electrical Hook Up Wire Tinned Copper PFA Insulation Wire
  • UL10362 E239689 Electrical Hook Up Wire Tinned Copper PFA Insulation Wire
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL10362
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL10362 PFA Insulation Heating Resistance Electric Wire Color All Colors
Conductor Nickel-plated Copper Insulation PFA
Rated Voltage 600V Rated Temperature 250C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
Material PFA+Tinned Copper Standard UL758
High Light

UL10362 Electrical Hook Up Wire

,

E239689 Electrical Hook Up Wire

,

Tinned Copper PFA Insulation Wire
Leave a Message
Product Description

E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance

Specifications:
Nominal voltage: 600V
Temperature range: 250C
Standard: UL 758
Conductor: Nickel-plated copper wire
Insulation:PFA


Lead Time :

Quantity(Meters)1 - 6100>6100
Est. Time(days)7To be negotiated






ConductorInsulationMax.condUnit Length
resistance(m)(Ft)
SizeConstructionDiameterNominal ThicknessDiameter(Ω/km)
(AWG)(No./mm)(mm)(mm)(mm)
327/0.080.240.350.94563610/2000
307/0.100.300.351.00361610/2000
287/0.120.360.351.08227610/2000
267/0.160.480.351.18143610/2000
247/0.200.600.351.3089.3610/2000
2219/0.150.750.351.4556.4305/1000
2019/0.1850.930.351.6335.2305/1000
1819/0.2351.170.351.8722.2305/1000
1619/0.301.500.352.2014305/1000
1419/0.371.850.352.558.78305/1000
1219/0.472.350.353.055.53305/1000
1037/0.433.000.353.703.476305/1000
837/0.543.780.514.802.16customized
737/0.604.200.515.221.716
637/0.684.760.515.781.361
537/0.765.320.806.921.079
437/0.866.020.807.620.8859
37/2.216.630.808.230.6788
27/2.487.440.809.040.5384
17/2.788.341.2010.740.4268
07/3.209.601.2012.000.3367
2/07/3.5710.711.2013.110.267
3/07/3.9411.821.2014.220.2119
4/07/4.4213.261.2015.660.168


Benefits of silicone rubber insulated wireSilicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:



  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated
wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet
your needs. If required, We can also aid you with custom manufactured wires and cables.

--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012



Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
