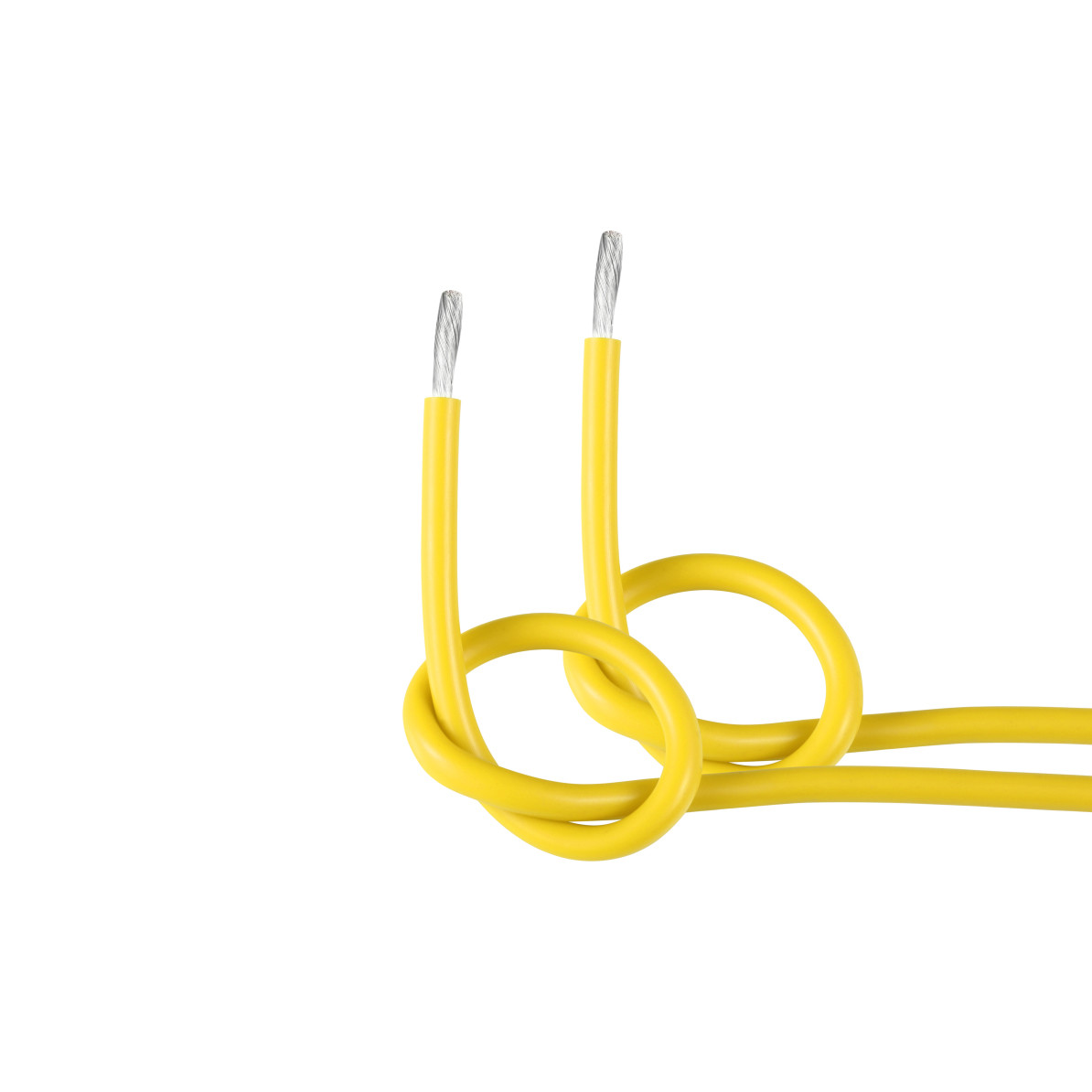

UL3512 Flexible Silicone Insulated Wire VDE XLPE 200C 600V 305m/ Roll

Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3512
Minimum Order Quantity 3050meters
Price 0.1-1.5USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-15working days
Payment Terms L/C, D/A, , T/T, Western Union, MoneyGram
Supply Ability 5000000M/day
Product Details
Insulation Silicone Rubber Rated Voltage 600V
Rated Temperature 200C Standard UL758
Appliacation Home Appliance Conductor Tinned Copper
Package 305m/roll Usage Home Appliance
Color Black White Yellow
High Light

UL3512 Flexible Silicone Insulated Wire

,

Silicone Insulated Wire VDE XLPE

,

200C 600V Insulated Copper Wire

Leave a Message
Product Description

silicone coated wire 0.5mm-4mm UL3512 tinned copper wire blue red white
rated voltage:600V
rated temperature:200C
Standard:UL758
Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
Color:white,black,red,brown,yellow,blue,green,yellow/green

UL3512 demesion:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
0.5 20/0.18 0.95 0.78 2.51 40.1 305/1000
0.75 30/0.18 1.17 2.73 26.7
1 40/0.18 1.3 2.86 20
1.25 50/0.18 1.5 3.06 14.35
1.5 30/0.25 1.6 3.16 13.7
2 41/0.254 1.85 3.41 8.78
2.5 50/0.25 2.06 3.62 7.16
3 60/0.25 2.3 3.86 6.5
4 56/0.30 2.62 4.18 4.7


Benefits of silicone rubber insulated wireSilicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:

UL3512 Flexible Silicone Insulated Wire VDE XLPE 200C 600V 305m/ Roll 0




  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated
wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet
your needs. If required, We can also aid you with custom manufactured wires and cables.
UL3512 Flexible Silicone Insulated Wire VDE XLPE 200C 600V 305m/ Roll 1
UL3512 Flexible Silicone Insulated Wire VDE XLPE 200C 600V 305m/ Roll 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.

2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.

3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
