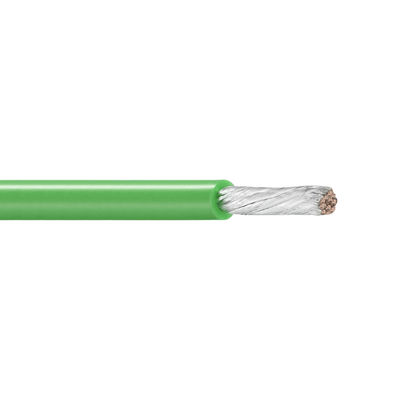

0.75mm2 Stranded Silicone Rubber Insulated Wire 180C 41/0.254 VDE H05S-K
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Type | Stranded | Insulation Material | Silicone Rubber Extruded |
|---|---|---|---|
| Conductor Material | Tinned Copper | Type | Insulated |
| Rated Voltage | 450/750V | Cross Section | 0.75mm2 |
| Core | Single | Packing | 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll |
| Rated Temperature | 180C | Material | Silicone+Tinned Copper |
| Color | Requirment | Standard | VDE 0282-3 |
| Section | 0.5-2.5 | ||
| Highlight | 0.75mm2 Stranded Silicone Rubber Insulated Wire,Silicone Rubber Insulated Wire 180C,VDE H05S-K Flexible Hook Up Wire |
||
Product Description
2.00mm2AWG 41/0.254 VDE H05S-K 180C Silicone Rubber Insulated wire
Rated Voltage:450/750V
Rated Temperature:180C
Standard:VED 0282-3
Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
color:Requirament
| Conductor | Insulation | Max Cond resistance (ohms/m) | Unit length (m)(F) | |||
| Section | Construction | Diameter | Nominal Thickness | Diameter | ||
| (mm²) | (NO./mm) | (mm) | (mm) | (mm) | ||
| 0.50 | 20/0.18 | 0.92 | 0.80 | 2.52 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.80 | 2.73 | 26.7 | 305/1000 |
| 1.00 | 40/0.18 | 1.31 | 0.80 | 2.91 | 20 | 305/1000 |
| 1.25 | 50/0.18 | 1.46 | 0.80 | 3.06 | 14.35 | 305/1000 |
| 1.50 | 30/0.254 | 1.60 | 0.90 | 3.40 | 13.7 | 305/1000 |
| 2.00 | 41/0.254 | 1.87 | 0.90 | 3.67 | 8.78 | 305/1000 |
| 2.50 | 50/0.254 | 2.08 | 1.00 | 4.08 | 7.16 | 305/1000 |
