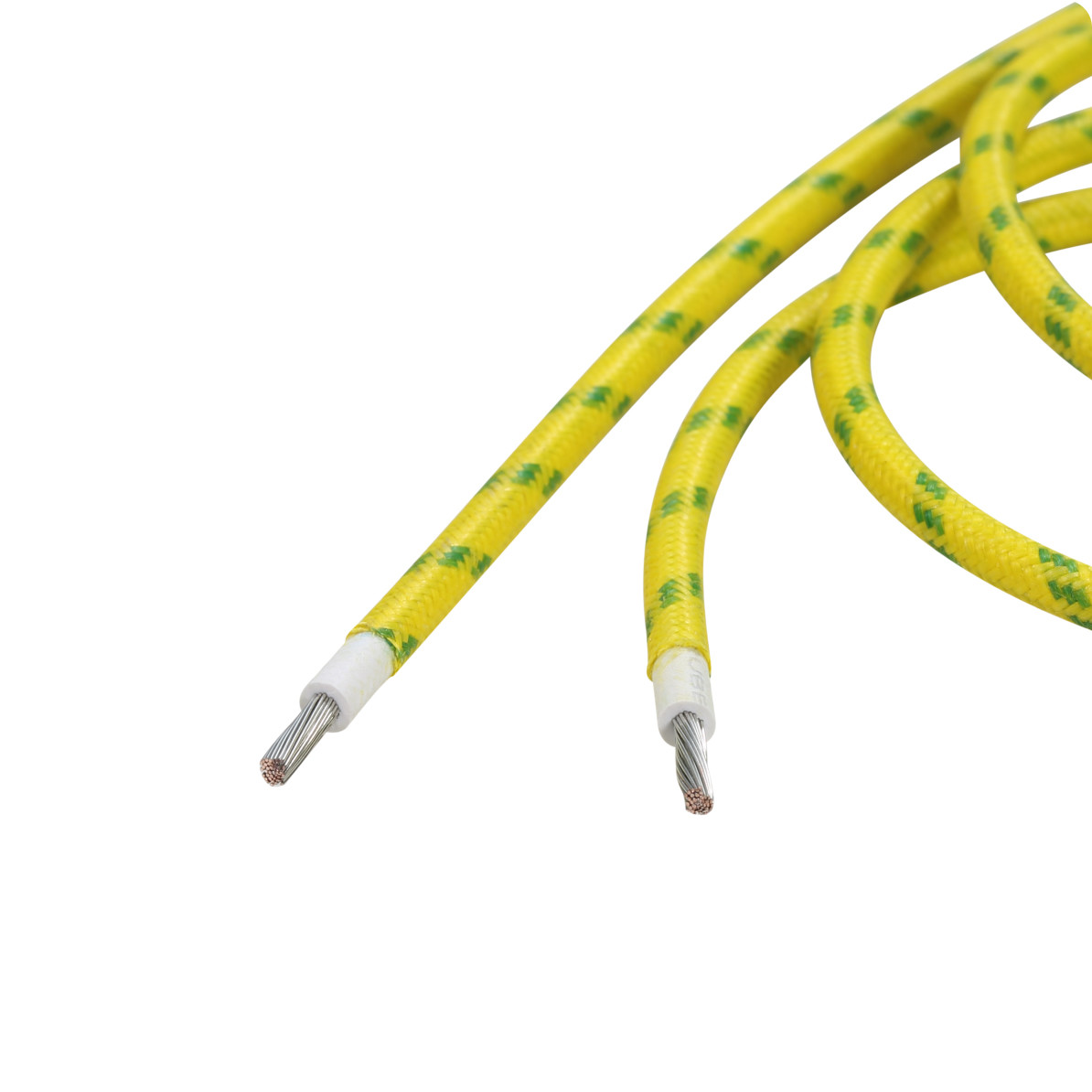

200C UL3122 Fiberglass Insulation Electrical Wire 2.66mm Dia For Heating Lead

  • 200C UL3122 Fiberglass Insulation Electrical Wire 2.66mm Dia For Heating Lead
Place of Origin Guangdong
Brand Name Msyun
Certification UL/cUL
Model Number AWM3122
Minimum Order Quantity 3050meters
Price Negotiable
Packaging Details 305 Meters per Roll and 7 Rolls per Carton
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability 800000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Fiber Glass And Silcicone Rubber Conductor Tinned Copper
Conductor Type Stranded Conductor Construction 7/0.16 1/0.81 11/0.16 17/0.16 26/0.16 41/0.16 20/0.18 40/0.18
Diameter 1.68-2.66mm Max.Con143-14 Ω/KMd Resistance 5.64-150
Rated Voltage 600V Standard UL758
Application Home Appliance,headlamp And Industrical Machines Color 8 Colors
Flammability Rating FT-2 Package 305Meters Per Roll
Temperature 200C
High Light

UL3122 Fiberglass Insulation Electrical Wire

,

200C Fiberglass Insulation Electrical Wire

,

2.66mm Dia Fiberglass Braided Wire
Leave a Message
Product Description

UL3122 Fiberglass insulation electrical Wire for Heating Lead 300V with red black



Specifications:

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Conductor: Tinned copper wire

Insulation: Silicone Rubber

Insulation: Fiber Glass

Application : electro thermal products



Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m) (Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
26 7/0.16 0.48  0.60  1.68  143 305/1000
24 7/0.20 0.61  1.81  89.3
22 7/0.254 0.77  1.97  56.4
20 7/0.31 0.94  2.14  35.2
18 7/0.39 1.19  2.39  22.2
16 7/0.49 1.49  2.69  14
24 1/0.50 0.50  0.65  1.80  89.3 305/1000
22 1/0.65 0.65  1.95  56.4
20 1/0.81 0.81  2.11  35.2
18 1/1.02 1.02  2.32  22.2
16 1/1.20 1.20  2.50  14
24 11/0.16 0.61  0.60  1.81  89.3 305/1000
22 17/0.16 0.76  1.96  56.4
20 26/0.16 0.94  2.14  35.2
18 41/0.16 1.18  2.38  22.2
16 26/0.254 1.49  2.69  14
0.30mm² 12/0.18 0.71  0.60  1.91  59.78 305/1000
0.50mm² 20/0.18 0.92  2.12  40.1
0.75mm² 30/0.18 1.13  2.33  26.7
1.00mm² 40/0.18 1.31  2.51  20
1.25mm² 50/0.18 1.46  2.66  14.35







OUR PRODUCTION

200C UL3122 Fiberglass Insulation Electrical Wire 2.66mm Dia For Heating Lead 2

ABOUT US

200C UL3122 Fiberglass Insulation Electrical Wire 2.66mm Dia For Heating Lead 3

.Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL ,CCC,VDE,CSA certificate.
