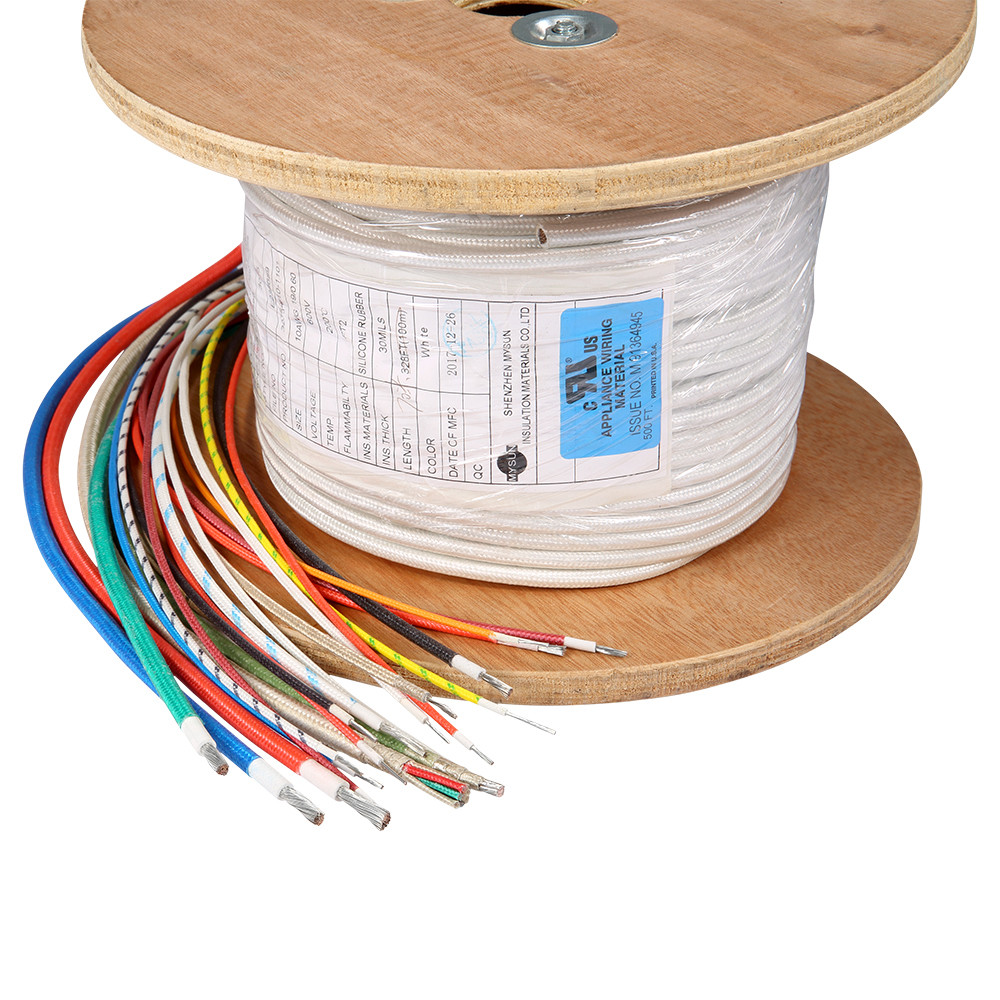

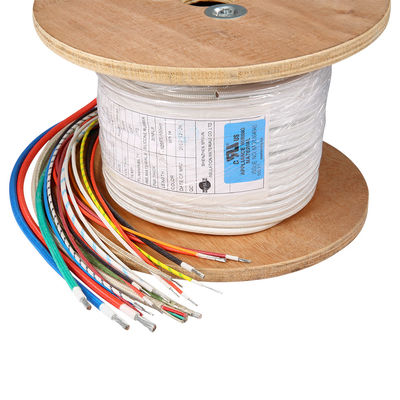

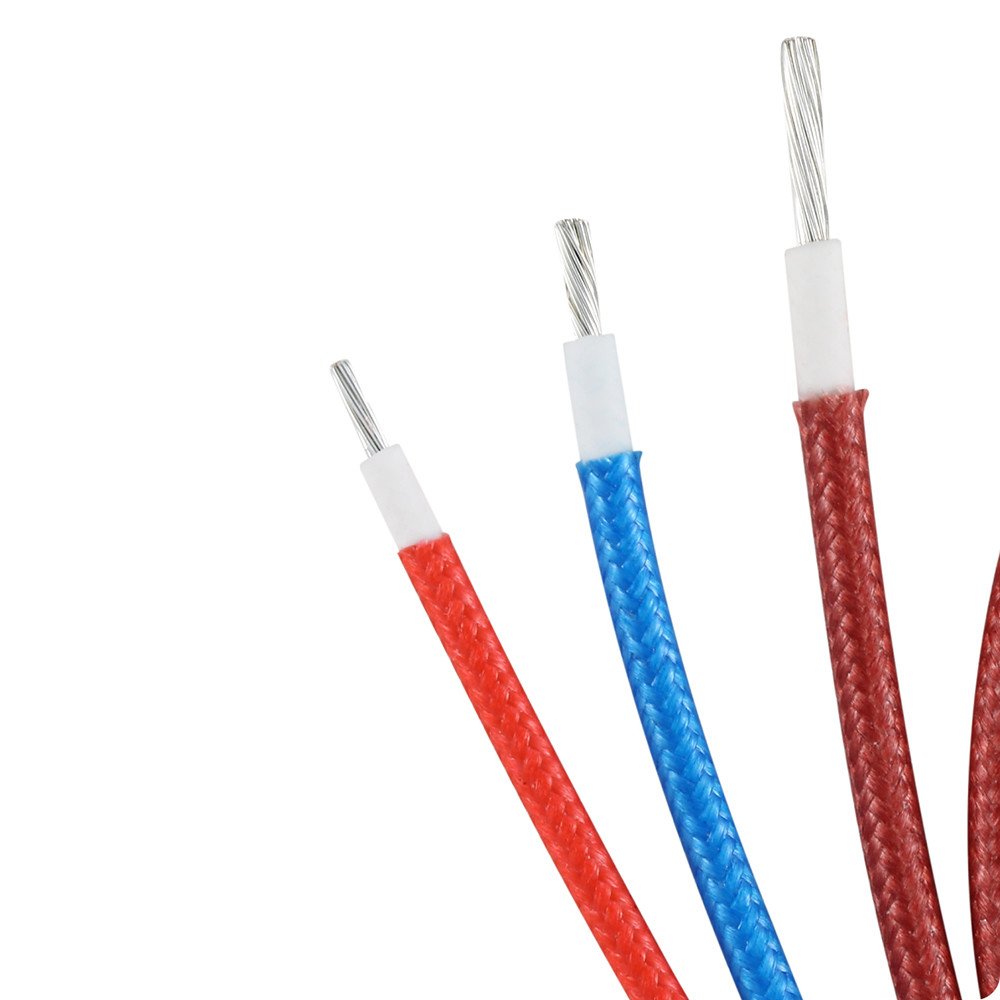

UL3122 Tinner Copper Insulated Wires 300V 200℃ UL758 For Linghting

Place of Origin:

Guangdong, China

Brand Name:

Mysun

Model Number:

UL3122

Type:

insulated

Application:

home appliance,lighting,heater,motor,generator,robot, home appliance, industrial heater

Conductor Material:

Copper

Conductor Type:

Tinned copper

Insulation Material:

silicone rubber, Silicone rubber

standard:

UL758

color:

all colours

MOQ:

305/610Meters

Rated Voltage:

300V

Rated Temperature:

200℃

Product name:

Copper Core silicone Insulation Wire

Conductor:

TInned copper

Certification:

UL RoHS







Conductor			Insulation		Max.Cond Resistance	Unit length
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	(Ω/KM)	(M)(Ft)
26	7/0.16	0.48	0.60	1.68	143	305/1000
24	7/0.20	0.61		1.81	89.3
22	7/0.254	0.77		1.97	56.4
20	7/0.31	0.94		2.14	35.2
18	7/0.39	1.19		2.39	22.2
16	7/0.49	1.49		2.69	14
24	1/0.50	0.50	0.65	1.80	89.3	305/1000
22	1/0.65	0.65		1.95	56.4
20	1/0.81	0.81		2.11	35.2
18	1/1.02	1.02		2.32	22.2
16	1/1.20	1.20		2.50	14
24	11/0.16	0.61	0.60	1.81	89.3	305/1000
22	17/0.16	0.76		1.96	56.4
20	26/0.16	0.94		2.14	35.2
18	41/0.16	1.18		2.38	22.2
16	26/0.254	1.49		2.69	14
0.30mm²	12/0.18	0.71	0.60	1.91	59.78	305/1000
0.50mm²	20/0.18	0.92		2.12	40.1
0.75mm²	30/0.18	1.13		2.33	26.7
1.00mm²	40/0.18	1.31		2.51	20
1.25mm²	50/0.18	1.46		2.66	14.35



MYSUN Wire Features :























Certifications:

Since starting production in 2002, MYSUN has passed product authentication, including UL, cUL, VDE, CSA and CCC. Also got ISO9001 quality management system in 2005. In order to provide better service, MYSUN passed ISO14001 environment management system while completing its revision changing of ISO9001 in the year



Test Equipment:



"Quality is guarantee for existence" is the guideline that MYSUN always uphold. Advanced manufacturing and testing equipment, selected raw materials, a sound management system, fully guarantee the reliability of the products.



Why choose MYSUN?
1. Full experience of 20 years in manufacturing high temperature cables/wires
2. Strict quality inspection of ISO9001 quality management, ISO14001 and IATF14969 system
3. Certifications for our products including UL, cUL, CSA, VDE,CCC, ROHS, REACH etc.
4. Free samples(in stock)
5. Delivery in one week for your goods
6. Several different payment methods,such as T/T,Western Union and L/C
7. Strong R&D Team to design and test products
8. Easy one-stop purchasing
9. Quick after-sale technical advice and guidance





Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days



Customized order: 10-15 working days







2010 and successfully obtained IATF16949 certificate in 2015. The complete quality guarantee system and advanced testing equipment provide high class products.
