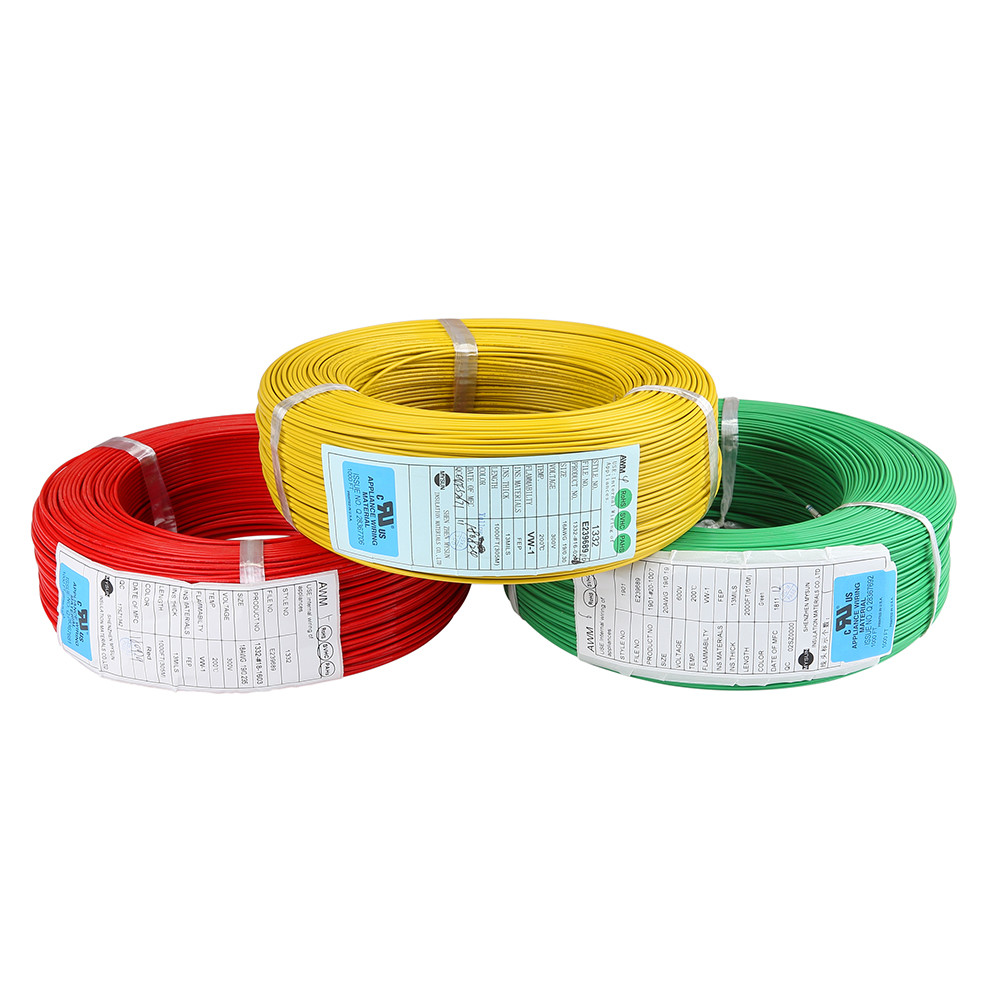

VDEH05S-K CCC Silicone Rubber Insulation Wire 450 750V 180C For Electric
| Place of Origin | China |
|---|---|
| Brand Name | MYSUN |
| Certification | UL/cUL/CCC/CE/RoHS/SGS |
| Model Number | VDE H05S-K |
| Minimum Order Quantity | 3050meters |
| Price | 0.06~0.48USD per M |
| Packaging Details | Standard packge: cardboard box Accept custom-made. |
| Delivery Time | 7-15 working day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 450/750V | Rated Temperature | 180C |
|---|---|---|---|
| Applications | Heater/motor&generator/UAV/robot/industrial Power Etc | Section | 0.50-2.50mm2 |
| Type | Insulated | Color | Requirement |
| Standard | VDE 0282-3 | Conductor | Silicone Rubber |
| Packing | 305/roll | Insulation | Silicone Rubber |
| High Light | VDEH05S-K Silicone Rubber Insulation Wire,CCC Silicone Rubber Insulation Wire,750V 180C Fiberglass Braided Wire |
||
Product Description
Silicone rubber insulation VDEH05S-K Tinner copper conductor 450/750V/180C for electric appliance/lighting wires
VDE H05S-k Specifications:
Nominal voltage:450/750V
Temperature range: 180℃
Standard: VDE 0282-3
Insulation: Silicone Rubber
Conductor: Tinner copper
Application
Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 0.5 | 20/0.18 | 0.75 | 0.8 | 2.52 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.8 | 2.73 | 26.7 | |
| 1 | 40/0.18 | 1.3 | 0.8 | 2.91 | 20 | |
| 1.25 | 50/0.18 | 1.5 | 0.8 | 3.06 | 14.35 | |
| 1.5 | 30/0.25 | 1.6 | 0.9 | 3.4 | 13.7 | |
| 2 | 41/0.254 | 1.85 | 0.9 | 3.67 | 8.78 | |
| 2.5 | 50/0.25 | 2.06 | 1 | 4.08 | 7.16 | |
Product Description
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
