UL758 Fiberglass Braided Insulated Copper Cable 3068 Silicone Rubber 600v VDE

Place of Origin Guangdong,China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3068
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Green
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 600v
Rated Temperature 150C Size 20/22/24/26AWG
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Silicone Rebber + Fibber Glass
Type Insulated Max.Cond Resistance 14.35 Ω/KM
Construction 7/0.16
High Light

Fiberglass Braided Insulated Copper Cable

,

UL758 Braided Insulated Copper Cable

,

600v VDE Braided Electrical Wire

Leave a Message
Product Description

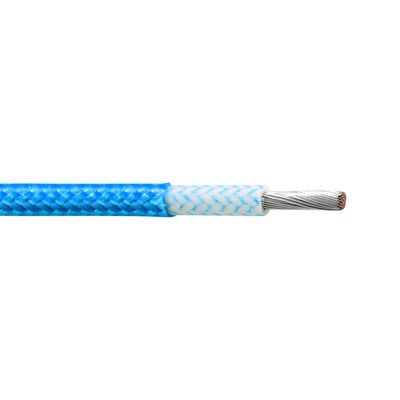

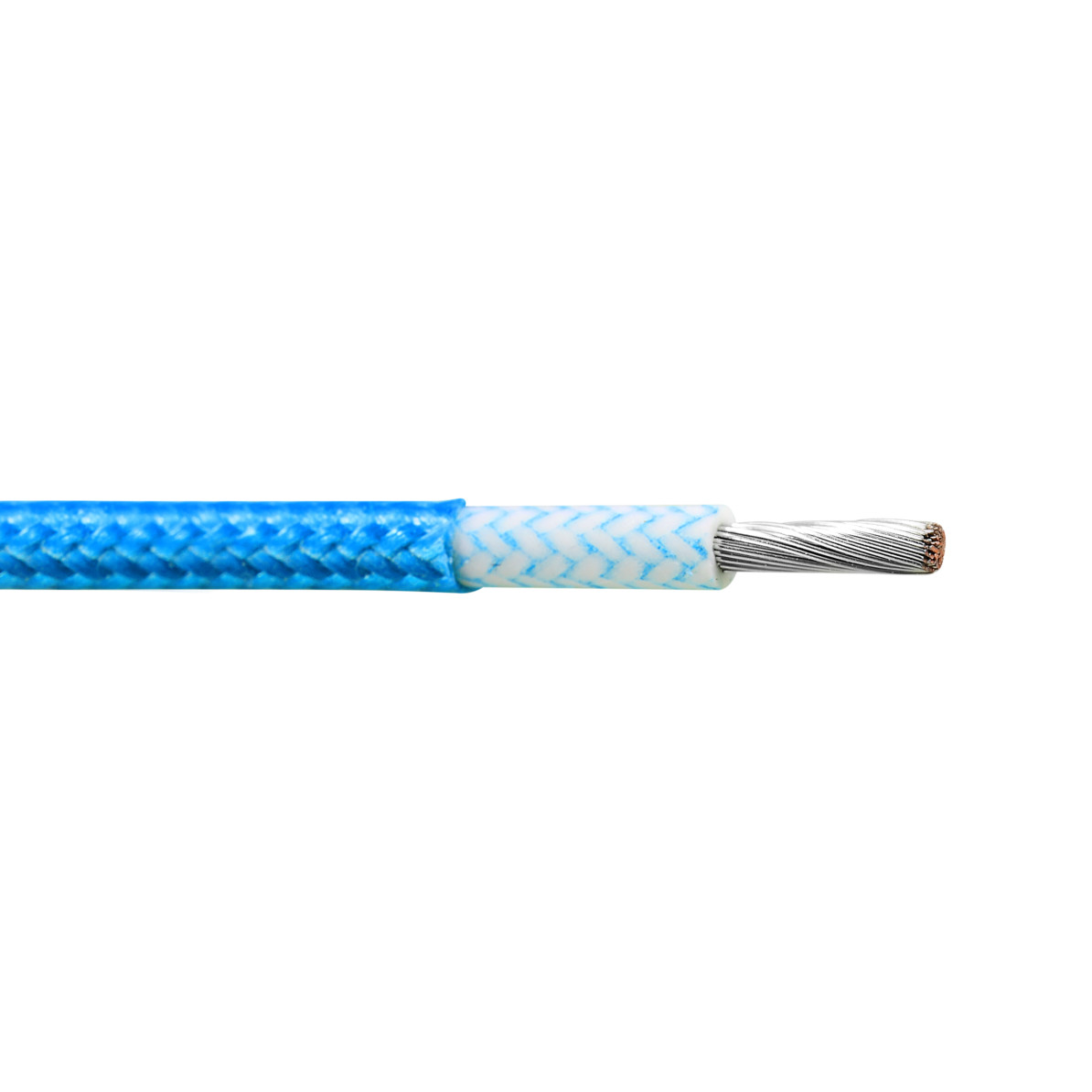

3068 Silicone Rubber Fiberglass Braided Heating insulated copper cable braided electrical wire



 UL 3068  Specifications:

Nominal voltage:600V

Temperature range: 150℃

Standard: UL758

Insulation: Silicone Rubber + Fibber glass

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.6 1.5 361 610/1000
28 7/0.127 0.38 0.6 1.58 227 610/1000
26 7/0.16 0.48 0.6 1.68 143 610/1000
24 7/0.20 0.61 0.6 1.81 89.3 305/1000
22 7/0.254 0.77 0.6 2.14 56.4 305/1000
20 7/0.31 0.94 0.6 2.39 35.2 305/1000
18 7/0.39 1.19 0.6 2.73 22.2 305/1000
16 7/0.49 1.49 0.6 2.69 14 305/1000




ur Product



UL758 Fiberglass Braided Insulated Copper Cable 3068 Silicone Rubber 600v VDE 0



Product Description



UL758 Fiberglass Braided Insulated Copper Cable 3068 Silicone Rubber 600v VDE 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL758 Fiberglass Braided Insulated Copper Cable 3068 Silicone Rubber 600v VDE 2
