XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black

  • XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black
  • XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black
  • XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black
  • XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3173
Minimum Order Quantity 3050meters
Price 0.06-0.8USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-10 working days
Payment Terms L/C, D/A, , T/T, Western Union, MoneyGram
Supply Ability 500000 meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation XLPE Conductor Tinned Copper
Rated Voltage 600V Rated Temperature 125C
SIze 26-9AWG Color Black Blue Brown Yellow Green Red White
Standard UL758 Application Generator
Diameter 2.04-4.92 Package 305m/roll,610m/roll
High Light

Oil Resistance XLPE Insulation Wire

,

CCC High Temperature XLPE Wire

,

Tinned Copper Fiberglass Braided Wire
Leave a Message
Product Description



UL3173 specifciation:

1. Rated voltage:600V

2. Rated temperature:125C

3. Standard:UL758

4. Insulation:XLPE

5. Conductor:Tinned copper

6. Appliacation:Widely used in home appliance,new energy automobile,lighting,heater,motor&generator,UAV,robot,industrial power etc.

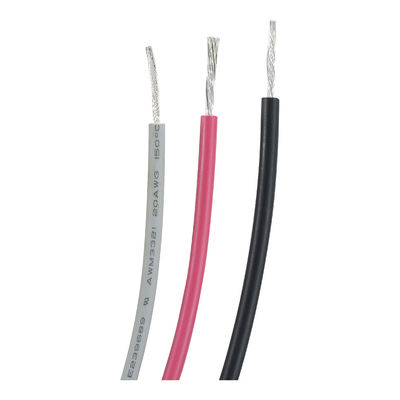

XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black 0



UL3173 demesion:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 11/0.16 0.60 2.16 89.3
22 17/0.16 0.76 2.32 56.4
20 21/0.18 0.94 2.49 35.2
18 16/0.254 1.18 2.73 22.2
16 26/0.254 1.50 3.06 14
14 41/0.254 1.89 3.45 8.78
12 65/0.254 2.37 3.93 5.53
10 105/0.254 3.02 4.58 3.476
9 133/0.254 3.36 4.92 2.73



Advanges of UL3173 :



  • aging resistance
  • good soft bending performance
  • can be wound for use
  • long service life

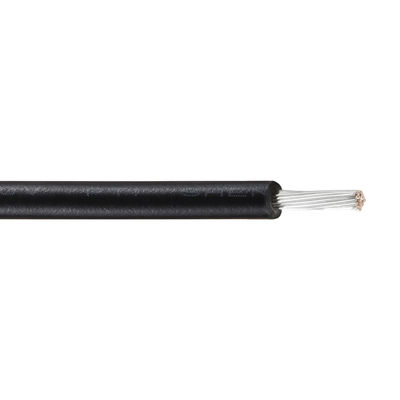

XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black 1

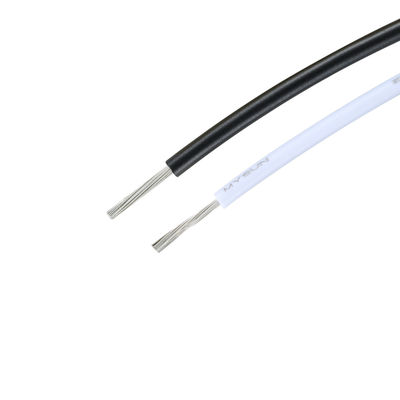

XLPE Insulated Wire UL3173 Oil Resistance Electric Cable For Generator Use Black 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
