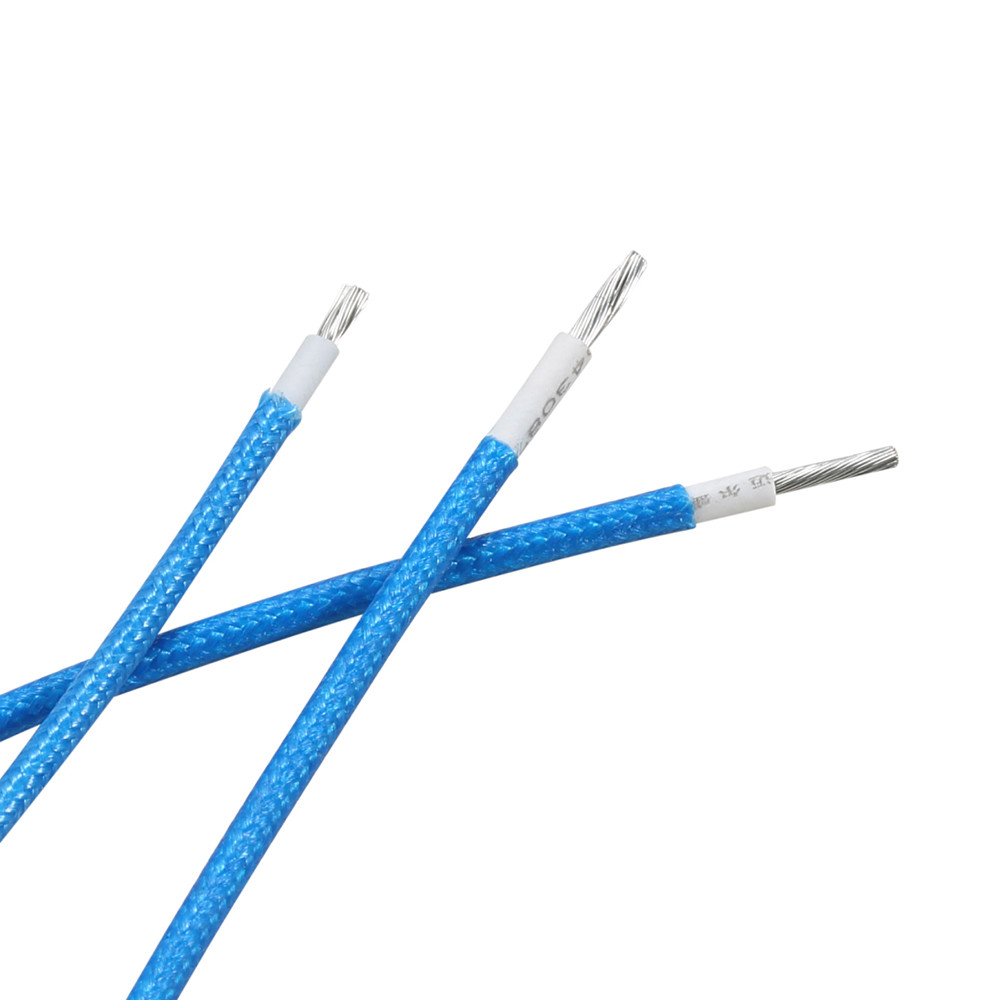

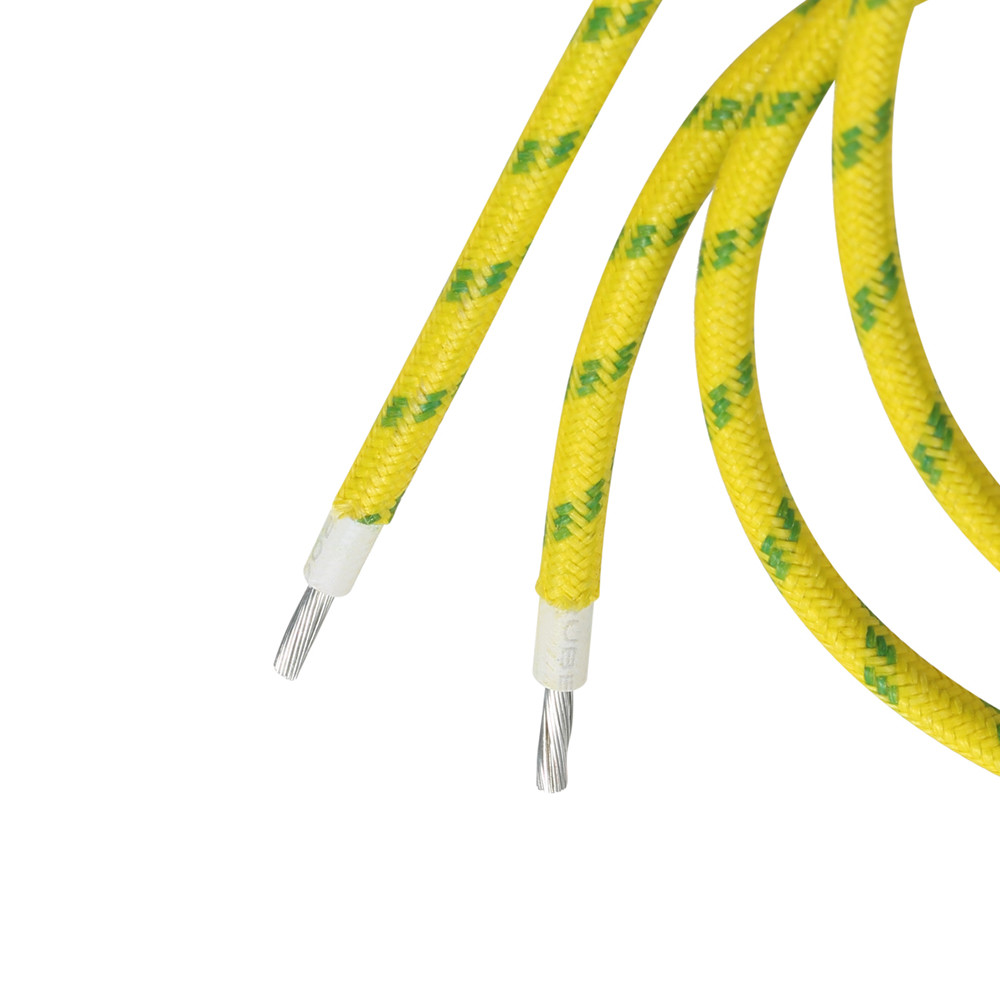

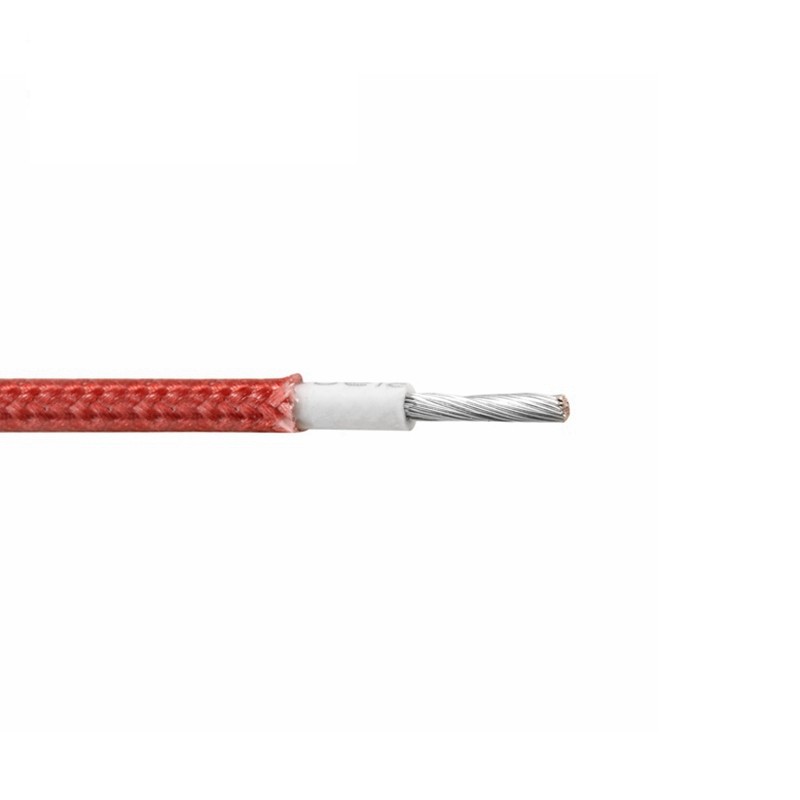

UL3122 Fiberglass Braided Wires Silicone Rubber Insulation 305m/Roll

  • UL3122 Fiberglass Braided Wires Silicone Rubber Insulation 305m/Roll
  • UL3122 Fiberglass Braided Wires Silicone Rubber Insulation 305m/Roll
  • UL3122 Fiberglass Braided Wires Silicone Rubber Insulation 305m/Roll
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3122
Minimum Order Quantity 3050meters
Price 0.1-1.5USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-15working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model UL3122 Insulation Silicone Rubber
Jacket Fiberglass Conductor Tinned Copper
Rated Temperature 200C Rated Voltage 300V
Standard UL758 Application Home Appliance,lighting,heater,UAV,robot
Color Black,white,yellow,blue,red Package 305m/roll
High Light

Fiberglass Braided Wires 305m/roll

,

UL3122 Fiberglass Braided Wires

,

Copper Silicone Rubber Insulated Wire
Leave a Message
Product Description

Install easily electric wire UL3122 silicone rubber fiberglass braided wires and cables red



UL3122 specification

rated voltage:300V

Rated temperature:200C

Standard:UL758

Insulation:silicone rubber

Insulation:fiber glass

Conductor:tinned copper

Applications:Home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.



UL3122 demesion:

UL3122
Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35

UL3122 Fiberglass Braided Wires Silicone Rubber Insulation 305m/Roll 0

UL3122 silicone rubber wires' advantage:

  • Can be used continuously at temperatures up to 200 degrees.
  • Resistant to many solvents / lubricants / chemicals etc.
  • excellent high temperature and low temperature resistance
  • excellent electrical insulation properties
  • excellent chemical stability
  • high voltage resistance
  • aging resistance
  • long service life
  • soft and easy to install
  • widely used in high-temperature environments

UL3122 Fiberglass Braided Wires Silicone Rubber Insulation 305m/Roll 1

UL3122 Usage:

lighting appliances, electric heating appliances, instrumentation, motor lead wires, electronics, lamps, and gas appliances.



FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.





Service

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!



Packaging : Hard cardboard carton ( Customizable)



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
