105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket

  • 105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket
  • 105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3386
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Blue Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 600V Rated Temperature 105 C
Size 32AWG Conductor Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 563Ω/KM
Construction 7/0.08 Unit Length 305m/1000ft
High Light

32awg XLPE Hook Up Wire

,

105c XLPE Hook Up Wire

,

UL758 XLPE Hook Up Cable
Leave a Message
Product Description

32awg xlpe insulation material wtith jacket 105c 600v wires



UL 3386 Specifications:

Nominal voltage:600V

Temperature range:105℃

Standard: UL3386

Insulation: xlpe

Conductor:  copper



Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor
Insulation
Jacket
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
Thickness
Diameter ±0.15
(Ω/KM)
(M)(Ft)
32
7/0.08
0.24
0.78
1.8
0.78
3.36
563

30
7/0.1
0.30
0.78
1.86
0.78
3.42
381
610/2000
28
7/0.127
0.38
0.78
1.94
0.78
3.5
239
26
7/0.16
0.5
0.78
2.06
0.78
3.62
150
24
7/0.20
0.60
0.78
2.16
0.78
3.72
94.2
22
17/0.16
0.76
0.78
2.32
0.78
3.88
59.4
305/1000
20
21/0.18
0.94
0.78
2.5
0.78
4.06
36.7
18
16/0.254
1.19
0.78
2.75
0.78
4.31
23.2
16
26/0.254
1.50
0.78
3.06
0.78
4.62
14.6
14
41/0.254
1.89
0.78
3.45
0.78
5.01
8.96
12
65/0.254
2.37
0.78
3.93
0.78
5.49
5.64
100/328
10
105/0.254
3.02
0.78
4.58
0.78
6.14
3.55
9
133/0.254
3.36
0.78
4.92
0.78
6.48
2.813
8
133/0.28
3.75
1.15
6.05
0.78
7.61
2.23
7
65/0.45
4.21
1.15
6.51
0.78
8.07
1.768
6
84/0.45
4.79
1.53
7.85
0.78
9.41
1.403
4
133/0.45
6.02
1.53
9.08
0.78
10.64
0.882
2
212/0.45
7.60
1.53
10.66
0.78
12.22
0.5548
1/0
7/3.2
9.6
2.1
13.8
0.78
15.36
0.3487
2/0
7/3.57
10.71
2.1
14.91
0.78
16.47
0.2766
3/0
7/3.94
11.82
2.1
16.02
0.78
17.58
0.2194
4/0
7/4.42
13.26
2.1
17.46
0.78
19.02
0.1722

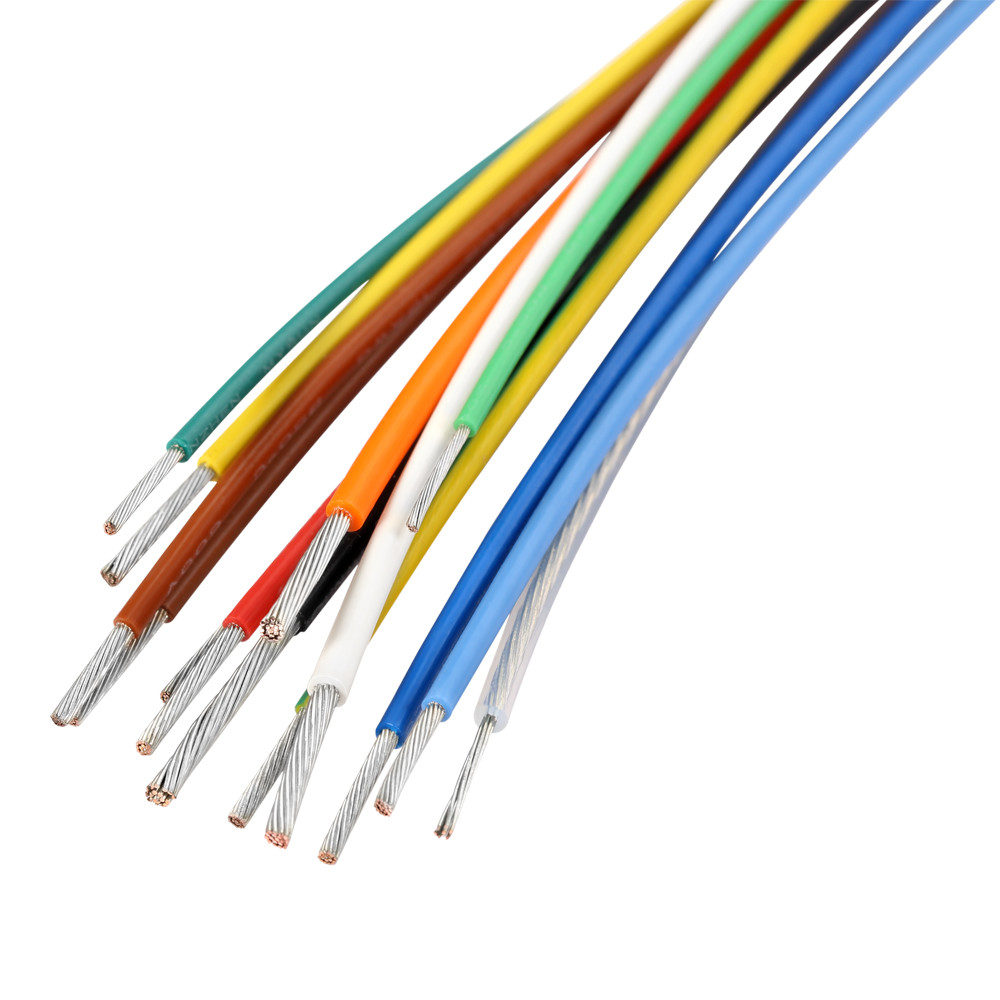

105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket 0




Our Product

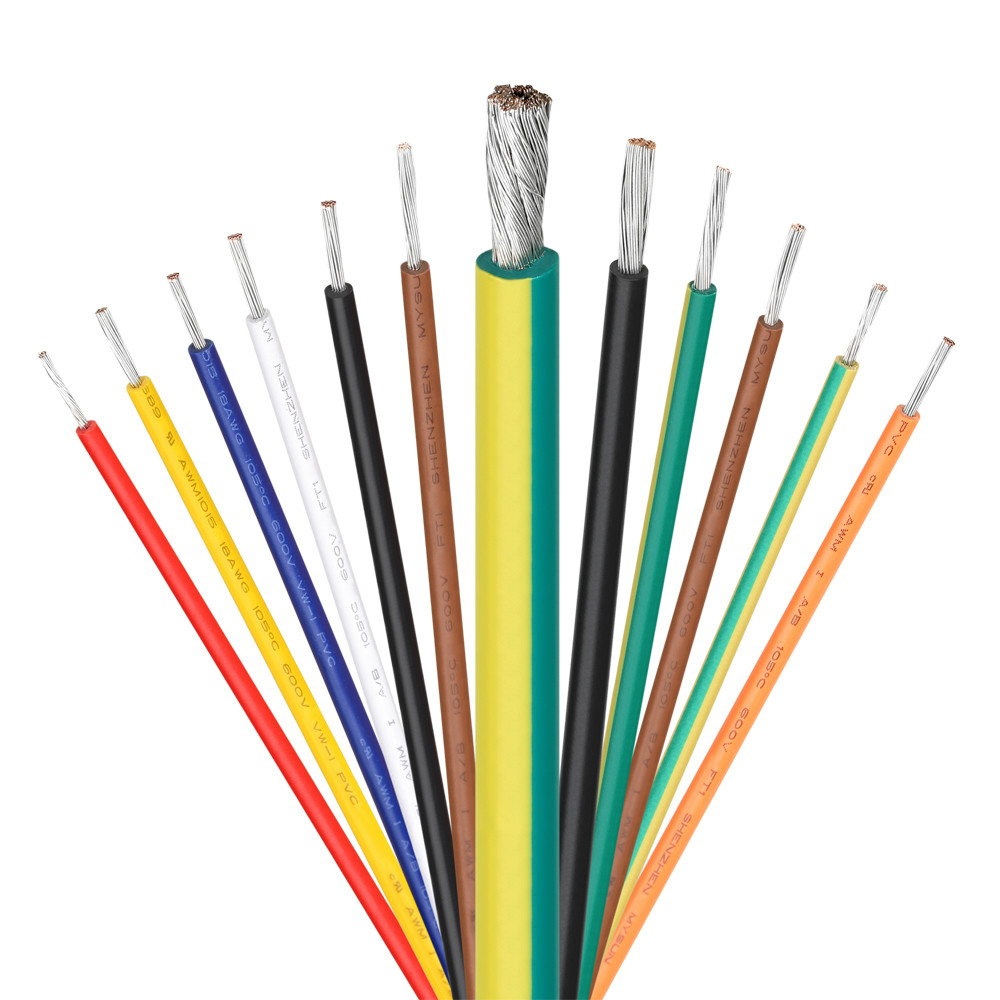

105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket 1



Product Description



105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket 2

105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket 3



Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
