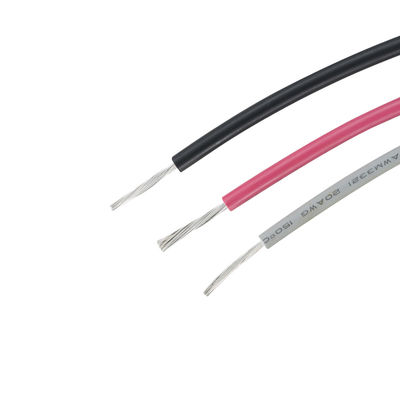

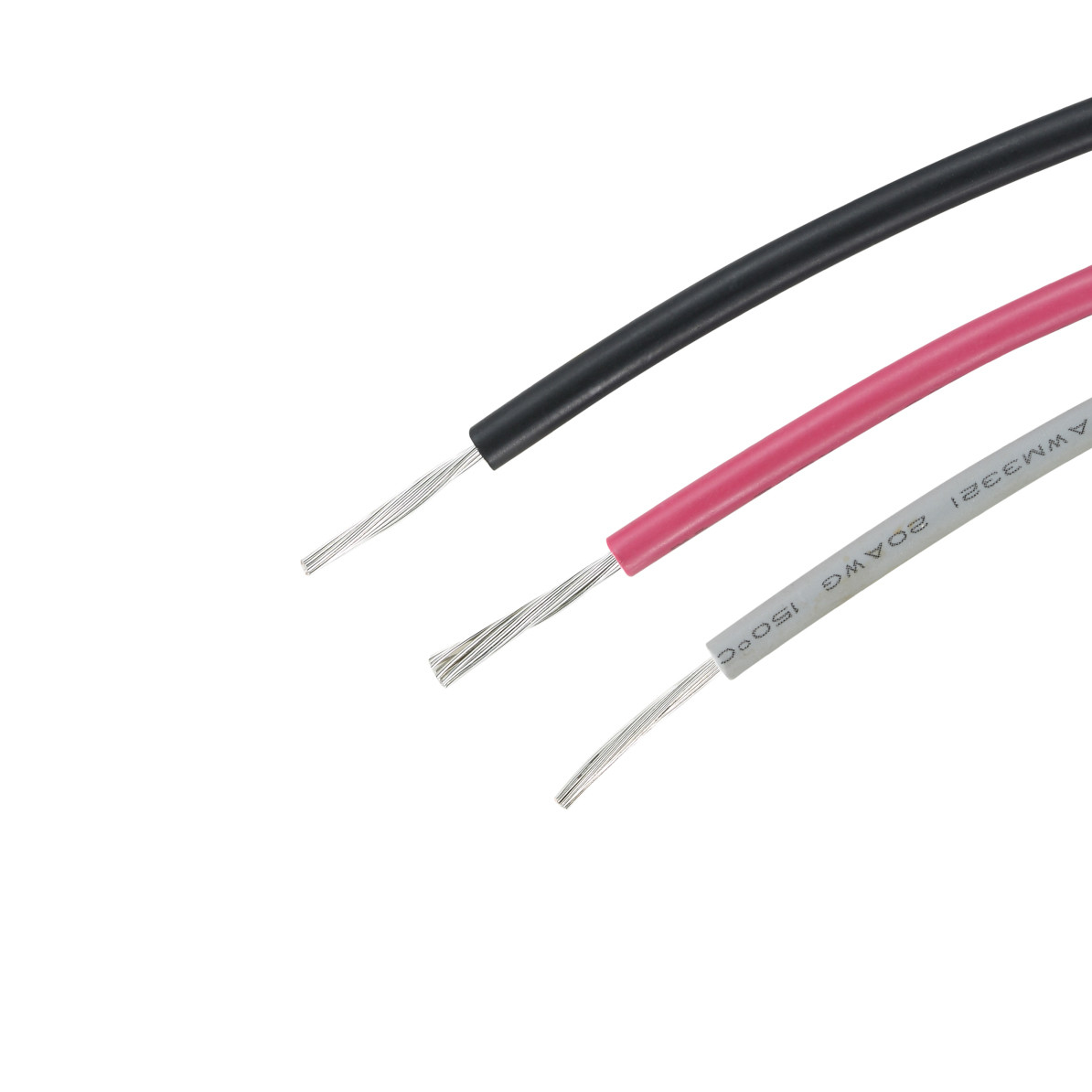

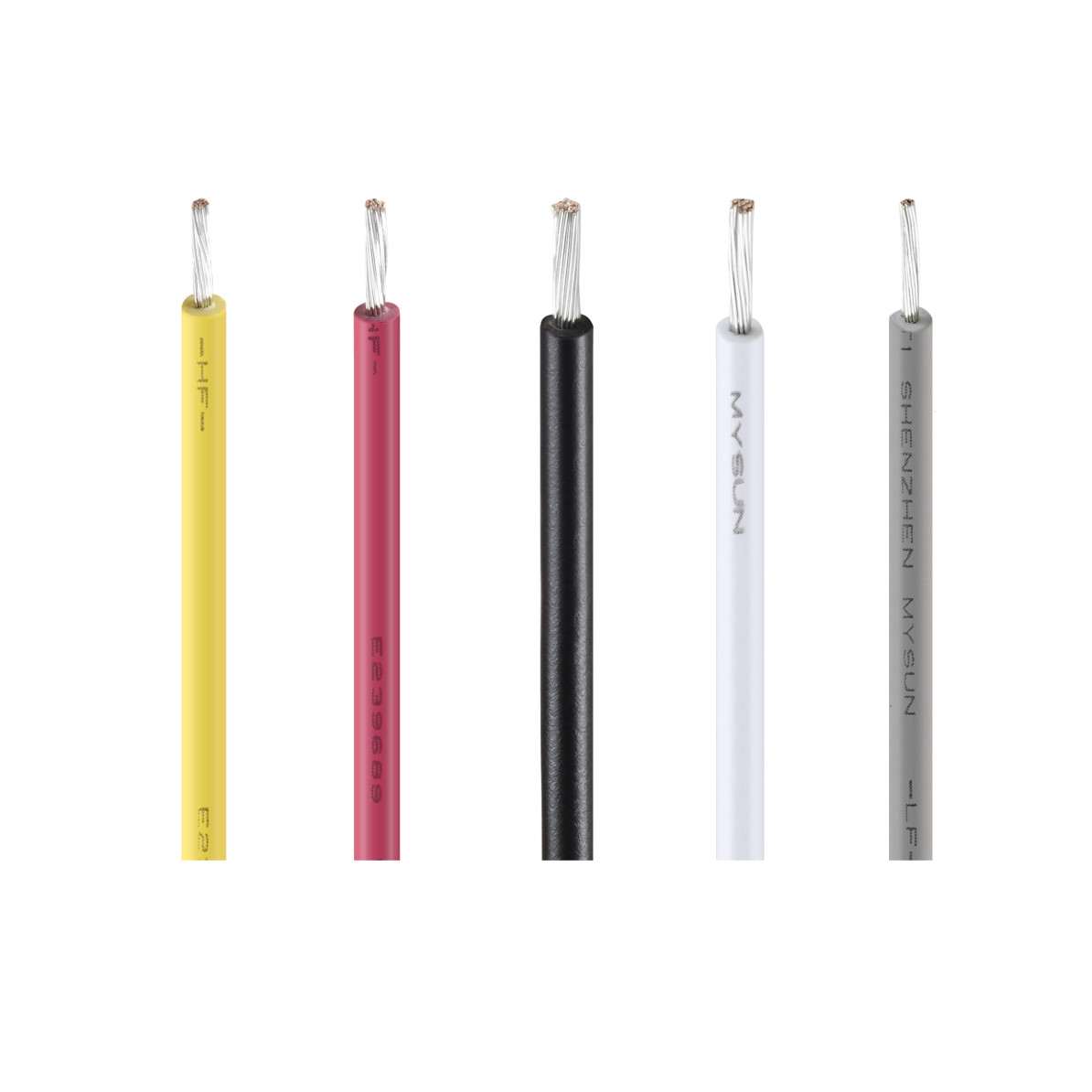

24awg 75c 300v Tinned Copper XLPE Wires UL3194 Stranded Conductor

  • 24awg 75c 300v Tinned Copper XLPE Wires UL3194 Stranded Conductor
  • 24awg 75c 300v Tinned Copper XLPE Wires UL3194 Stranded Conductor
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3194
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Red Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 600v Rated Temperature 75C
Size 24AWG Conductor Tinned Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 94.2 Ω/KM
Construction 11/0.16
High Light

75c Tinned Copper XLPE Wires

,

300v Tinned Copper XLPE Wires

,

UL3194 Xlpe Underground Cable
Leave a Message
Product Description

UL3194 24awg 75c 300v tinned copper wires and cables



 UL 3194  Specifications:

Nominal voltage:600V

Temperature range: 75℃

Standard: UL3194

Insulation: xlpe

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


CONDUCTOR INSULATION MAX.COND RESISTANCE UNIT LENGTH(M)(Ft)
SIZE CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (Ω/KM)
(AWG) (mm)
27 7/0.14 0.42 0.39 1.2 174 305(1000)
26 7/0.16 0.48 1.26 143
24 11/0.16 0.6 1.38 89.3
22 17/0.16 0.76 1.54 56.4
20 21/0.18 0.94 1.72 35.2
18 16/0.254 1.18 1.96 22.2
16 26/0.254 1.5 2.28 14
