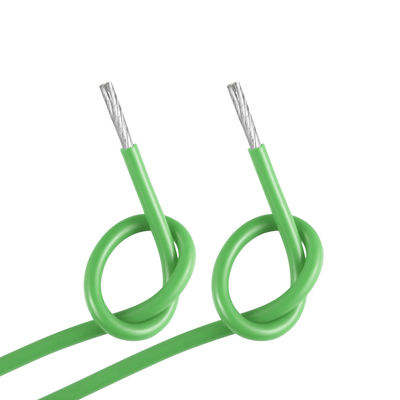

Multi AWG Flexible Insulated Wire 1 Core Conductors Silicone Rubber Copper Wire

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConductor Type | Stranded | Insulation Material | Silicone Rubber Extruded |
---|---|---|---|
Conductor Material | Tinned Copper | Type | Insulated |
Color | Red,Black,blue,yellow,green | Rated Voltage | 20KV |
Core | Single | Packing | 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll |
Temp Reistance | 200 Degree | ||
Highlight | Multi AWG Flexible Insulated Wire,20KV Flexible Insulated Wire,Insulated Silicone Rubber Copper Wire |
Free Sample Silicone Multi AWG Insulated Cable 1 Core Conductors Silicone Rubber Copper Wire
Mysun Wire and Cable’s UL 3239 wire is a hookup wire manufactured with fully annealed tinned copper, flexible stranding and insulation resistant to abrasion, deformation, cut-through and chemical attack. UL 3239 wire’s tough insulation resists shrink-back and melting, even when in direct contact with a soldering iron. UL 3239 wire’s insulation provides the same excellent flame-retardant properties as the best PVC insulations. UL 3239 wire does not melt or shrink back at termination, making it an outstanding high voltage wire specially designed for consumer electronics, appliances, test equipment, and instrumentation. UL 3239 wire is also rated 150°C and categorized as a High Voltage Lead Wire (HVSR). It is recognized by UL as style 3239 standards.
Conductor | Insulation | Max Cond resistance (ohms/m) |
Unit length (m)(F) |
|||||||||||
3KV | 6KV | 10KV | 20KV | 30KV | ||||||||||
Size | Construction | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | ||
(AWG) | (NO./mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
28 | 7x0.12 | 0.37 | 0.50 | 1.37 | 0.70 | 1.77 | 1.00 | 2.37 | 1.30 | 2.97 | 1.70 | 3.77 | 239 | 610/2000 |
26 | 7x0.15 | 0.49 | 0.50 | 1.49 | 0.70 | 1.89 | 1.00 | 2.49 | 1.30 | 3.09 | 1.70 | 3.89 | 150 | 610/2000 |
24 | 14x0.14 | 0.60 | 0.50 | 1.60 | 0.70 | 2.00 | 1.00 | 2.60 | 1.30 | 3.20 | 1.70 | 4.00 | 94.2 | 610/2000 |
22 | 22x0.14 | 0.76 | 0.50 | 1.76 | 0.70 | 2.14 | 1.00 | 2.76 | 1.30 | 3.36 | 1.70 | 4.16 | 59.4 | 305/1000 |
20 | 32x0.14 | 0.91 | 0.50 | 1.91 | 0.70 | 2.31 | 1.00 | 2.91 | 1.30 | 3.50 | 1.70 | 4.31 | 36.7 | 305/1000 |
18 | 52x0.14 | 1.17 | 0.50 | 2.17 | 0.70 | 2.57 | 1.00 | 3.17 | 1.30 | 3.77 | 1.70 | 4.57 | 23.2 | 305/1000 |
16 | 52x0.18 | 1.50 | 0.50 | 2.50 | 0.70 | 2.90 | 1.00 | 3.50 | 1.30 | 4.10 | 1.70 | 4.90 | 14.6 | 305/1000 |
FAQ:
1, What’s the MOQ?
One roll. 100M/200M/300M/305M/500M/Roll.
2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.
3,What’s the delivery date?
Most of the commonly used products are in Stock. We can arrange it within one day.
We will arrange the delivery date as your requirement while the Bulk Production.
4, How to visit your factory/company?
We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
Service:
Shipment:
1. by express
2. by sea
3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!
Packaging : Hard cardboard carton ( Customizable)
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
