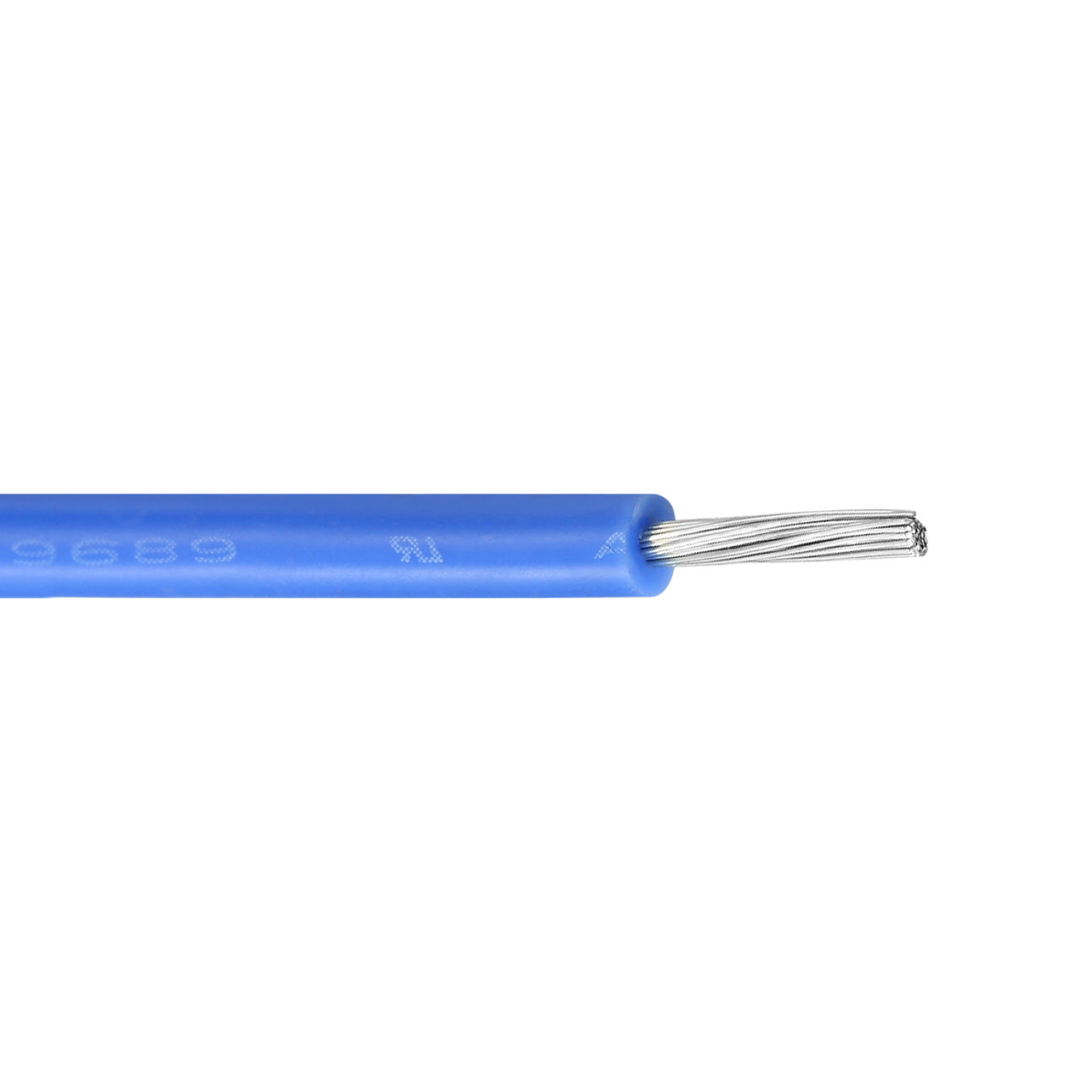

Electrical 200C 600V Tinned Copper Insulated Wire Ul3239

Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3239
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day
Product Details
Conductor Type Stranded Insulation Material Silicone
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 3kv
Stand UL758 Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
High Light

600V Tinned Copper Insulated Wire

,

200C Tinned Copper Insulated Wire

,

Ul3239 Silicone Insulation Cable

Leave a Message
Product Description

ul3239 Electrical 600V Building Wire 600volts tinned Copper Indoor Cable

Mysun Wire and Cable’s UL 3239 wire is a hookup wire manufactured with fully annealed tinned copper, flexible stranding and insulation resistant to abrasion, deformation, cut-through and chemical attack. UL 3239 wire’s tough insulation resists shrink-back and melting, even when in direct contact with a soldering iron. UL 3239 wire’s insulation provides the same excellent flame-retardant properties as the best PVC insulations. UL 3239 wire does not melt or shrink back at termination, making it an outstanding high voltage wire specially designed for consumer electronics, appliances, test equipment, and instrumentation. UL 3239 wire is also rated 150°C and categorized as a High Voltage Lead Wire (HVSR). It is recognized by UL as style 3239 standards.


Conductor Insulation Max Cond resistance
(ohms/m)
Unit length
(m)(F)
      3KV 6KV 10KV 20KV 30KV
Size Construction Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
28 7x0.12 0.37 0.5 1.37 0.70 1.77 1.00 2.37 1.30 2.97 1.70 3.77 239 610/2000
26 7x0.15 0.49 0.50 1.49 0.70 1.89 1.00 2.49 1.30 3.09 1.70 3.89 150 610/2000
24 14x0.14 0.60 0.50 1.60 0.70 2.00 1.00 2.60 1.30 3.20 1.70 4.00 94.2 610/2000
22 22x0.14 0.76 0.50 1.76 0.70 2.14 1.00 2.76 1.30 3.36 1.70 4.16 59.4 305/1000
20 32x0.14 0.91 0.50 1.91 0.70 2.31 1.00 2.91 1.30 3.50 1.70 4.31 36.7 305/1000
18 52x0.14 1.17 0.50 2.17 0.70 2.57 1.00 3.17 1.30 3.77 1.70 4.57 23.2 305/1000
16 52x0.18 1.50 0.50 2.50 0.70 2.90 1.00 3.50 1.30 4.10 1.70 4.90 14.6 305/1000

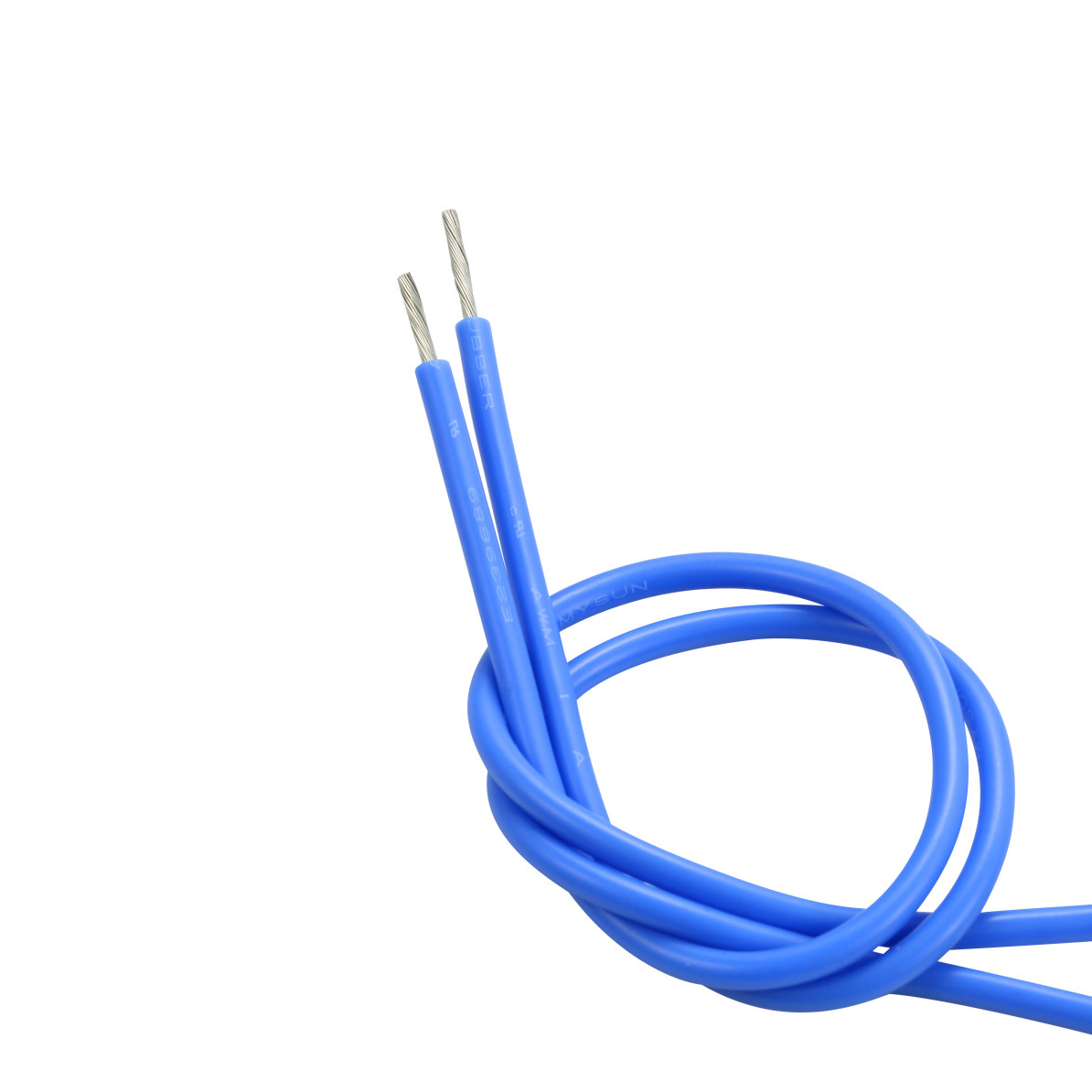

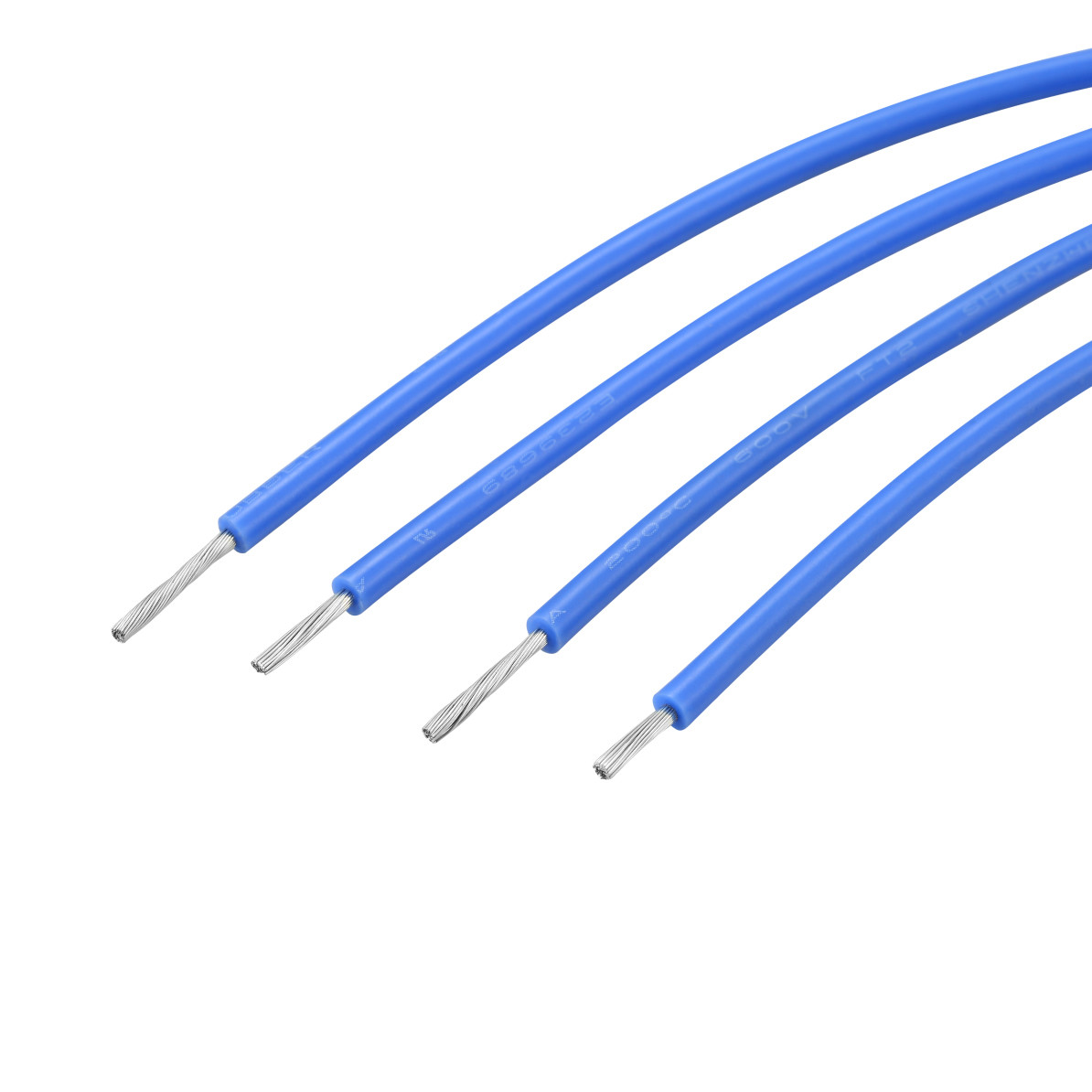

Electrical 200C 600V Tinned Copper Insulated Wire Ul3239 0

Electrical 200C 600V Tinned Copper Insulated Wire Ul3239 1
















Electrical 200C 600V Tinned Copper Insulated Wire Ul3239 5



FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3,What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



4, How to visit your factory/company?

We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.



Service:



Shipment:

1. by express

2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!



Packaging : Hard cardboard carton ( Customizable)



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
