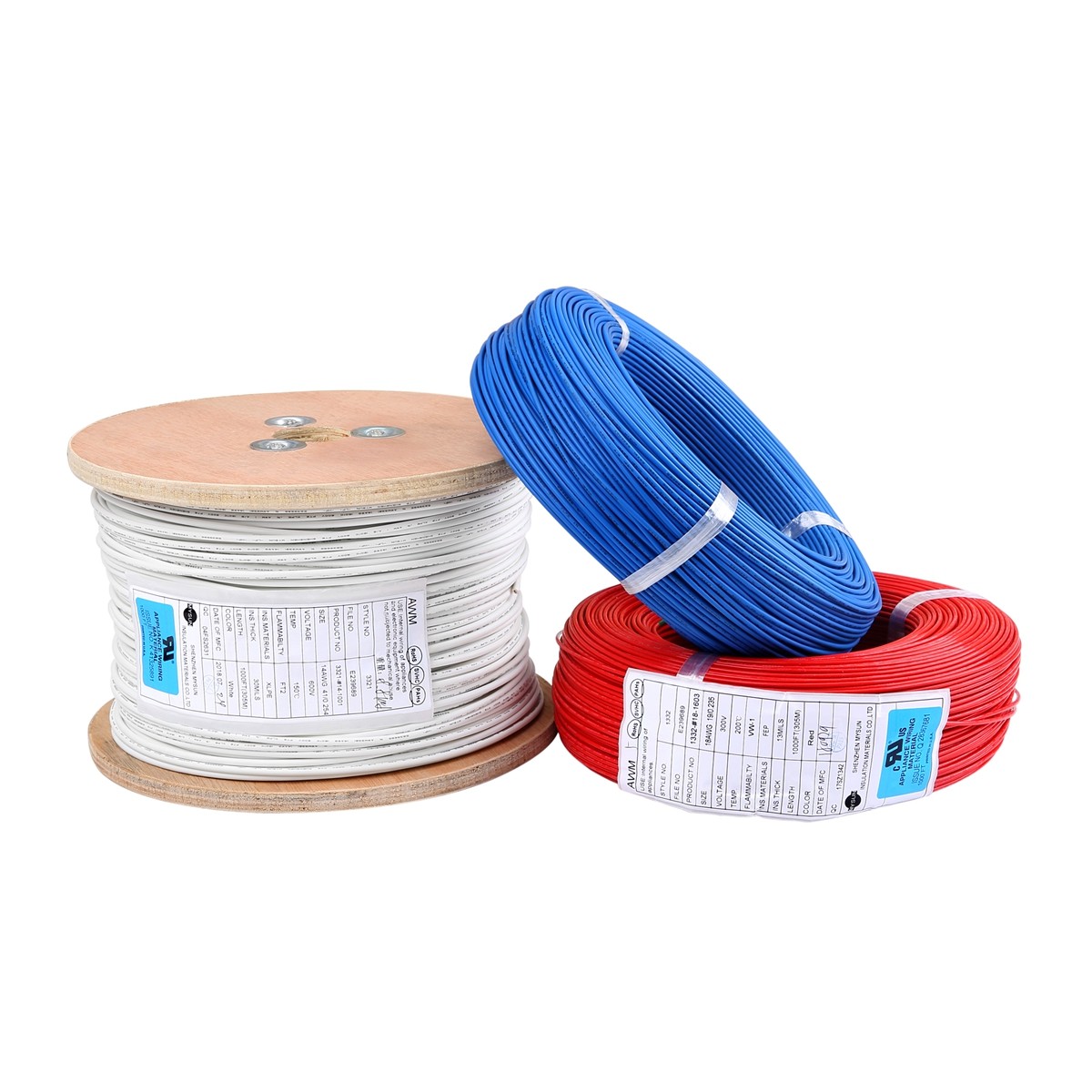

600V 125C XLPE Insulated Wire 20AWG 21/0.18 Electrical Wires Suppliers
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | Mysun |
| Model Number | UL3290 |
| Minimum Order Quantity | 3050meters |
| Price | 0.06~0.287USD per M |
| Packaging Details | Standard packge: cardboard box Accept custom-made. |
| Delivery Time | 7-15 working day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ROHS/CCC/VDE/CCC/ISO9001:2008 | Conductor Type | Stranded |
|---|---|---|---|
| Color | Black | Usage | Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc |
| Rated Voltage | 600V | Rated Temperature | 125C |
| Size | 20AWG | Conductor | Tinned Copper |
| Standard | UL758 | Insulation | XLPE |
| Type | Insulated | Max.Cond Resistance | 23.2Ω/KM |
| Construction | 16/0.254 | ||
| High Light | XLPE Insulated Wire 20AWG,125C XLPE Insulated Wire,Black XLPE Insulated Wire |
||
Product Description
Electrical wires suppliers XLPE insulation 20AWG 21/0.18 wires and cables
UL3290 Specifications:
Nominal voltage:600V
Temperature range:125℃
Standard: UL3290
Insulation: xlpe
Conductor: Tinner copper
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 1.53 | 3.54 | 150 | 305/1000 |
| 24 | 11/0.16 | 0.60 | 3.66 | 94.2 | ||
| 22 | 17/0.16 | 0.76 | 3.81 | 59.4 | ||
| 20 | 21/0.18 | 0.94 | 4.00 | 36.7 | ||
| 18 | 16/0.254 | 1.18 | 4.24 | 23.2 | ||
| 16 | 26/0.254 | 1.50 | 4.56 | 14.6 | ||
| 14 | 41/0.254 | 1.89 | 4.95 | 8.78 | ||
| 12 | 65/0.254 | 2.37 | 5.43 | 8.96 | ||
| 10 | 105/0.254 | 3.02 | 6.08 | 3.55 | ||
| 9 | 133/0.254 | 3.36 | 6.42 | 2.82 | ||
Our Product
Product Description
Package & Delivery
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
