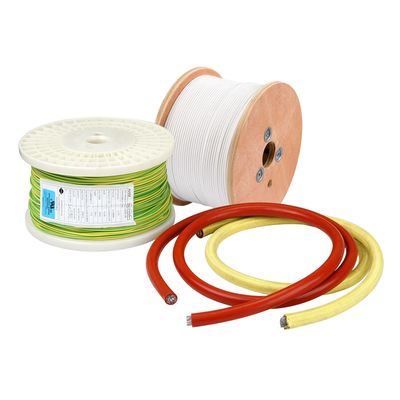

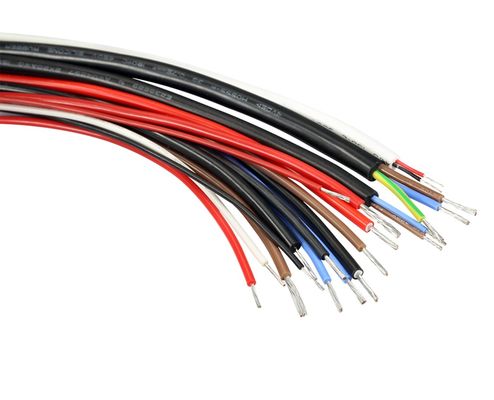

1.5mm VDE Silicone Insulated Wire 150C 300V H05SS-K For Led Lighting
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | Mysun |
| Certification | UL/cUL/CCC/CE/RoHS/SGS |
| Model Number | VED H05SS-K |
| Minimum Order Quantity | 3050meters |
| Price | 0.06~0.48USD per M |
| Packaging Details | Standard packge: cardboard box Accept custom-made. |
| Delivery Time | 7-15 working day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Type | Stranded | Color | Red |
|---|---|---|---|
| Usage | Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc | Rated Voltage | 450/750v |
| Rated Temperature | 180C | Size | 2.5MM |
| Conductor | Tinned Copper | Certification | ROHS/CCC/VDE/CCC/ISO9001:2008 |
| Standard | VDE 0282-3 | Insulation | Silicone Rebber |
| Type | Insulated | Max.Cond Resistance | 13.7 Ω/KM |
| Construction | 30/0.254 | ||
| High Light | 1.5mm VDE Silicone Insulated Wire,Silicone Insulated Wire 150C,300V Tinned Copper Insulated Wire |
||
Product Description
1.5 mm VDE H05SS-K silicone wires 150C 300V for led lighting
VDE H05SS-K Specifications:
Nominal voltage:450/750V
Temperature range: 180℃
Standard: VDE H05SS-K
Insulation: Silicone Rubber
Conductor: Tinner copper
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
| Conductor | Insulation | Diameter (mm) |
Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
First insulation thickness (mm) |
Second insulation thickness (mm) |
(Ω/KM) | (M)(Ft) | |
| 0.5 | 16/0.2 | 0.75 | 0.6 | 0.6 | 3.15 | 40.1 | 200/656 |
| 0.75 | 24/0.2 | 1.13 | 0.6 | 0.6 | 3.53 | 26.7 | |
| 1 | 32/0.2 | 1.31 | 0.6 | 0.6 | 3.71 | 20 | |
| 1.5 | 30/0.254 | 1.6 | 0.8 | 0.7 | 4.6 | 13.7 | |
| 2.5 | 50/0.254 | 2.08 | 0.8 | 0.7 | 5.28 | 7.16 | |
Our Product
Product Description
Package & Delivery
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
