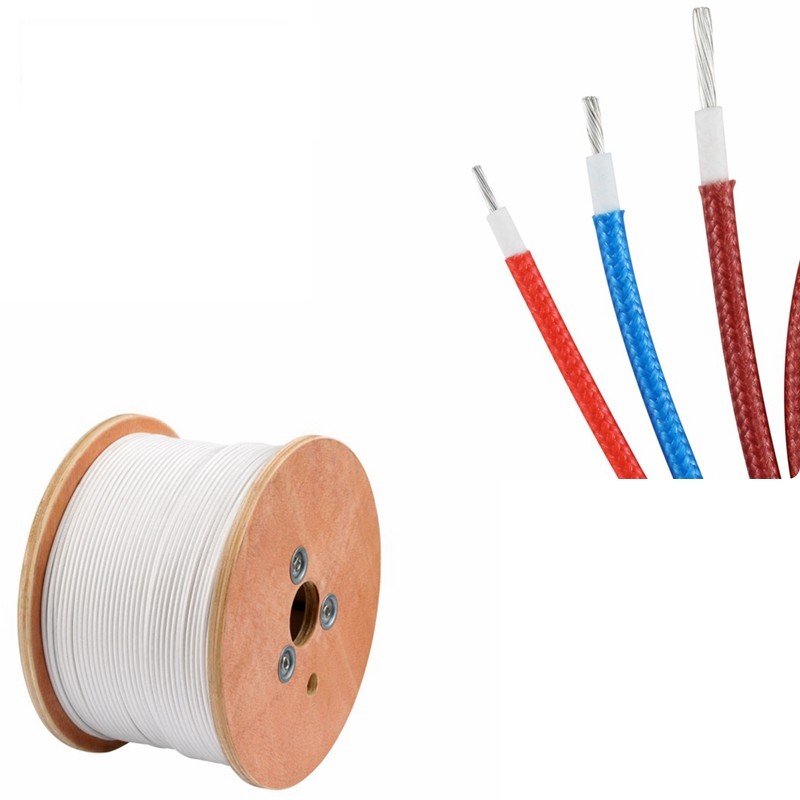

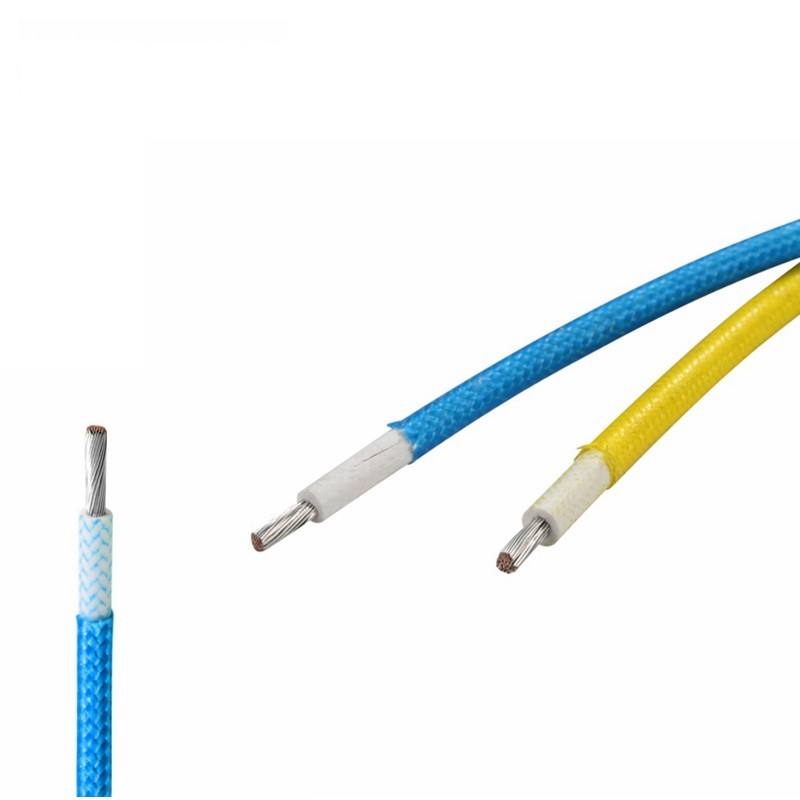

UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor

  • UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor
  • UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3069
Minimum Order Quantity 3050meters
Price 0.06~0.40USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Blue Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 600v Rated Temperature 150C
Size 20awg Conductor Tinned Copper
Standard UL758 Insulation Silicone Rebber
Max.Cond Resistance 36.7Ω/KM Construction 7/0.31
High Light

Fiberglass Silicone Electric Wires

,

UL3069 Silicone Electric Wires

,

600v Insulated Copper Wire
Leave a Message
Product Description

UL3069 silicon wire awg eletronic wires fibber glass 150c



UL3069  Specifications:

Nominal voltage:600V

Temperature range: 150℃

Standard: UL3069

Insulation: Silicone Rubber

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
26 7/0.16 0.48 0.93 2.34 143 305/1000
24 7/0.20 0.61 2.47 89.3
22 7/0.254 0.77 2.63 56.4
20 7/0.31 0.94 2.80 35.2



Our Product



UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor 0



Product Description



UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor 2







Company Introduction



UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor 3

UL3069 Fiberglass Silicone Electric Wires 150c 600v Stranded Conductor 4
