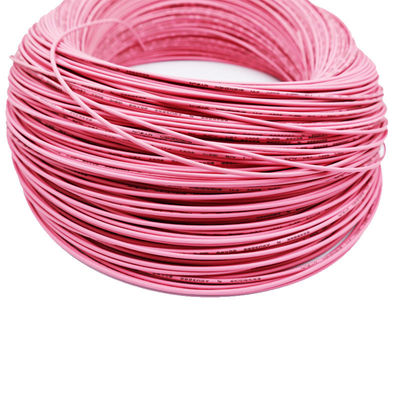

High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV

  • High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV
  • High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3194
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Black Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 300v Rated Temperature 75C
Size 18AWG Conductor Tinned Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 23.2 Ω/KM
Construction 16/0.254
High Light

UL 3194 XLPE Wire

,

Home Appliance XLPE Wire

,

UAV XLPE High Voltage Cable
Leave a Message
Product Description

High voltage XLPE wire UL 3194 18awg wires and cables



 UL 3173  Specifications:

Nominal voltage:300V

Temperature range: 75℃

Standard: UL3173

Insulation: xlpe

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.





CONDUCTOR INSULATION MAX.COND RESISTANCE UNIT LENGTH(M)(Ft)
SIZE CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (Ω/KM)
(AWG) (mm)
27 7/0.14 0.42 0.39 1.2 174 305(1000)
26 7/0.16 0.48 1.26 143
24 11/0.16 0.6 1.38 89.3
22 17/0.16 0.76 1.54 56.4
20 21/0.18 0.94 1.72 35.2
18 16/0.254 1.18 1.96 22.2
16 26/0.254 1.5 2.28 14



Our Product



High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV 0



Product Description



High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV 2







Company Introduction



High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV 3

High Voltage XLPE Wire UL 3194 18AWG For Home Appliance / Robot / UAV 4
