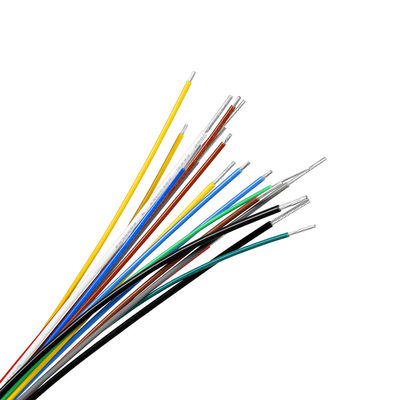

VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K

  • VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K
  • VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K
Place of Origin Guangdong，China
Brand Name Mysun
Model Number VDE H05S-K
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color RED Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 450/750v Rated Temperature 180C
Size 2.5MM Conductor Tinned Copper
Standard UL758 Insulation Silicone Rebber
Type Insulated Max.Cond Resistance 7.16Ω/KM
Construction 50/0.254
High Light

VDE High Voltage Silicone Wire

,

2.5mm High Voltage Silicone Wire

,

CCC Silicone Copper Wire
Leave a Message
Product Description

silicone rubber high voltage wire VDE H05S-K 2.5mm Silicone Rubber



 VDE H05S-K Specifications:

Nominal voltage:450/750V

Temperature range: 180℃

Standard: VDE H05S-K

Insulation: Silicone Rubber

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Diameter
(mm)		 Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Fiberglass Thickness
(mm)		 (Ω/KM) (M)(Ft)
0.50 20/0.18 0.92 0.70 0.15 2.62 40.1 305/1000
0.75 30/0.18 1.13 2.83 26.7
1.00 40/0.18 1.31 3.01 20
1.50 30/0.254 1.60 0.80 3.50 13.7 200/656
2.50 50/0.254 2.08 0.85 4.08 7.16



Our Product



VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K 0



Product Description



VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K 1

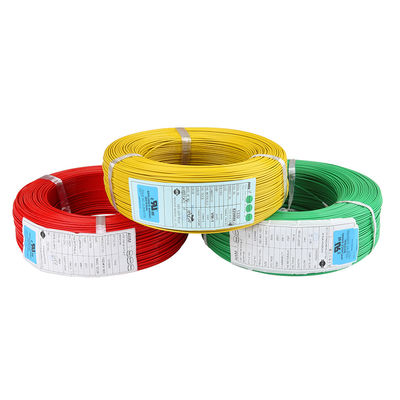

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K 2







Company Introduction



VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K 3

VDE 2.5mm High Voltage Silicone Wire UL758 CCC H05S-K 4
