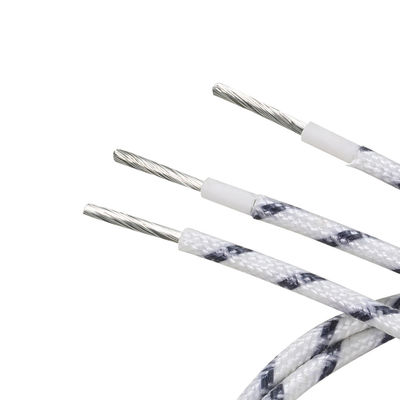

Fiberglass UL3122 Silicone Rubber Insulation Wire 200C 300V

  • Fiberglass UL3122 Silicone Rubber Insulation Wire 200C 300V
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number 3122
Minimum Order Quantity 3050M
Price 0.069-0.8USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-15working days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 500000 meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Silicone Fiberglass Braided Wires Color White Blue Black Red Yellow Green
Conductor Tinned Copper Rated Temperature 200C
Rated Voltage 300V Standard UL758
Insulation Silicone Rubber,fiberglass Cerrtificates UL Certificaation
Usge Home Appliance Package 305M/roll
High Light

Fiberglass Silicone Rubber Insulation Wire

,

UL3122 Silicone Rubber Insulation Wire

,

200C High Temperature Lead Wire
Leave a Message
Product Description

Customized Copper Clad Steel Wire Electrical Wire for Industrial Use Pigtail Cable UL3122



Specifications:

Nominal voltage: 300V

Standard: UL 758

Insulation: silicone rubber + fiberglass

Conductor: tinned copper wire



Product features:

Fiberglass braided wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.



Product dimensions:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35

Fiberglass UL3122 Silicone Rubber Insulation Wire 200C 300V 0
Fiberglass UL3122 Silicone Rubber Insulation Wire 200C 300V 1
Port:Shenzhen
Lead Time :
Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated







QNH76117-b



--20170321_01



--20170321_08



--20170321_09



--20170321_02



--20170321_04



Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
