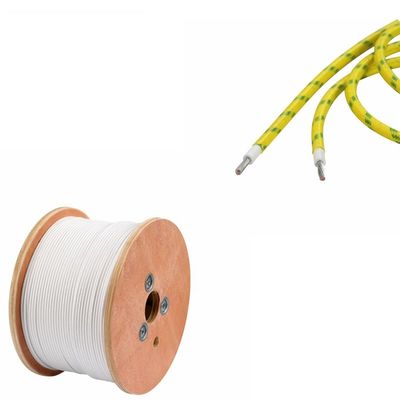

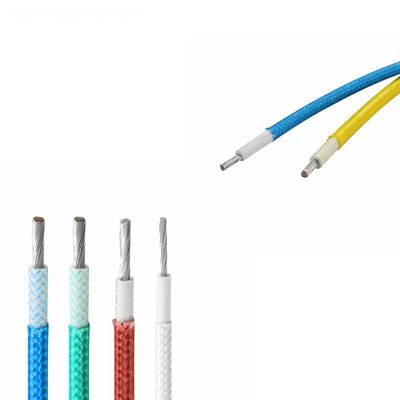

VDE 18AWG Silicone Rubber Insulated Wire UL758 For Coffee Machine

  • VDE 18AWG Silicone Rubber Insulated Wire UL758 For Coffee Machine
  • VDE 18AWG Silicone Rubber Insulated Wire UL758 For Coffee Machine
  • VDE 18AWG Silicone Rubber Insulated Wire UL758 For Coffee Machine
Place of Origin Guangdong，China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3068
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Accept Customized
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 300v
Rated Temperature 150℃ Size 14-32AWG
Conductor Tinned Copper Wires Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Feb
Type Insulated Max.Cond Resistance 14.6-381 Ω/KM
High Light

VDE Silicone Rubber Insulated Wire

,

18AWG Silicone Rubber Insulated Wire

,

UL758 Silicone Rubber Wire
Leave a Message
Product Description

Specifications:

Nominal voltage:300V

Temperature range: 150℃

Standard: VDE0250

Insulation: Silicone Rubber+Fiber Glass

Conductor: Tinned Copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



Our Product



VDE 18AWG Silicone Rubber Insulated Wire UL758 For Coffee Machine 0



Product Description





Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



VDE 18AWG Silicone Rubber Insulated Wire UL758 For Coffee Machine 1



 Product Parameter

CONDUCTOR
INSULATION
MAX.COND RESISTANCE (Ω/KM)
UNIT LENGTH (M)(FT)
SIZE (AWG)
CONSTRUCTION (NO./mm)
DIAMETER (mm)
NOMINAL THICKNESS (mm)
DIAMETER (mm)
32
7/0.08
0.24
0.2
0.64
563
1220/4000
30
7/0.10
0.3
0.2
0.7
381
1220/4000
28
7/0.127
0.38
0.25
0.88
239
1220/4000
26
7/0.16
0.48
0.3
1.08
150
610/2000
24
7/0.2
0.61
0.3
1.21
94.2
610/2000
22
19/0.15
0.77
0.3
1.37
59.4
610/2000
20
19/.019
0.92
0.3
1.52
36.7
610/2000
18
19/0.235
1.19
0.3
1.79
23.2
305/1000
16
19/0.30
1.49
0.3
2.09
14.6
305/1000
14
19/0.37
1.87
0.35
2.57
8.78
305/1000



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
