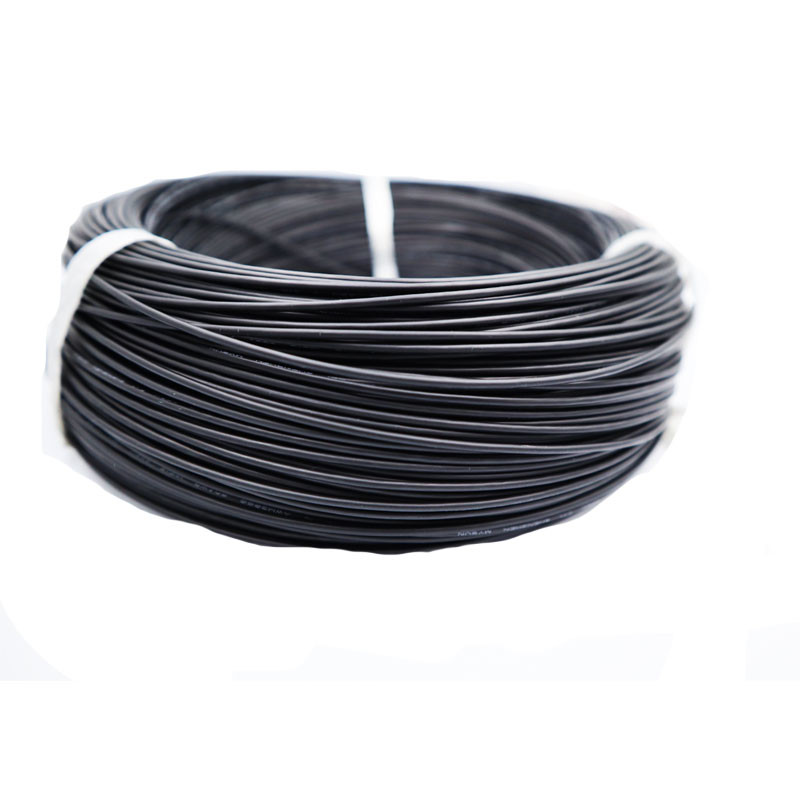

Oil Resistance XLPE Insulation Wire UL3173 Tinned Copper Conductor
| Place of Origin | Guangdong ,China |
|---|---|
| Brand Name | MYSUN |
| Certification | UL |
| Model Number | UL3173 |
| Minimum Order Quantity | 3050meters |
| Price | 0.1-1.5USD/M |
| Packaging Details | 305M/roll,610M/roll,carton 32cm*32cm*32cm |
| Delivery Time | 5-10 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500000 meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | UL3173 | Insulation | XLPE |
|---|---|---|---|
| Conductor | Tinned Copper | Rated Voltage | 600V |
| Rated Temperature | 125°C | Application | Heating,UAV,robot,lighting |
| Standard | UL758 | Sizes | 26-9AWG |
| OD | 2.04-4.92mm | Package | 305m/roll,610m/roll |
| Highlight | Oil Resistance XLPE Insulation Wire,XLPE Insulation Wire UL3173,Copper Conductor Insulated Hookup Wire |
||
Product Description

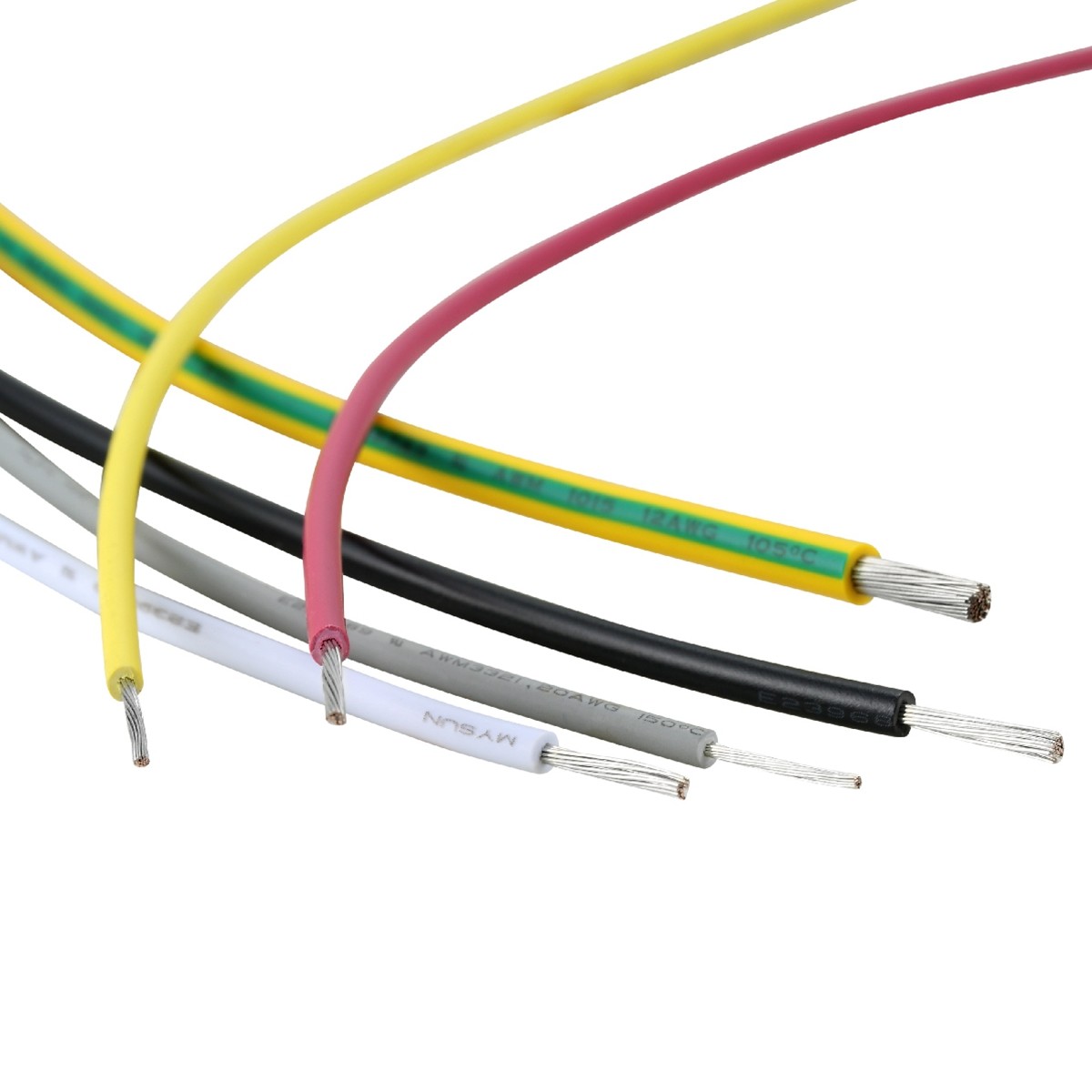

UL3173 XLPE insulation electric wire
- Flexibility: XLPE insulation
- Maximum conductor resistance: 150 ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: 125°C
- Rated voltage: 600V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 9AWG,10AWG,12AWG,14AWG,16AWG, 18 AWG, 20 AWG, 22 AWG,24AWg,26AWG,28AWG,30AWG
Products demesion:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
|
24 |
11/0.16 | 0.60 | 2.16 | 89.3 | ||
| 22 | 17/0.16 | 0.76 | 2.32 | 56.4 | ||
| 20 | 21/0.18 | 0.94 | 2.49 | 35.2 | ||
| 18 | 16/0.254 | 1.18 | 2.73 | 22.2 | ||
| 16 | 26/0.254 | 1.50 | 3.06 | 14 | ||
| 14 | 41/0.254 | 1.89 | 3.45 | 8.78 | ||
| 12 | 65/0.254 | 2.37 | 3.93 | 5.53 | ||
| 10 | 105/0.254 | 3.02 | 4.58 | 3.476 | ||
| 9 | 133/0.254 | 3.36 | 4.92 | 2.73 | ||
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
