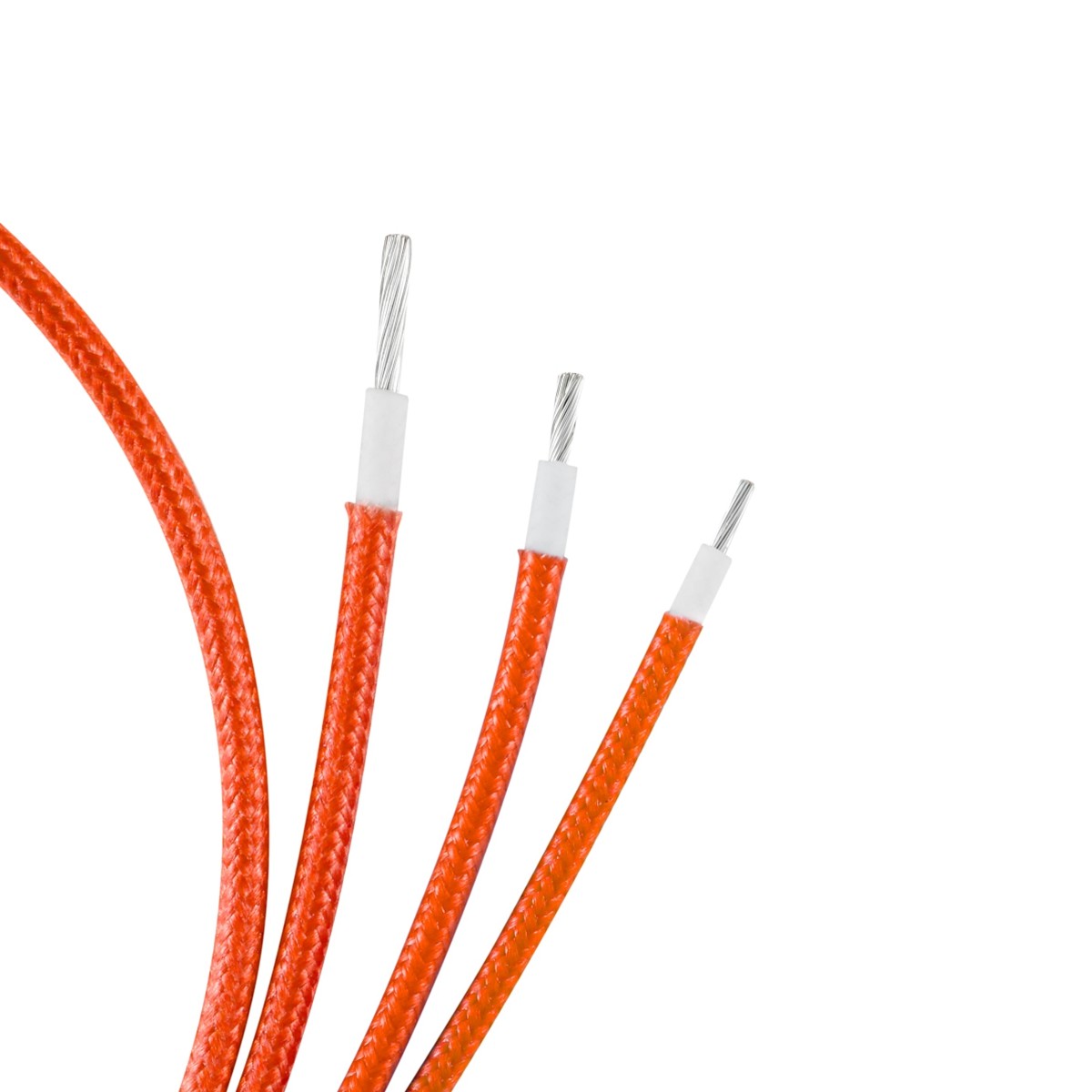

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG

  • Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG
  • Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3068
Minimum Order Quantity 3050meters
Price 0.05-1USD/M
Packaging Details carton32mm*32mm*32mm
Delivery Time 5-10working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL3068 Insulation Silicone Rubber Fiberglass Braided
Conductor Tinned Copper Rated Voltage 300V
Rated Temperature 150°C Standard UL758
Size 16-30AWG OD 1.50-2.69mm
Package 305m/roll,610m/roll Usage Home Appliance Lighting Heater UAV
High Light

Silicone Rubber Fiberglass Braided Wires

,

UL3068 Fiberglass Braided Wires

,

30AWG Tinned Copper Braided Wire
Leave a Message
Product Description

UL3068 silicone rubber fiber glass braided wire

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 381 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: 150°C
  • Rated voltage: 300V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, 22 AWG,24AWg,26AWG,28AWG,30AWG



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.60 1.50 361 610/2000
28 7/0.127 0.38 1.58 227
26 7/0.16 0.48 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14



Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG 0

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG 1

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
