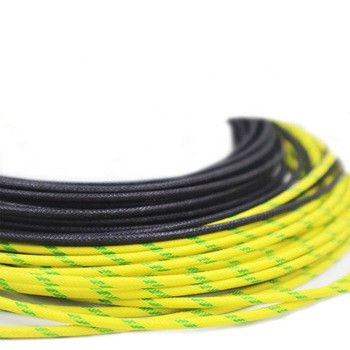

Silicone Rubber Flexible Insulated Wire Fiberglass Braided UL3071

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Conductor Type | Stranded | Insulation Material | Silicone Rubber Extruded |
---|---|---|---|
Conductor Material | Tinned Copper | Type | Insulated |
Color | Red,Black,blue,yellow,green | Rated Voltage | 300V |
Cross Section | 16-26awg | Core | Single |
Packing | 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll | Temp Reistance | 200 Degree |
Highlight | Silicone Rubber Flexible Insulated Wire,Fiberglass Braided Flexible Insulated Wire,UL3071 Silicone Hook Up Wire |
Product Description

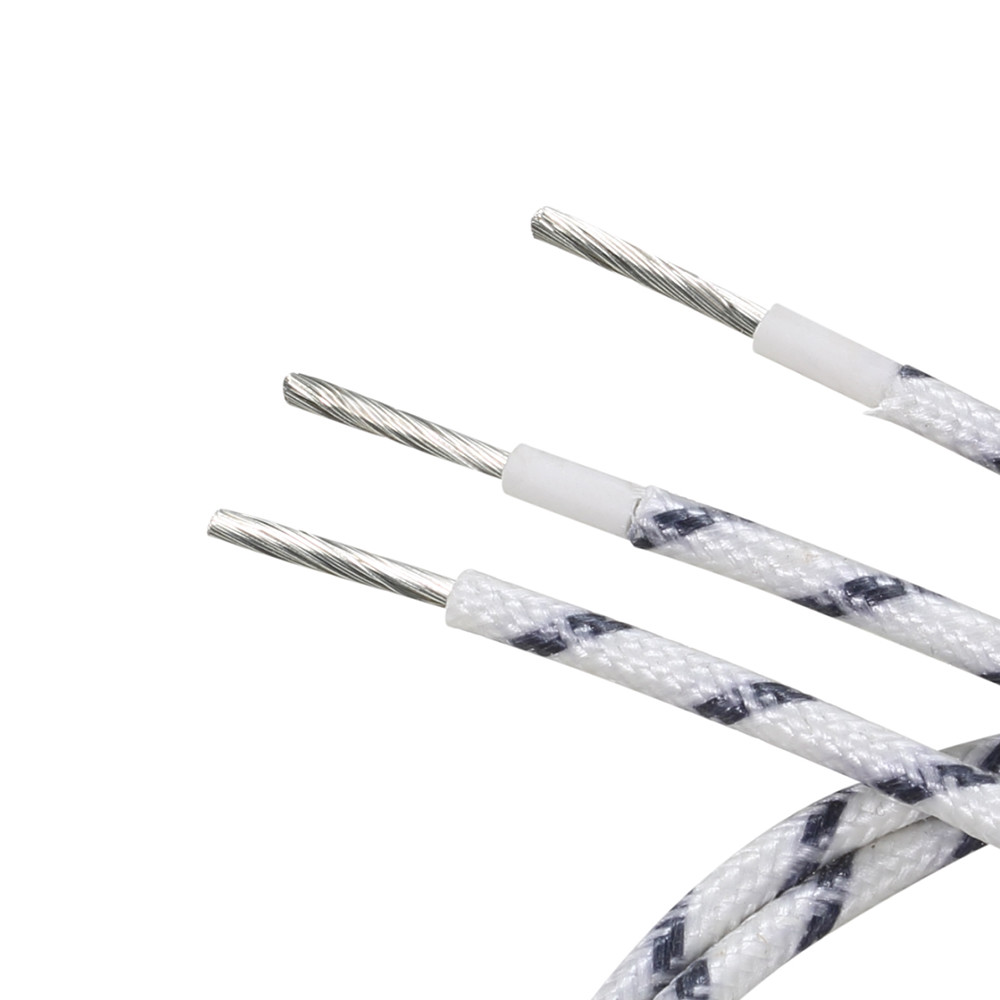

UL3071 silicone rubber fiberglass braided wire
- Flexibility: silicone rubber insulation with fiberglass braided sleeving
- Maximum conductor resistance: 23.2ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: -50°C to +200°C
- Rated voltage: 600 V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 18AWG, 16 AWG, 14 AWG, and 13 AWG
Product demesions:
Conductor | Insulation | Max.Cond Resistance | Unit length | |||
Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 22.2 | 305/1000 |
16 | 7/0.49 | 1.49 | 3.35 | 14 | ||
14 | 41/0.254 | 1.87 | 3.73 | 8.78 | ||
13 | 50/0.254 | 2.07 | 3.93 | 6.97 |
