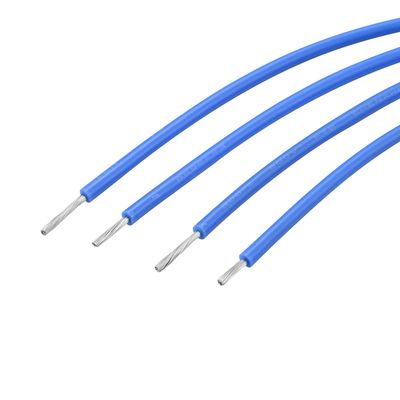

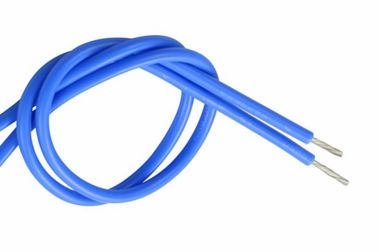

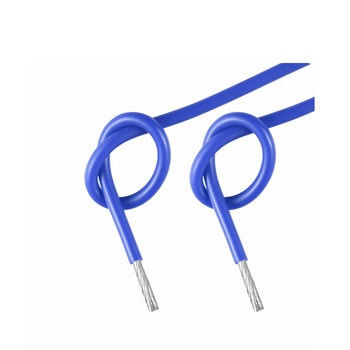

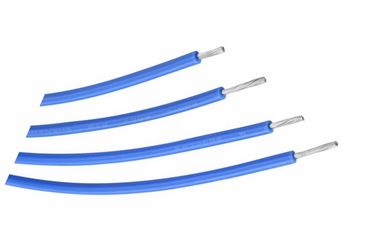

UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor

  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
  • UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor
Place of Origin China
Brand Name MYSUN
Model Number UL 3135
Minimum Order Quantity 3050meters
Price Negotiable
Packaging Details 305m/roll
Delivery Time 7-15working days
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Rated Voltage 600V
Rated Temperature 200°C MOQ 3050M
Insulation Silicone Rubber Application Lighting
Color Customized Size 12-26AWG
Type Flexible Cable Package 305m/roll,610m/roll
High Light

Tinned Copper Conductor Flexible Silicone Wire

,

26AWG Flexible Silicone Wire

,

VDE Insulated Copper Wire
Leave a Message
Product Description

 flexible UL 3135 Silicone Rubber Insulated Wire tinned copper wire



specifications



Retad voltage 600V
Retad temperature 200°C
Insulation silicone rubber
Conductor tinned copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
Size awg12,14,16,18,20,22,24,26
M/FT 305/1000
Color white,black,red,brown,yellow,blue,green,transparent etc.



product dimensions

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.61 0.78 2.17 89.3 305/1000
22 7/0.254 0.77 0.78 2.33 56.4 305/1000
20 7/0.31 0.94 0.78 2.5 35.2 305/1000
18 7/0.39 1.19 0.78 2.75 22.2 305/1000
16 7/0.49 1.49 0.78 3.05 14 305/1000
24 11/0.16 0.61 0.78 2.17 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 26/0.16 0.94 0.78 2.5 35.2 305/1000
18 41/0.16 1.18 0.78 2.74 22.2 305/1000
16 26/0.254 1.49 0.78 3.05 14 305/1000
14 41/0.254 1.87 0.78 3.43 8.78 305/1000
12 19/0.47 2.63 0.78 3.92 5.53 305/1000
0.30mm² 12/0.18 0.71 0.78 2.27 59.78 305/1000
0.50mm² 20/0.18 0.92 0.78 2.48 40.1 305/1000
0.75mm² 30/0.18 1.13 0.78 2.69 26.7 305/1000
1.00mm² 40/0.18 1.31 0.78 2.87 20 305/1000
1.25mm² 50/0.18 1.46 0.78 3.02 14.35 305/1000
2.00mm² 41/0.254 1.87 0.78 3.43 8.78 305/1000
2.50mm² 50/0.254 2.08 0.78 3.64 7.16 305/1000


Benefits of silicone rubber insulated wire

Silicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:

  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires

This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated

wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet

your needs. If required, We can also aid you with custom manufactured wires and cables.



UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor 0

UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor 1



UL standard silicone cable UL3135 Flexible Silicone Wire For Tinned Copper Conductor 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
