24awg UL3122 Silicone Rubber Insulation Cable Fiberglass Stranded

Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 24awg Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
High Light

UL3122 Silicone Rubber Insulation Cable

,

24awg Silicone Rubber Insulation Cable

,

Stranded Fiberglass Braided Cable

Leave a Message
Product Description

UL3122 silicone rubber wire

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG



Conductor Insulation Max Cond resistance
(ohms/m)
Unit length
(m)(F)
      3KV 6KV 10KV 20KV 30KV
Size Construction Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
28 7x0.12 0.37 0.50 1.37 0.70 1.77 1.00 2.37 1.30 2.97 1.70 3.77 239 610/2000
26 7x0.15 0.49 0.50 1.49 0.70 1.89 1.00 2.49 1.30 3.09 1.70 3.89 150 610/2000
24 14x0.14 0.60 0.50 1.60 0.70 2.00 1.00 2.60 1.30 3.20 1.70 4.00 94.2 610/2000
22 22x0.14 0.76 0.50 1.76 0.70 2.14 1.00 2.76 1.30 3.36 1.70 4.16 59.4 305/1000
20 32x0.14 0.91 0.50 1.91 0.70 2.31 1.00 2.91 1.30 3.50 1.70 4.31 36.7 305/1000
18 52x0.14 1.17 0.50 2.17 0.70 2.57 1.00 3.17 1.30 3.77 1.70 4.57 23.2 305/1000
16 52x0.18 1.50 0.50 2.50 0.70 2.90 1.00 3.50 1.30 4.10 1.70 4.90 14.6 305/1000

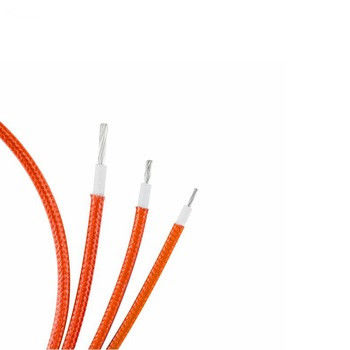

24awg UL3122 Silicone Rubber Insulation Cable Fiberglass Stranded 0



--20170321_012

Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
