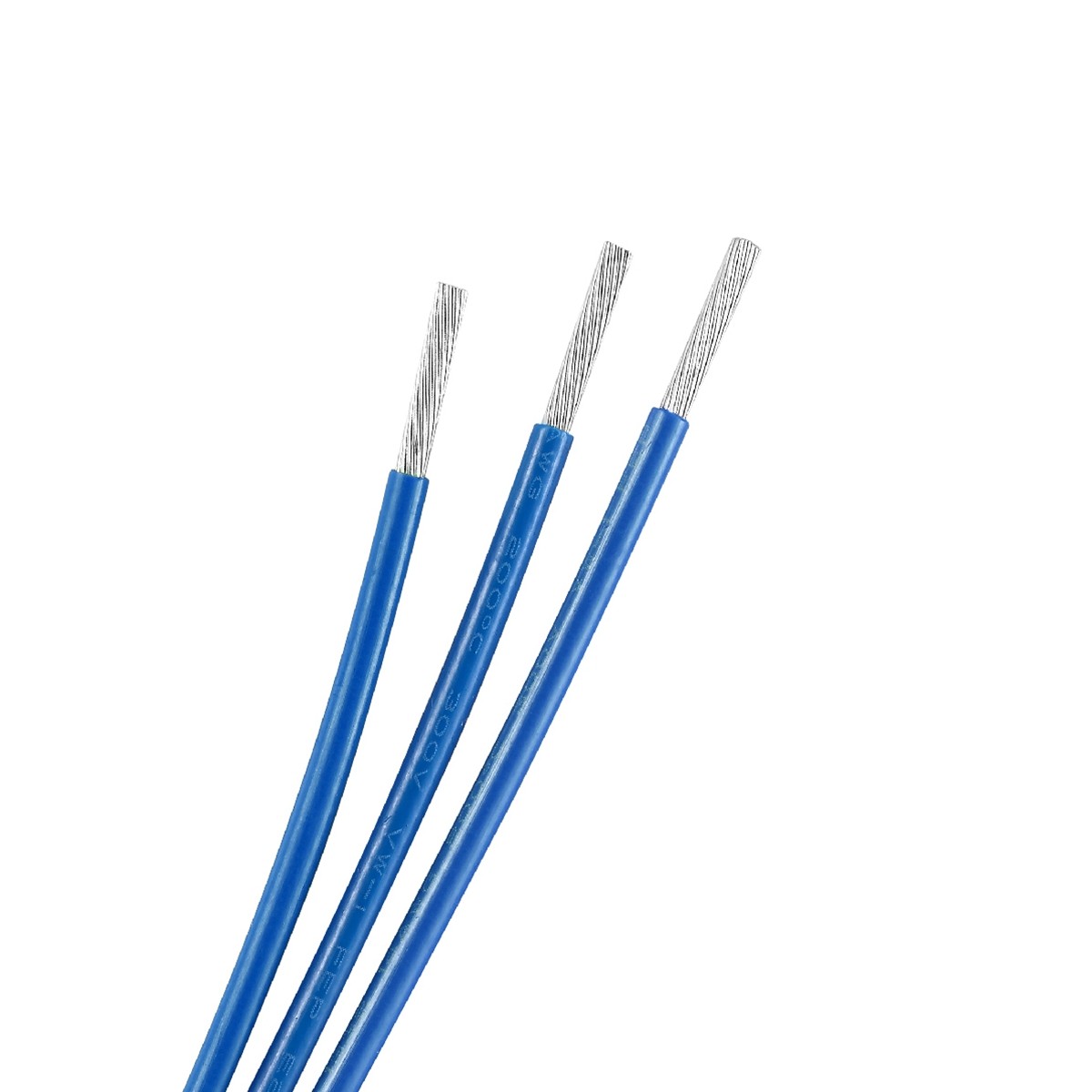

Waterproof 150C PFA Flexible Insulated Wire UL1859 E239689
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | UL1859 Insulation High Temperature L Resistance Electric Hook-up Wire | Color | All Colors |
|---|---|---|---|
| Conductor | Nickel-plated Copper | Insulation | PFA |
| Rated Voltage | 600V | Rated Temperature | 150C |

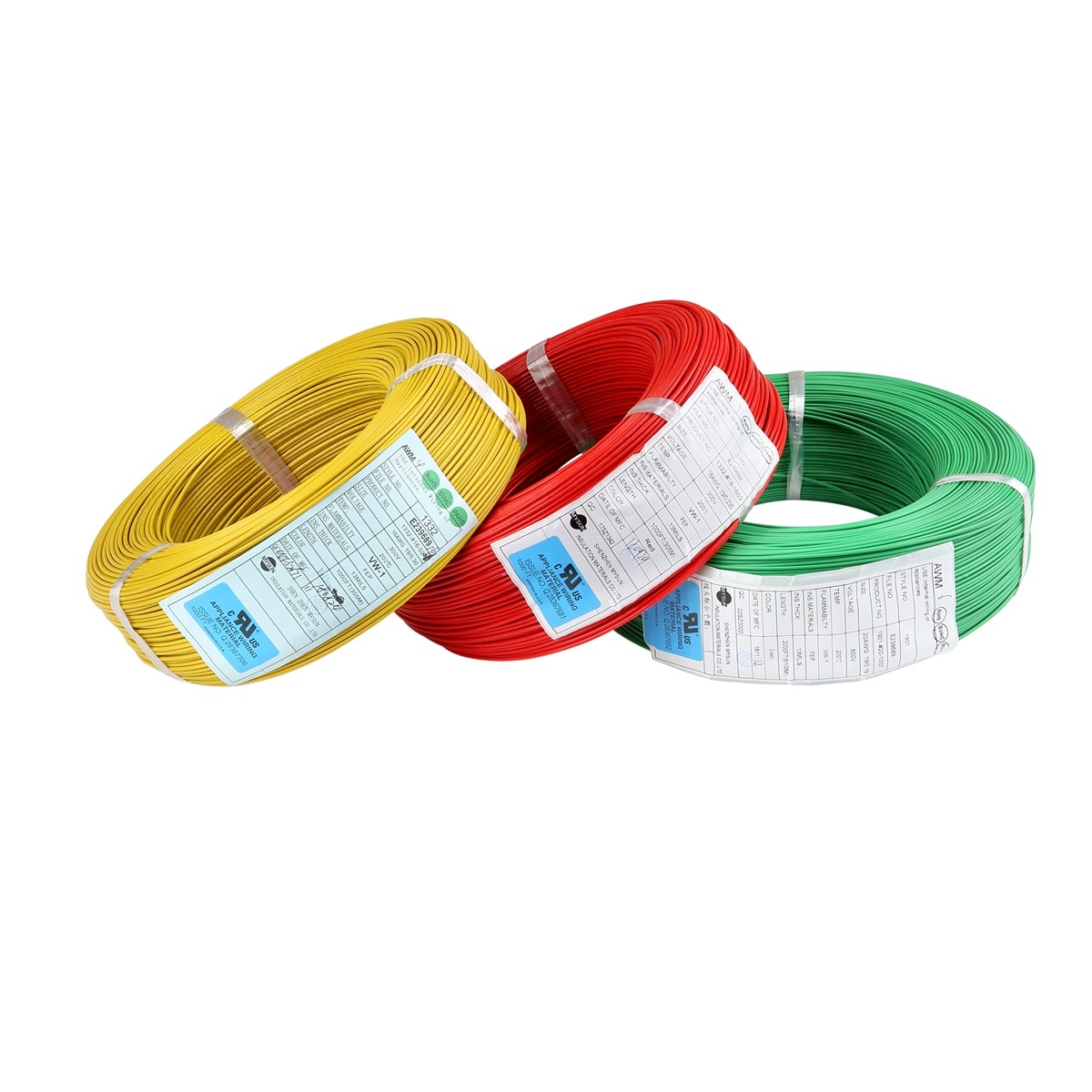

| Sample | Conventional Sample Free | Packing | 100m/roll,305m/roll |
| Producing Experience | 20 Years | Delivery Time | 7-15 Days |
| Highlight | PFA Flexible Insulated Wire,150C Flexible Insulated Wire,UL1859 Waterproof Insulated Wire |
||
Product Description
UL 1859 PFA Wire 150C Heat Resistant electric wire
Specifications:
Nominal voltage: 600V
Temperature range: 150C
Standard: UL 758
Conductor: Nickel-plated copper wire
Insulation:PFA
Lead Time :
| Quantity(Meters) | 1 - 6100 | >6100 |
| Est. Time(days) | 7 | To be negotiated |
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
| 32 | 7/0.08 | 0.24 | 0.35 | 0.94 | 563 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 1.00 | 361 | 610/2000 | |
| 28 | 7/0.12 | 0.36 | 1.06 | 227 | 610/2000 | |
| 26 | 7/0.16 | 0.48 | 1.18 | 143 | 610/2000 | |
| 24 | 7/0.20 | 0.60 | 1.30 | 89.3 | 610/2000 | |
| 22 | 19/0.15 | 0.75 | 1.45 | 56.4 | 305/1000 | |
| 20 | 19/0.185 | 0.93 | 1.63 | 35.2 | 305/1000 | |
| 18 | 19/0.235 | 1.17 | 1.85 | 22.2 | 305/1000 | |
| 16 | 19/0.30 | 1.50 | 2.20 | 14 | 305/1000 | |
| 14 | 19/0.37 | 1.85 | 2.55 | 8.78 | 305/1000 | |
| 12 | 19/0.47 | 2.35 | 3.05 | 5.53 | 305/1000 | |
| 10 | 37/0.43 | 3.00 | 3.70 | 3.476 | 305/1000 | |
Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
