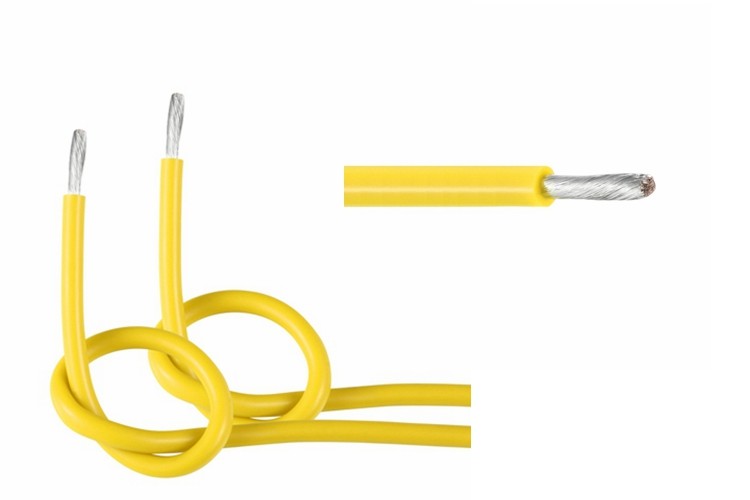

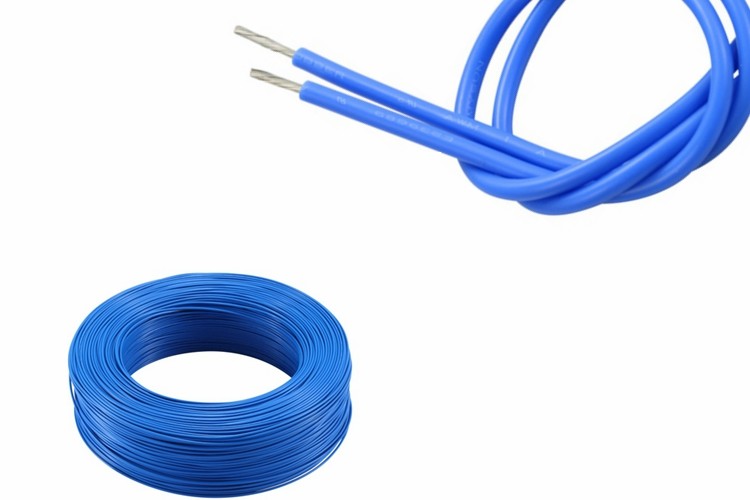

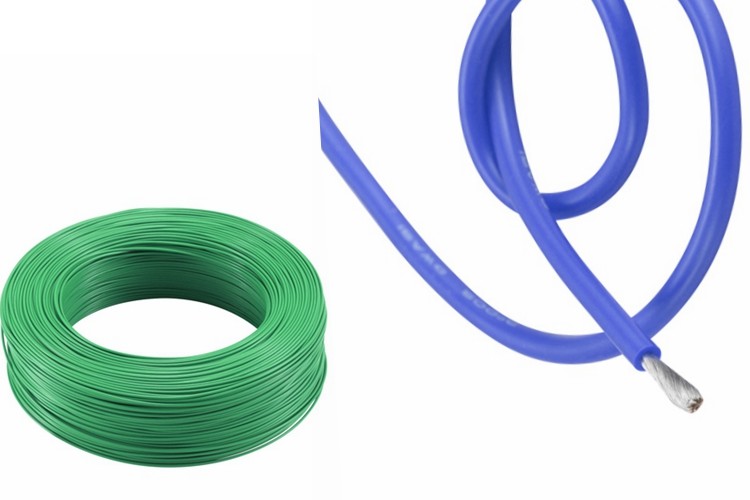

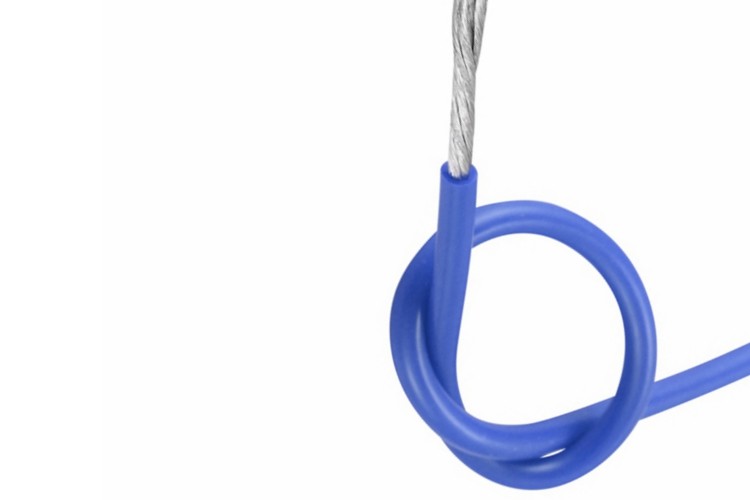

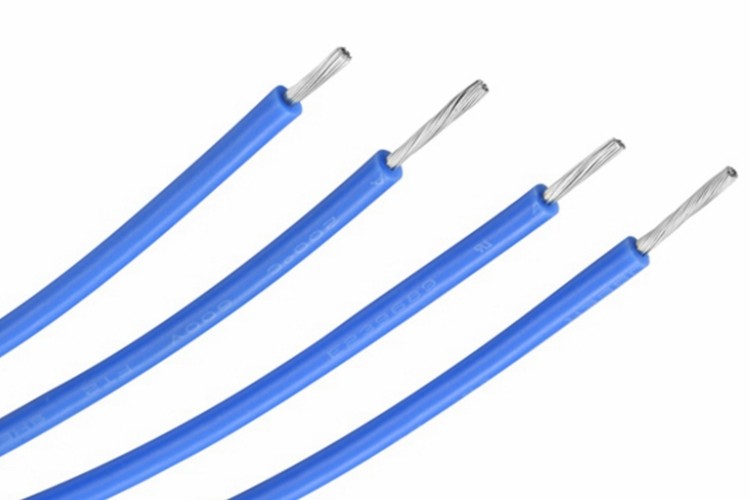

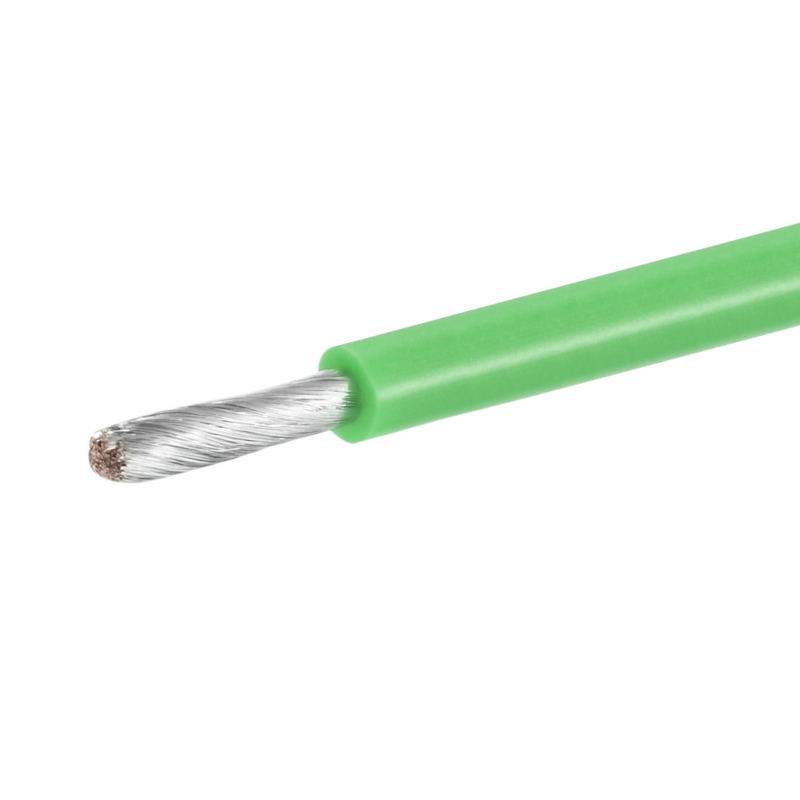

Electric Kettle 200C Silicone Rubber Insulated Wire UL3135

  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
  • Electric Kettle 200C Silicone Rubber Insulated Wire UL3135
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL3135 AWG
Minimum Order Quantity 2000meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 950000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Material Silicone Certificate ISO9001/ISO14001 /OHSAS18001/CCC
Rated Temperature 200C Application Rice Cooker Electromagnetic Furnace; Electric Kettle
High Light

Electric Kettle Silicone Rubber Insulated Wire

,

200C Silicone Rubber Insulated Wire

,

UL3135 Tinned Copper Electric Wire
Leave a Message
Product Description
Supply Ability
Supply Ability:
950 Kilometer/Kilometers per Day silicone wire

Product demension:
Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.61 0.78 2.17 89.3 305/1000
22 7/0.254 0.77 0.78 2.33 56.4 305/1000
20 7/0.31 0.94 0.78 2.5 35.2 305/1000
18 7/0.39 1.19 0.78 2.75 22.2 305/1000
16 7/0.49 1.49 0.78 3.05 14 305/1000
24 11/0.16 0.61 0.78 2.17 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 26/0.16 0.94 0.78 2.5 35.2 305/1000
18 41/0.16 1.18 0.78 2.74 22.2 305/1000
16 26/0.254 1.49 0.78 3.05 14 305/1000
14 41/0.254 1.87 0.78 3.43 8.78 305/1000
12 19/0.47 2.63 0.78 3.92 5.53 305/1000
0.30mm² 12/0.18 0.71 0.78 2.27 59.78 305/1000
0.50mm² 20/0.18 0.92 0.78 2.48 40.1 305/1000
0.75mm² 30/0.18 1.13 0.78 2.69 26.7 305/1000
1.00mm² 40/0.18 1.31 0.78 2.87 20 305/1000
1.25mm² 50/0.18 1.46 0.78 3.02 14.35 305/1000
2.00mm² 41/0.254 1.87 0.78 3.43 8.78 305/1000
2.50mm² 50/0.254 2.08 0.78 3.64 7.16 305/1000
Packaging & Delivery
Packaging Details
silicone wire
1.100 or 200 Meters/Roll/Spool
2.500 or 1000 Meters/Spool
3.rolls or coils or spools
 Port
Shenzhen
    lead Time :7-15day





                                    UL3135 Siline Electrical Wire For Inter






Electric Kettle 200C Silicone Rubber Insulated Wire UL3135 0

Electric Kettle 200C Silicone Rubber Insulated Wire UL3135 1
