Contact Person : Peter Sun
Phone Number : 0086-13823381460

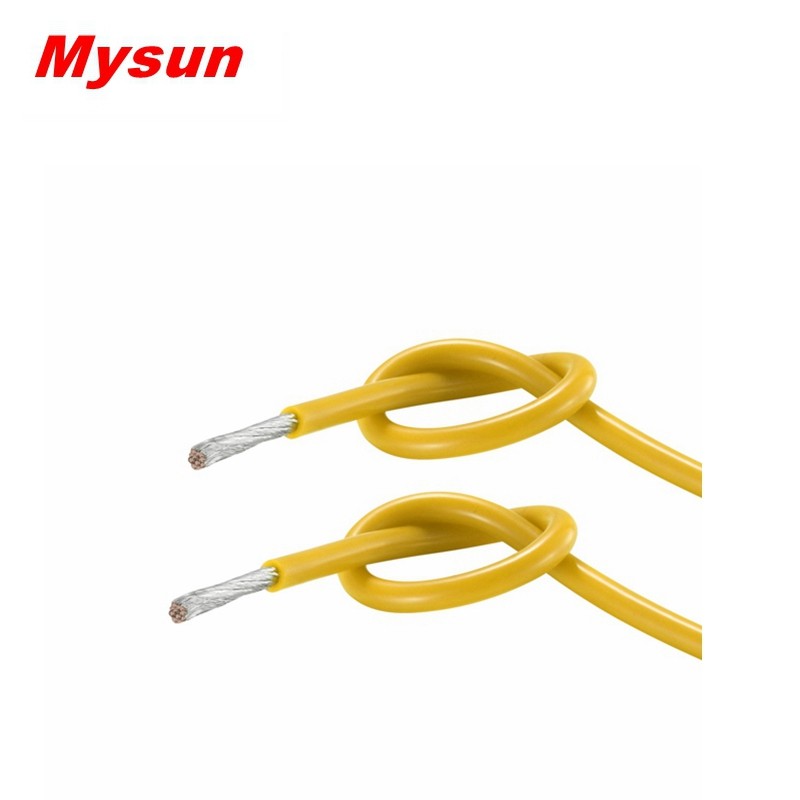

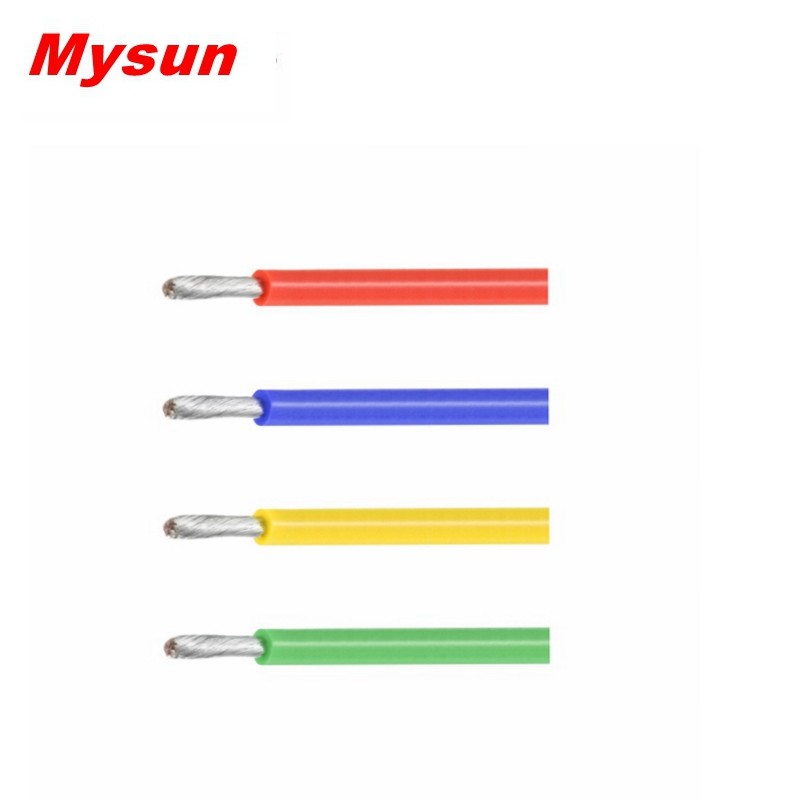

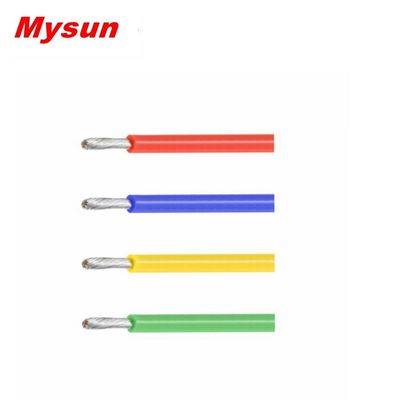

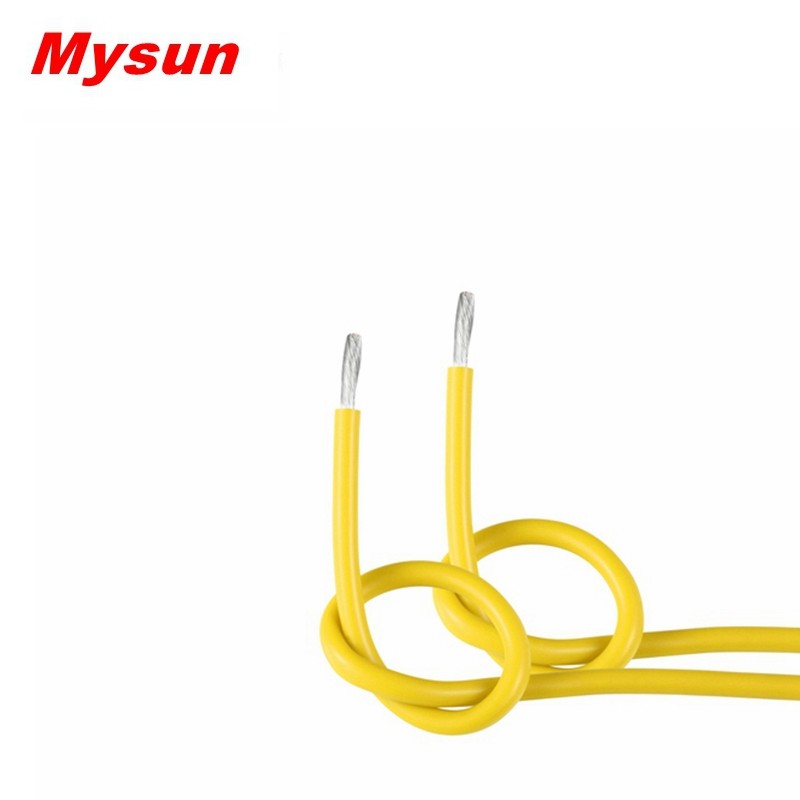

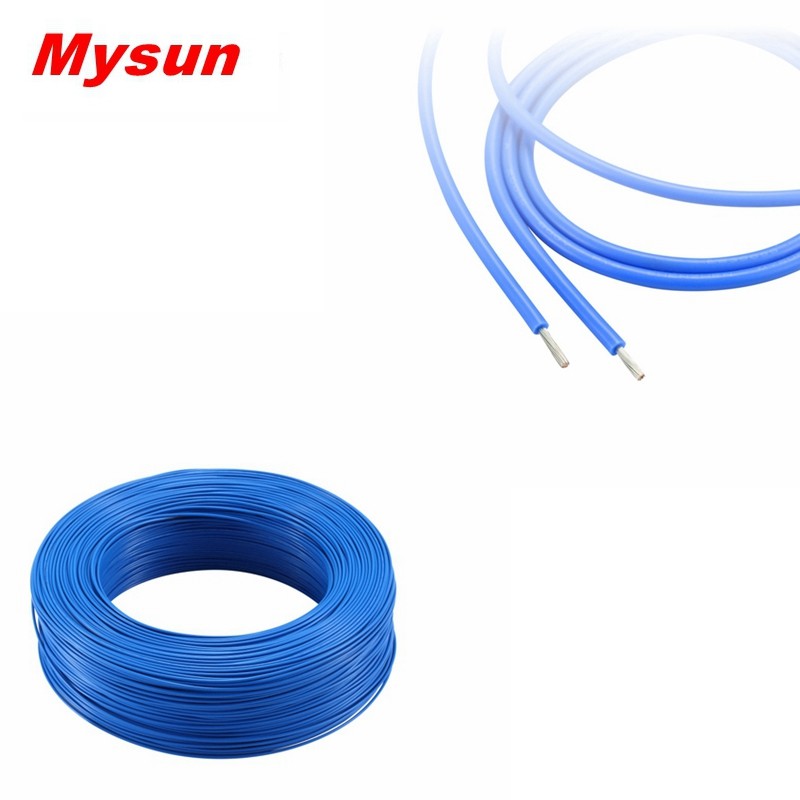

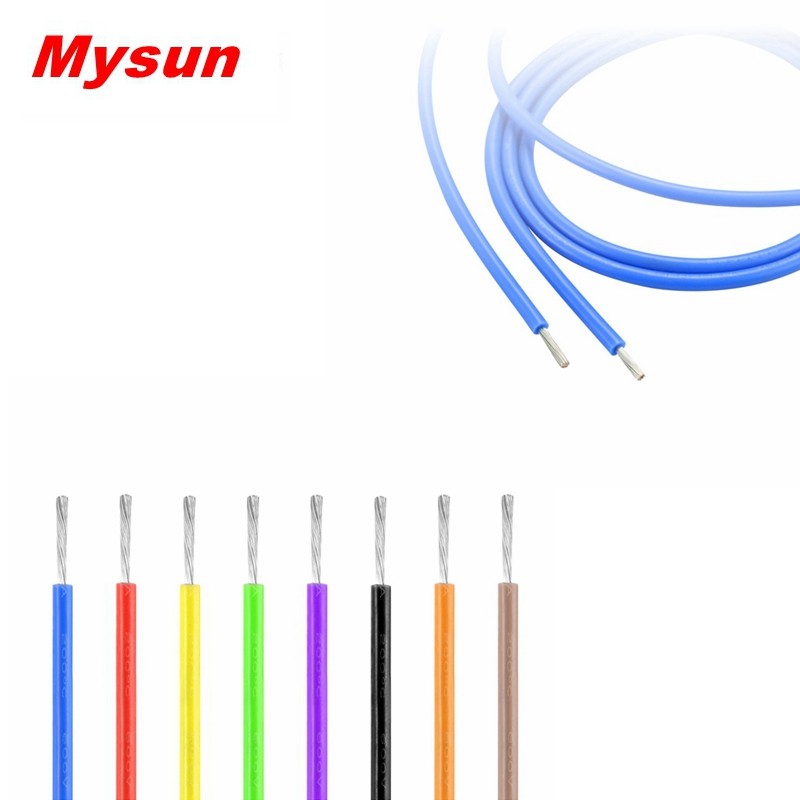

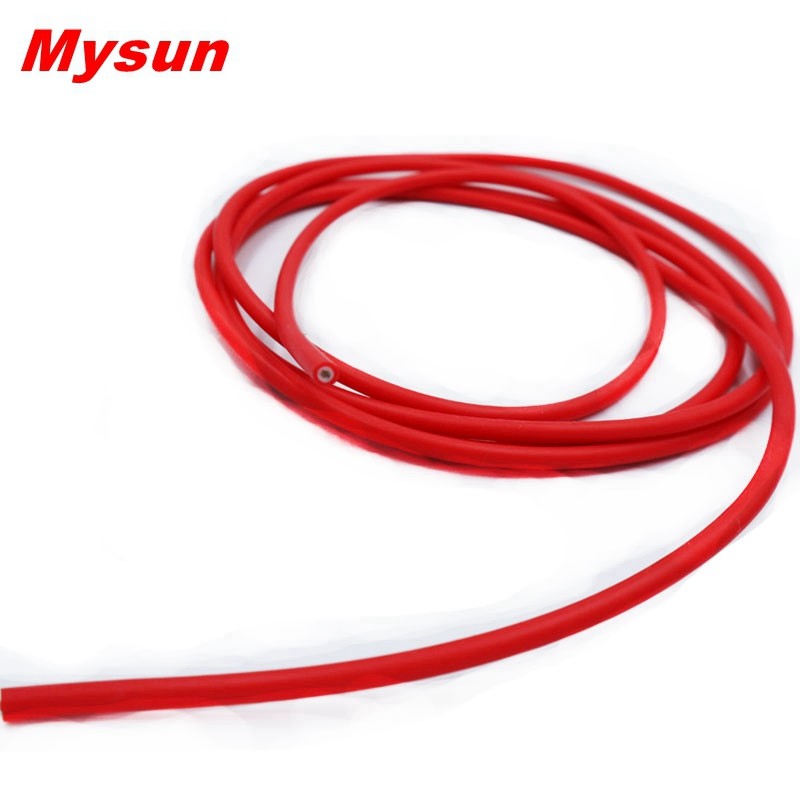

0.75mm UL3512 Silicone Insulated Cable With ROHS REACH Report

Place of Origin CHINA
Brand Name MYSUN
Certification UL ROHS REACH
Model Number UL3512
Minimum Order Quantity 6100meters
Packaging Details 305m/roll
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 600V Temperature 200C
Standard UL758 Application Home Appliance
Size 0.5-4.0sqmm Insulation Silicone Rubber
Conductor Tinned Copper Color Black, Red, Yellow, White, Brown, Grey, Pink, Yellow/green, Blue, Green
High Light

0.75mm Silicone Insulated Cable

,

UL3512 Silicone Insulated Cable

,

REACH XLPE Hook Up Wire

Leave a Message
Product Description

Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Section
(mm²)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
0.50 20/0.18 0.95 0.78 2.51 40.1 305/1000
0.75 30/0.18 1.17 2.73 26.7
1.00 40/0.18 1.30 2.86 20
1.25 50/0.18 1.50 3.06 14.35
1.50 30/0.25 1.60 3.16 13.7
2.00 41/0.254 1.85 3.41 8.78
2.50 50/0.25 2.06 3.62 7.16
3.00 60/0.25 2.30 3.86 6.5
4.00 56/0.30 2.62 4.18 4.7



MYSUN Wire Features :

wire5.jpgwire 4.jpg



Certifications:

Since starting production in 2002, MYSUN has passed product authentication, including UL, cUL, VDE, CSA and CCC. Also got ISO9001 quality management system in 2005. In order to provide better service, MYSUN passed ISO14001 environment management system while completing its revision changing of ISO9001 in the year 2010 and successfully obtained IATF16949 certificate in 2015. The complete quality guarantee system and advanced testing equipment provide high class products.


Test Equipment:

"Quality is guarantee for existence" is the guideline that MYSUN always uphold. Advanced manufacturing and testing equipment, selected raw materials, a sound management system, fully guarantee the reliability of the products.




Why choose MYSUN?
1. Full experience of 20 years in manufacturing high temperature cables/wires
2. Strict quality inspection of ISO9001 quality management, ISO14001 and IATF14969 system
3. Certifications for our products including UL, cUL, CSA, VDE,CCC, ROHS, REACH etc.
4. Free samples(in stock)
5. Delivery in one week for your goods
6. Several different payment methods,such as T/T,Western Union and L/C
7. Strong R&D Team to design and test products
8. Easy one-stop purchasing
9. Quick after-sale technical advice and guidance

mysun factory.jpg

production line 1.jpgproduction line 2.jpg



Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
