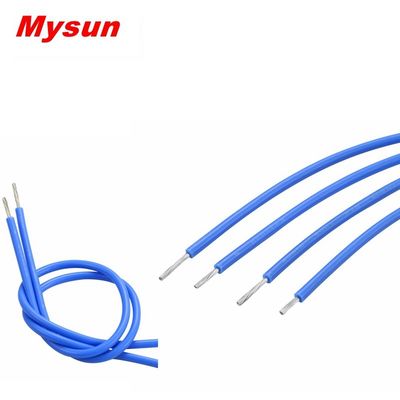

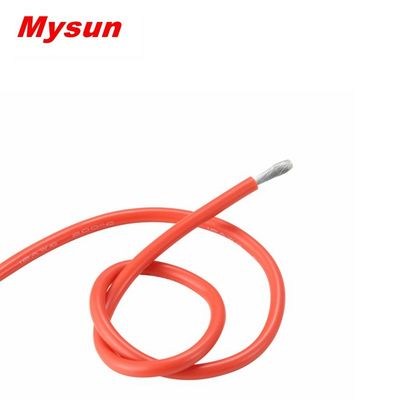

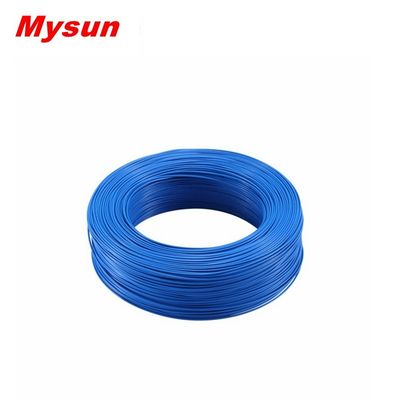

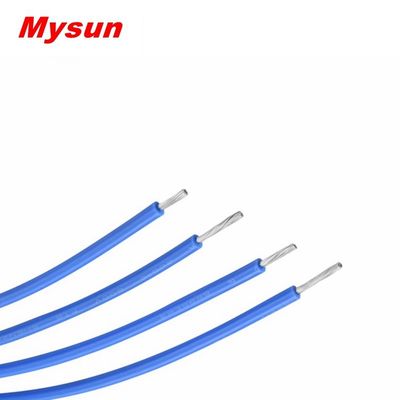

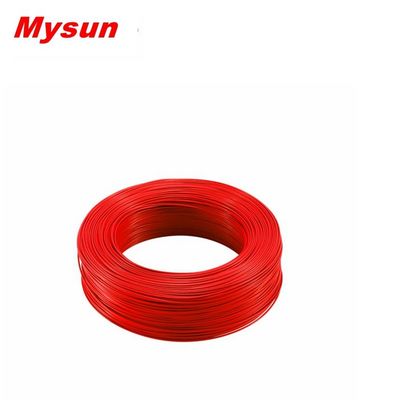

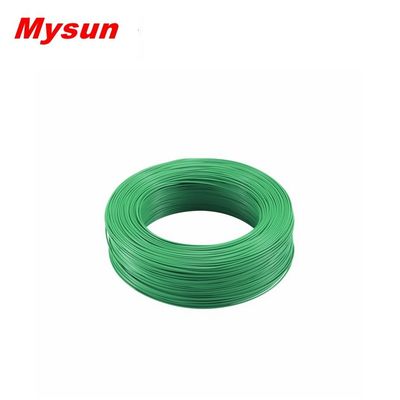

200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 3KV, 6KV,10KV,20,KV,30KV | Rated Temperature | 200℃ |
|---|---|---|---|
| Conductor | Tinned Copper | Insulation | Silicone Rubber |
| Certification | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 | Application | Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. |
| Color | Customized | Size | 16-28awg |
| Name | Flexible Cable | ||
| High Light | Rubber Insulated Battery Cable AWM,UL3512 Silicone Rubber Insulated Cable,150C Flexible Silicone Wire |
||
Product Description
high voltage UL 3239 Silicone Rubber Insulated Wire tinned copper wire
specifications
| Retad voltage | 3KV, 6KV,10KV,20,KV,30KV |
| Retad temperature | 200°C |
| Insulation | silicone rubber |
| Conductor | tinned copper wire |
| Standards | UL 758 |
| Application | home appliances/ leds/industrial machine |
| M/FT | 305/1000 |
| SIZE | 16-28awg |
| Color | white,black,red,brown,yellow,blue,green,transparent etc. |
production dimensions
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Length (m)(Ft) |
|||||||||||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
3000V | 6000V | 10000V | 20000V | 30000V | |||||||
| Thickness (mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
|||||
| 28 | 7/0.12 | 0.37 | 0.50 | 1.37 | 0.70 | 1.77 | 1.00 | 2.37 | 1.30 | 2.97 | 1.70 | 3.77 | 227 | 305/1000 |
| 26 | 7/0.15 | 0.49 | 1.49 | 1.89 | 2.49 | 3.09 | 3.89 | 143 | ||||||
| 24 | 14/0.14 | 0.60 | 1.60 | 2.00 | 2.60 | 3.20 | 4.00 | 89.3 | ||||||
| 22 | 22/0.14 | 0.76 | 1.76 | 2.14 | 2.76 | 3.36 | 4.16 | 56.4 | ||||||
| 20 | 32/0.14 | 0.91 | 1.91 | 2.31 | 2.91 | 3.51 | 4.31 | 35.2 | ||||||
| 18 | 52/0.14 | 1.17 | 2.17 | 2.57 | 3.17 | 3.77 | 4.57 | 22.2 | ||||||
| 16 | 52/0.18 | 1.50 | 2.50 | 2.90 | 3.50 | 4.10 | 4.90 |
14
|
||||||
advantage of silicone wire
Silicone rubber is known for its versatility, flexibility, and durability. This material is a stable, non-reactive, synthetic elastomer
that can be used in extreme environments involving temperatures ranging from -55°C to over 300°C. Silicone rubber can be
designed using different types of formulations of one or two polymers along with filler elements.
Hence, they can provide effective application solutions while reducing overall manufacturing costs.
Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:
- Radiators
- Steel mills
- Electric motors
- Hot rolling mills
- Cooking surfaces
- Heating apparatus
- Industrial converters
- Ovens and ventilators
- Household appliances
- Metallurgical facilities
- Civil and industrial plants
- Lighting (halogen lamps, etc.)
- High voltage electrical cabins and circuits
If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated wire is what you need.
You can contact us to help you select the wire gauge and shielding that can meet your needs.
If required,we can also aid you with custom manufactured wires and cables.
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
