16AWG 26/0.254 UL 3122 silicone rubber tinned copper wire 300V 200C black white blue

Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 0.50mm2awg Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
High Light

AWM3122 Fiberglass Insulated Copper Wire

,

16AWG Rubber Tinned Copper Wire

,

CCC Flexible Rubber Insulated Wire

Leave a Message
Product Description

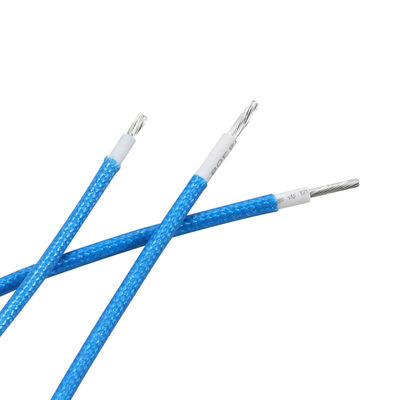

UL3122 silicone rubber wire

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG



ConductorInsulationMax Cond resistance
(ohms/m)
Unit length
(m)(F)
   3KV6KV10KV20KV30KV
SizeConstructionDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameter
(AWG)(NO./mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
287x0.120.370.501.370.701.771.002.371.302.971.703.77239610/2000
267x0.150.490.501.490.701.891.002.491.303.091.703.89150610/2000
2414x0.140.600.501.600.702.001.002.601.303.201.704.0094.2610/2000
2222x0.140.760.501.760.702.141.002.761.303.361.704.1659.4305/1000
2032x0.140.910.501.910.702.311.002.911.303.501.704.3136.7305/1000
1852x0.141.170.502.170.702.571.003.171.303.771.704.5723.2305/1000
1652x0.181.500.502.500.702.901.003.501.304.101.704.9014.6305/1000
