200C UL758 26AWG fiberglass Rubber Insulated Electrical Wire hook up wire for heating

Place of Origin china
Brand Name MYSUN
Certification UL
Model Number UL3122
Minimum Order Quantity 305m
Price 0.1-0.5 USD/m
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Silicone Wire Size 12-26AWG 0.3-1.25mm2
Rated Voltage 600V Rated Temperature 200C
Colors Red\blue\white \ Yellow \green\brown\black\grey \transparent Certification ROHS/REACH/UL/CSA
Standard UL758 Flame Test FT2
Feature High Temperature Resistance Advantage 20 Years Production Experience
High Light

AWM3122 Fiberglass Insulated Copper Wire

,

16AWG Rubber Tinned Copper Wire

,

CCC Flexible Rubber Insulated Wire

Leave a Message
Product Description

200C UL758 26AWG fiberglass Rubber Insulated Electrical Wire hook up wire for heating



Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m) (Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35

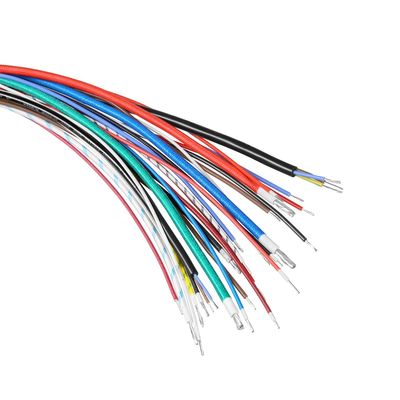

200C UL758 26AWG fiberglass Rubber Insulated Electrical Wire hook up wire for heating 0

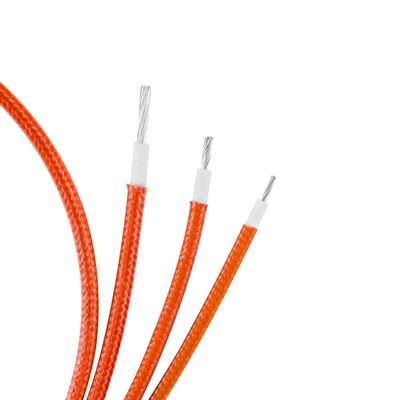

200C UL758 26AWG fiberglass Rubber Insulated Electrical Wire hook up wire for heating 1
