UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance

  • UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance
  • UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance
  • UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance
  • UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance
  • UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance
  • UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL 3134
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 150℃
Conductor Tinned Copper Insulation Silicone Rubber
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application LED Lighting Application
Color Customized Size 18awg
Type Flexible Cable Customize OEM/ODM Cable
High Light

Silicone Rubber Insulated Wire UL3728

,

CSA Silicone Rubber Insulated Wire

,

AWM Rubber Insulated Battery Cable
Leave a Message
Product Description

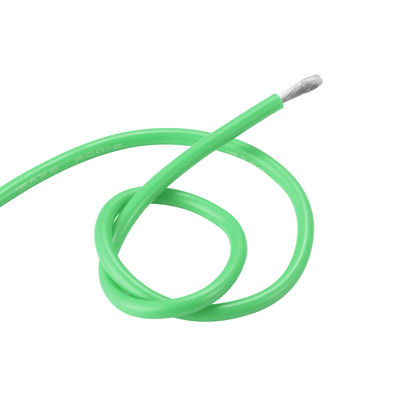

 flexible UL 3134 Silicone Rubber Insulated Wire tinned copper wire



specifications



Retad voltage 600V
Retad temperature 150°C
Insulation silicone rubber
Conductor tinned copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
Size awg12,14,16,18
M/FT 305/1000
Color white,black,red,brown,yellow,blue,green,transparent etc.



product dimensions

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
18 41/0.16 1.18 0.8 2.78 22.2 305/1000
16 26/0.254 1.49 0.8 3.09 14 305/1000
14 41/0.254 1.87 0.8 3.47 8.78 200/656
12 19/0.47 2.36 0.8 3.96 5.53 200/656



Benefits of silicone rubber insulated wire

Silicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:

  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires

This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated

wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet

your needs. If required, We can also aid you with custom manufactured wires and cables.



UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance 0

UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance 1



UL 3134 18AWG 41/0.16mm Flexible Silicone Rubber Insulated Wire For Home Appliance 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
