UL3122 Mysun Electric Wires High Temp 300V 18AWG XLPE Cable for Robot

Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3122
Minimum Order Quantity 3050 meters
Price Negotiable
Packaging Details 305/610 Meters per Roll / 7 Rolls per Carton or can be customized
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Fiberglass Braided Wire Insulation Silicone Rubber+fiberglass
Conductor Tinner Copper Size 16-26AWG
Conductor Type Stranded Rated Voltage 600V
Rated Temperature 150degrees Color Brown
High Light

Silicone Rubber Tinned Copper Wire

,

CCC Tinned Copper Silicone Wire

,

Tinned Flexible Silicone Insulated Wire

Leave a Message
Product Description

UL3122 Mysun Electric Wires High Temp 300V 18AWG XLPE Cable for Robot



Specifications:

Nominal voltage: 300V

Temperature range: 200℃

Insulation:Silicone rubber+fiberglass

Item:Fiberglass braided wire

Product features:

Fiberglass braided wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.







Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Inside thickness(mm) Diameter
(mm)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 0.60 1.81 89.3 305/1000
22 7/0.254 0.77 0.60 1.97 56.4 305/1000
20 7/0.31 0.94 0.60 2.14 35.2 305/1000
18 7/0.39 1.19 0.60 2.39 22.2 305/1000
16 7/0.49 1.49 0.60 2.69 14 305/1000
24 1/0.50 0.50 0.65 1.80 89.3

3051000

22 1/0.65 0.65 0.65 1.95 56.4 305/1000
20 1/0.81 0.81 0.65 2.11 35.2 305/1000
18 1/1.02 1.02 0.65 2.32 22.2 305/1000
16 1/1.20 1.20 0.65 2.50 14 305/1000
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 0.60 1.96 56.4 305/1000
20 26/0.16 0.94 0.60 2.14 35.2 305/1000
18 41/0.16 1.18 0.60 2.38 22.2 305/1000
16 26/0.254 1.49 0.60 2.69 14 305/1000
0.3mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 0.60 2.12 40.1 305/1000
0.75mm² 30/0.18 1.13 0.60 2.33 26.7 305/1000
1.00mm² 40/0.18 1.31 0.60 2.51 20 305/1000
1.25mm² 50/0.18 1.46 0.60 2.66 14.35 305/1000

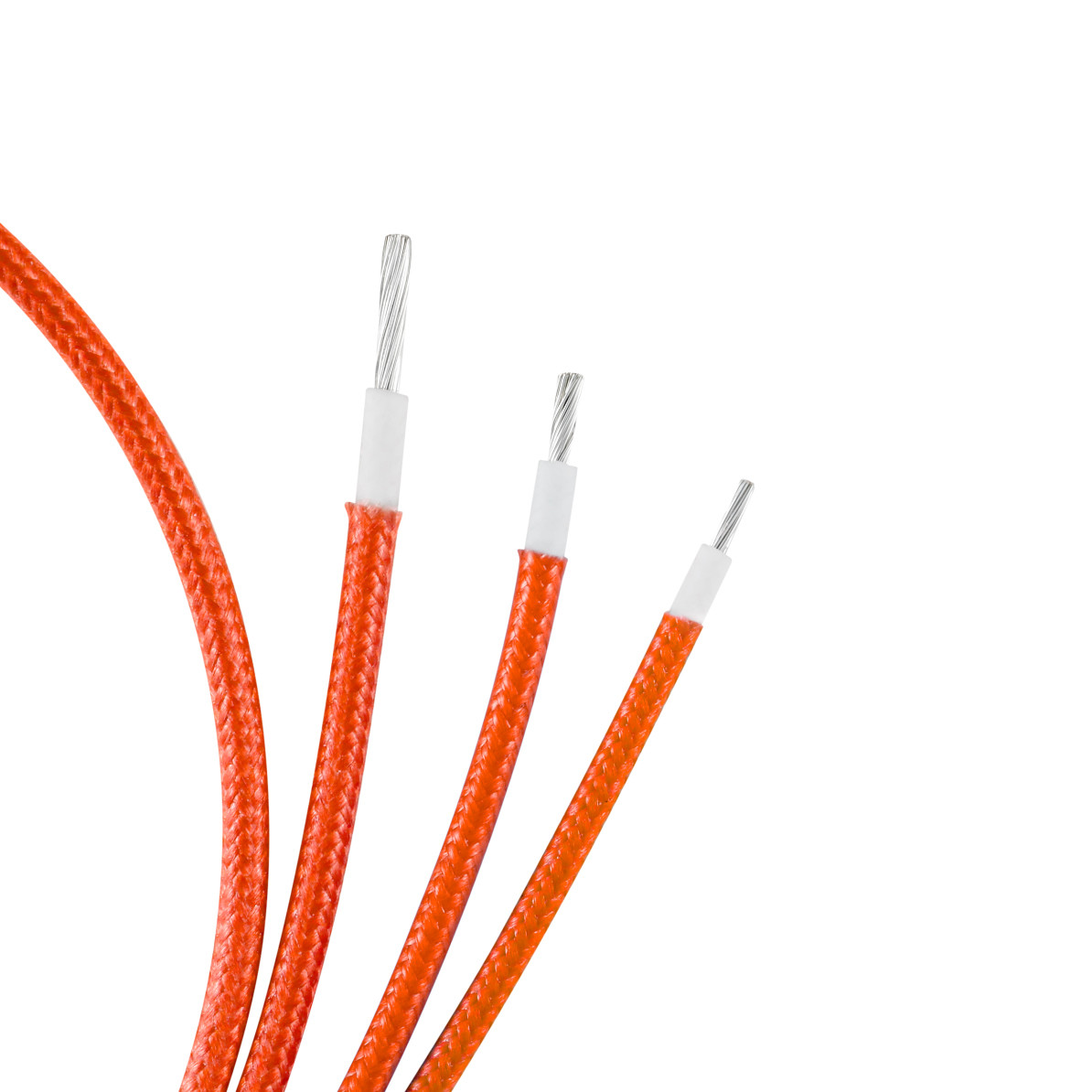

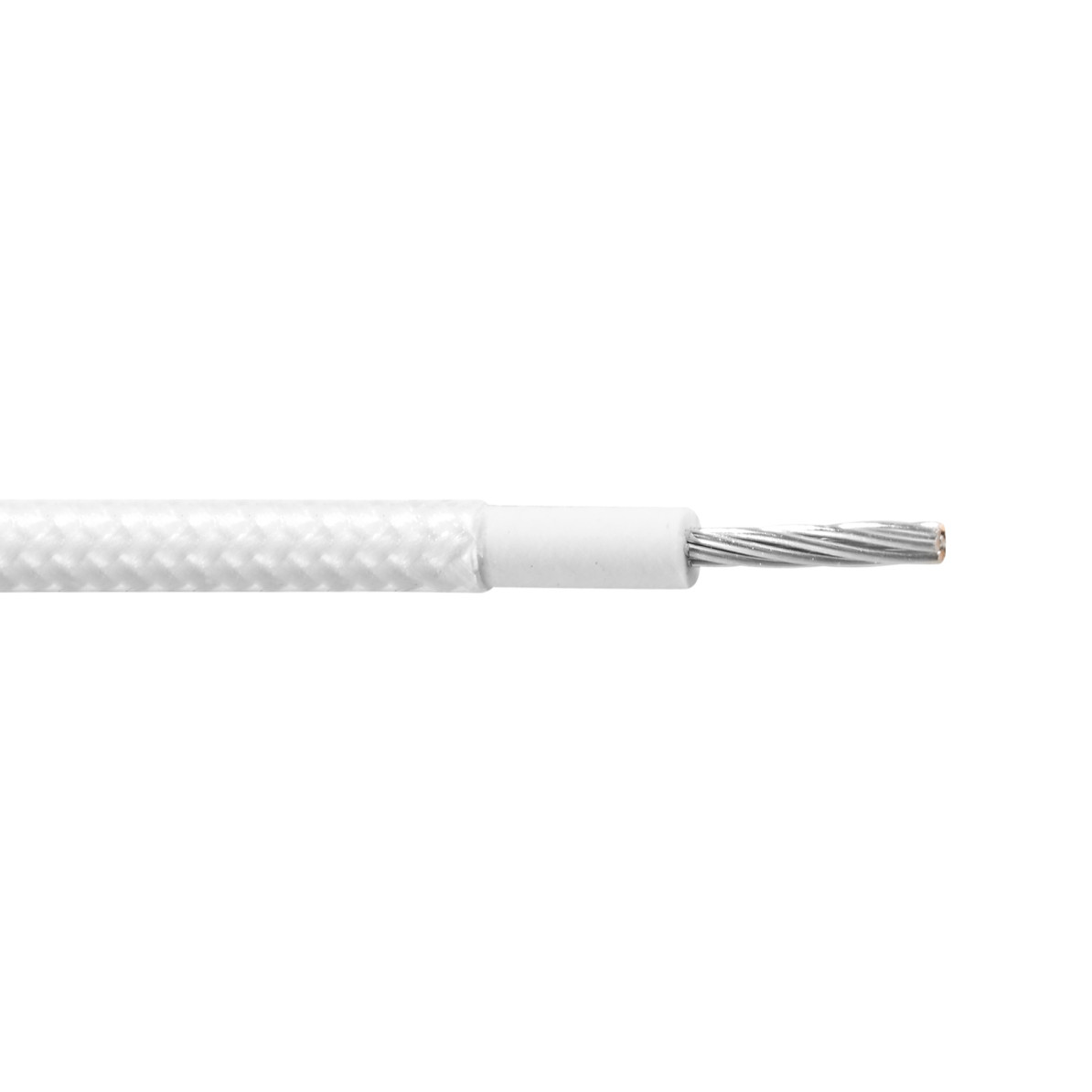

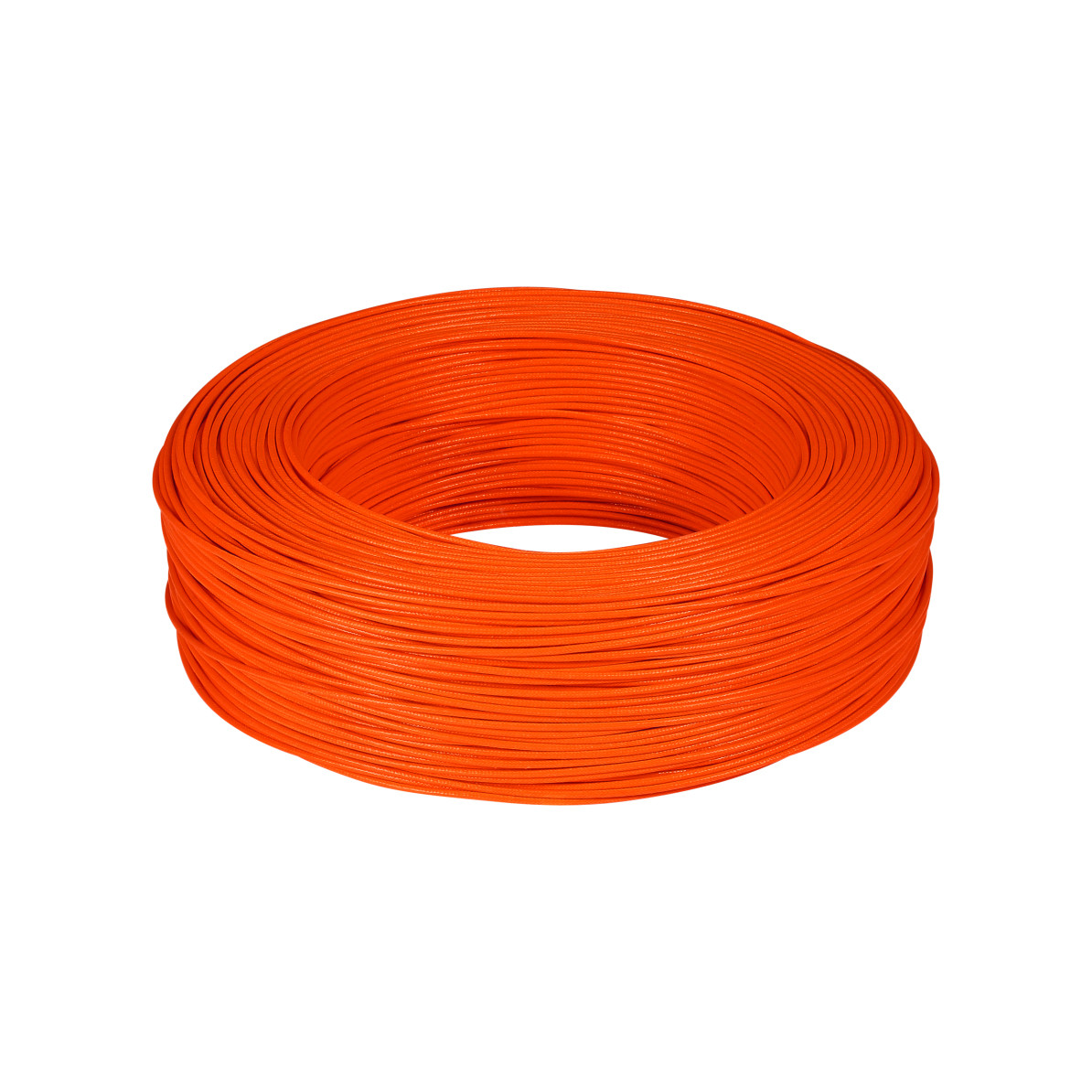

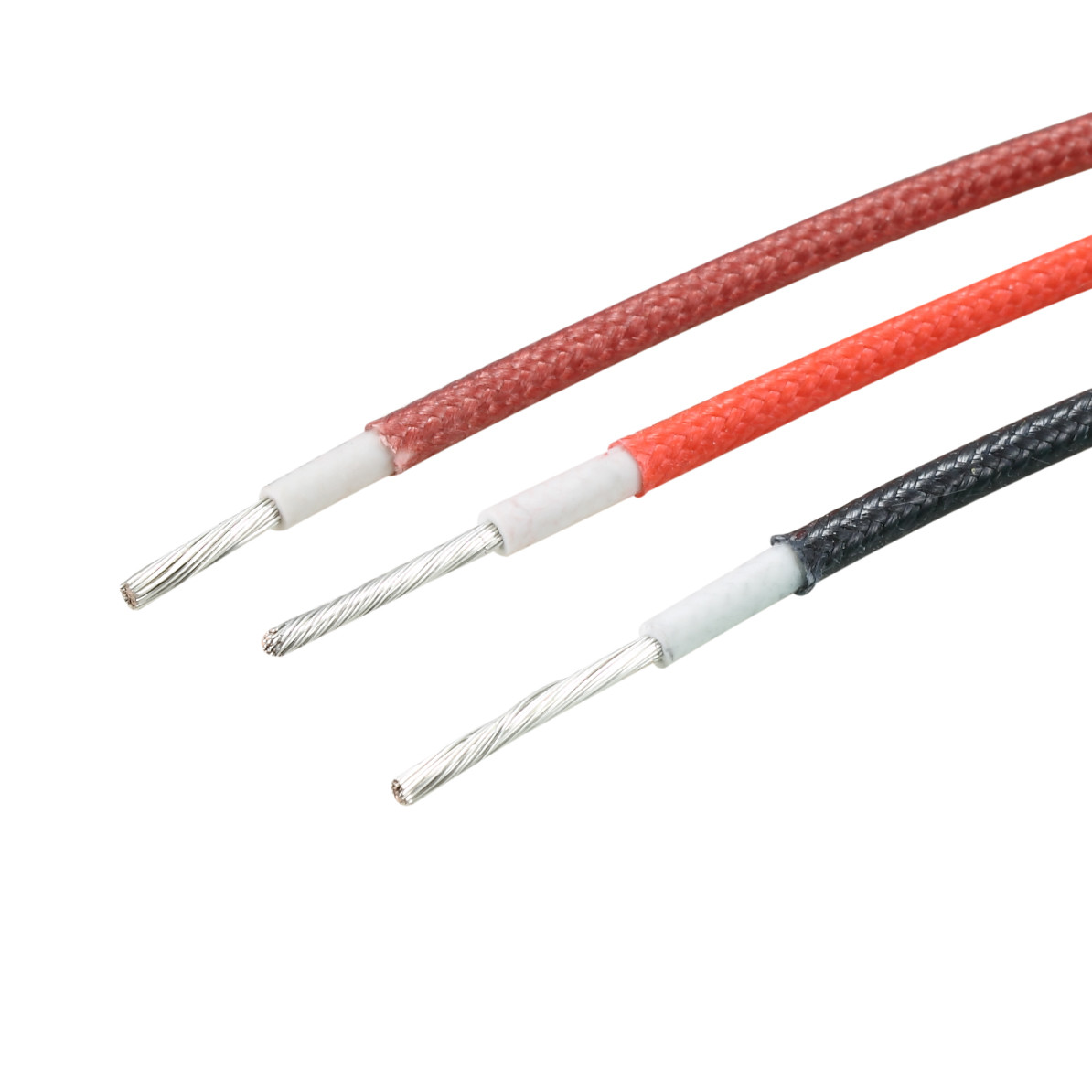

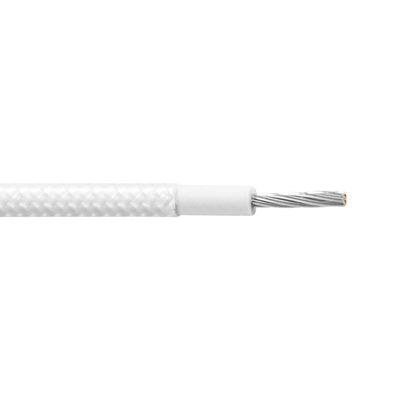

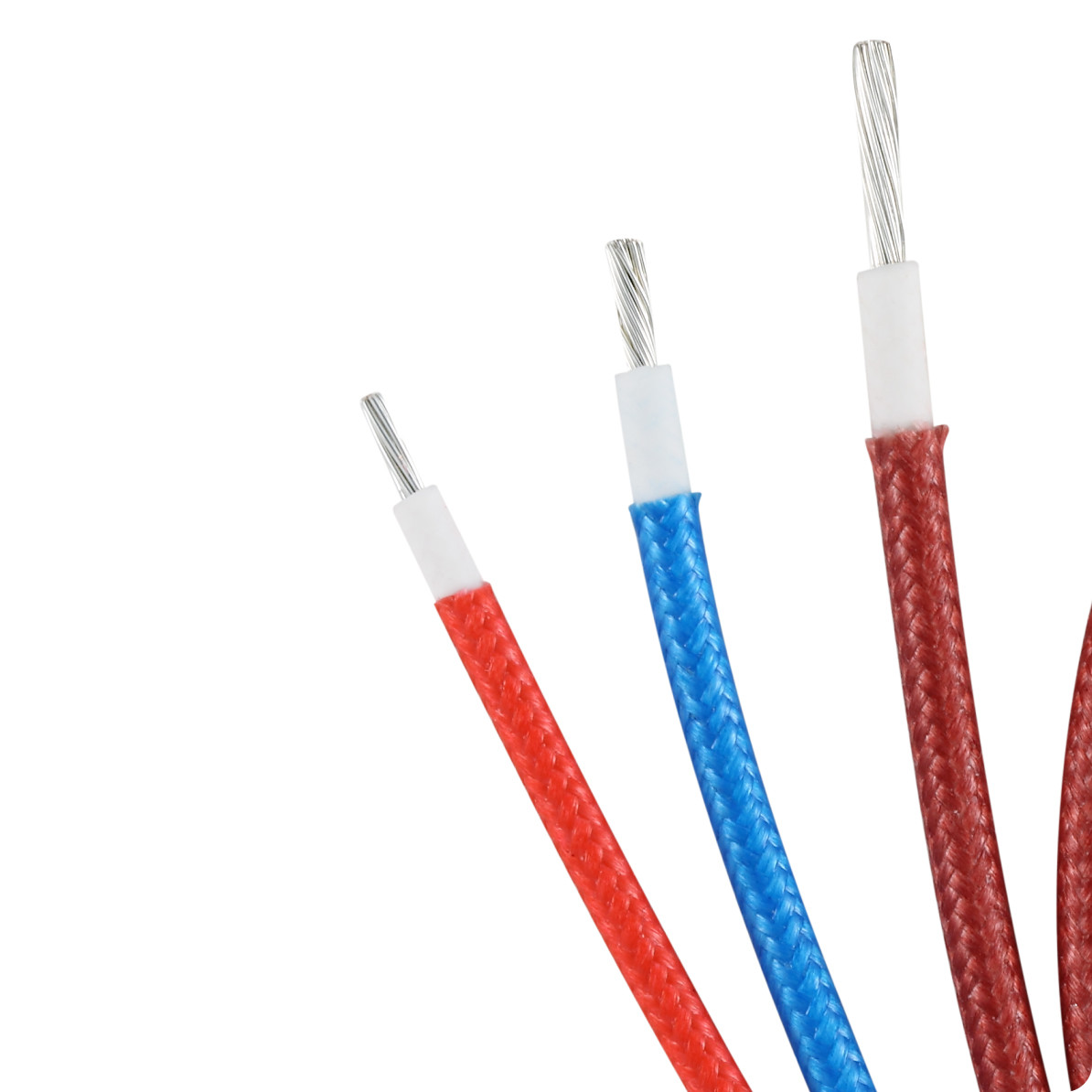

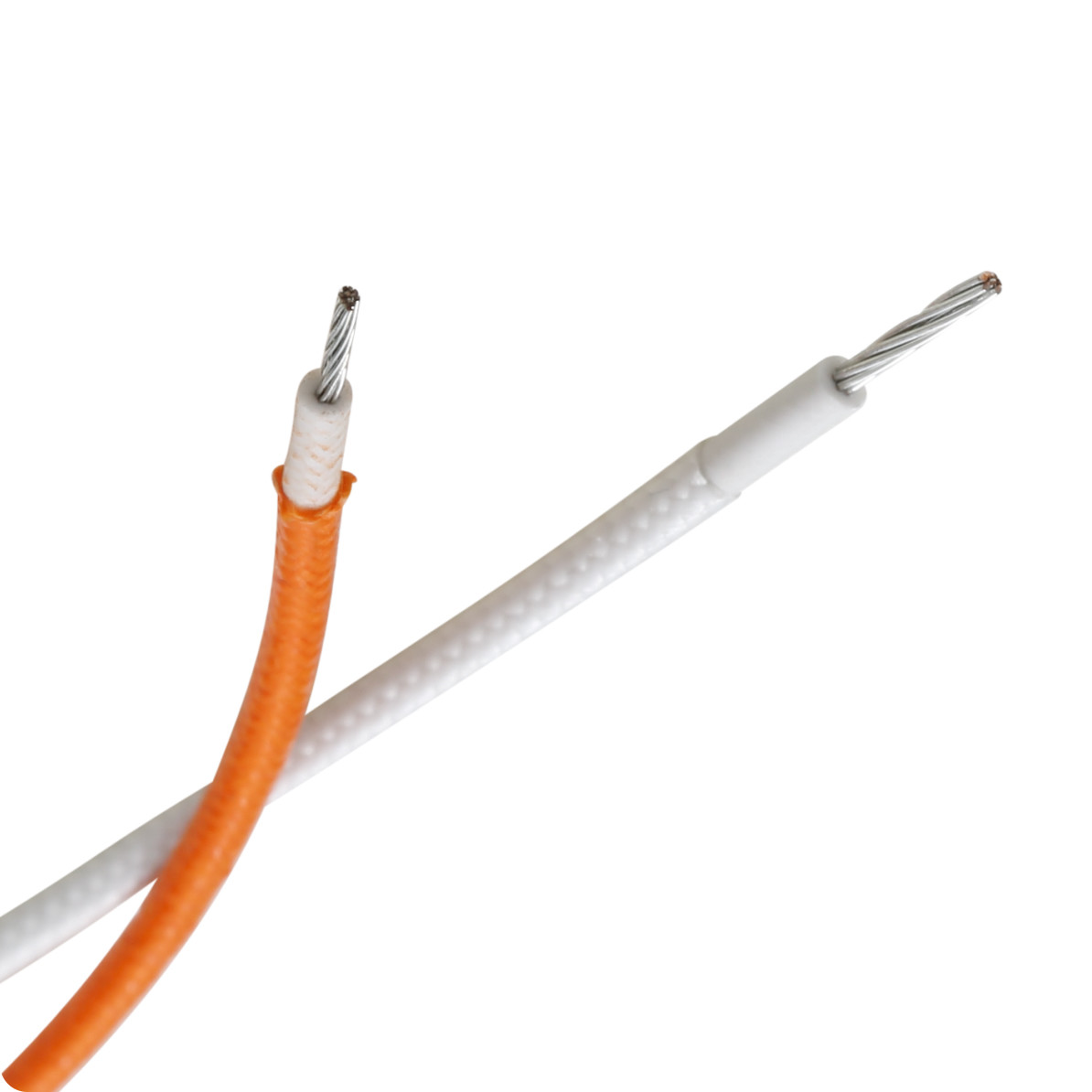

Product shot:

UL3122 Mysun Electric Wires High Temp 300V 18AWG XLPE Cable for Robot 0

UL3122 Mysun Electric Wires High Temp 300V 18AWG XLPE Cable for Robot 1



Port:Shenzhen
Lead Time :
Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated









QNH76117-b--20170321_01--20170321_08--20170321_09--20170321_02--20170321_04



UL3122 Mysun Electric Wires High Temp 300V 18AWG XLPE Cable for Robot 8



Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
