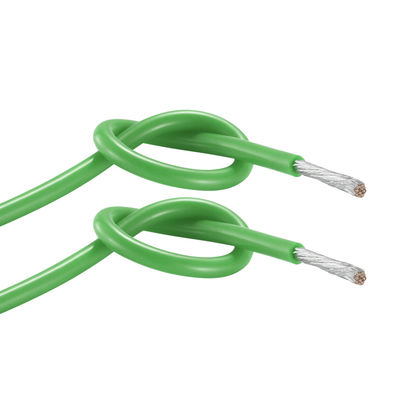

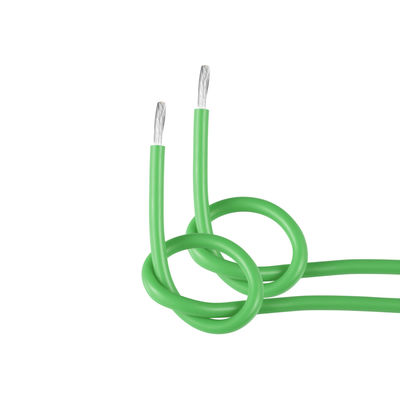

450V electrical wire VDE H05S-K Flexible Single Core Silicone Rubber Insulated wires and Cables

Place of Origin China
Brand Name Mysun
Certification VDE
Model Number H05S-K
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Rated Voltage 450V Cross Section 1.00mm2
Core Single Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll
Standard VDE 0282-3 Color Black.yellow,white
High Light

Copper Conductor Flexible Insulated Wire

,

Thermoplastic Silicone Rubber Cables

,

UL3122 Silicone Rubber Cables

Leave a Message
Product Description
Conductor Insulation Max Cond resistance
(ohms/m)
Unit length
(m)(F)
Section Construction Diameter Nominal Thickness Diameter
(mm²) (NO./mm) (mm) (mm) (mm)
0.50 20/0.18 0.92 0.80 2.52 40.1 305/1000
0.75 30/0.18 1.13 0.80 2.73 26.7 305/1000
1.00 40/0.18 1.31 0.80 2.91 20 305/1000
1.25 50/0.18 1.46 0.80 3.06 14.35 305/1000
1.50 30/0.254 1.60 0.90 3.40 13.7 305/1000
2.00 41/0.254 1.87 0.90 3.67 8.78 305/1000
2.50 50/0.254 2.08 1.00 4.08 7.16 305/1000





450V electrical wire VDE H05S-K Flexible Single Core Silicone Rubber Insulated wires and Cables 0
