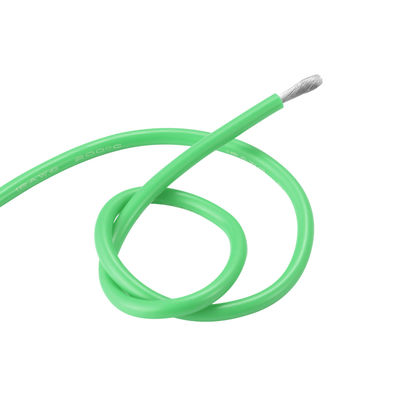

High voltage 10KV Tinned Copper Conductor Flexible Insulated Wire UL 3239
|Conductor Type||Stranded||Insulation Material||Silicone Rubber Extruded|
|Conductor Material||Tinned Copper||Type||Insulated|
|Packing||100m/Roll,wooden Drum,1000ft /roll,305m Per Roll||Temp Reistance||200 Degree|
XLPVC Nickel Plating Copper Wire,
Tinned Copper Fiberglass Braided Wire,
AWM Rubber Insulated Battery Cable
Mysun Wire and Cable’s UL 3239 wire is a hookup wire manufactured with fully annealed tinned copper, flexible stranding and insulation resistant to abrasion, deformation, cut-through and chemical attack. UL 3239 wire’s tough insulation resists shrink-back and melting, even when in direct contact with a soldering iron. UL 3239 wire’s insulation provides the same excellent flame-retardant properties as the best PVC insulations. UL 3239 wire does not melt or shrink back at termination, making it an outstanding high voltage wire specially designed for consumer electronics, appliances, test equipment, and instrumentation. UL 3239 wire is also rated 150°C and categorized as a High Voltage Lead Wire (HVSR). It is recognized by UL as style 3239 standards.
|Conductor||Insulation||Max Cond resistance|
|Size||Construction||Diameter||Nominal Thickness||Diameter||Nominal Thickness||Diameter||Nominal Thickness||Diameter||Nominal Thickness||Diameter||Nominal Thickness||Diameter|
