CCC 7.60mm 18AWG XLPE Hook Up Wire For Industrial Machine

Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS
Model Number 3289- 18AWG
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305/610 Meters per Roll , 7 Rolls per Carton
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union,Paypal,HSBC
Supply Ability 400000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item XLPE Hook Up Wire Rated Voltage 600-750V
Rated Temperature 150℃ Colours White,black,red,brown,yellow,green,blue,yellow/green
Package 100/305meters Per Roll Environmental RoHS, REACH;Low Smoke And Halogen Free
Standred Ul758 Insulation XLPE
Diameter 0.30-7.60mm Spark Test 3000V-10000V AC
Conductor Tinned Copper
High Light

7.60mm XLPE Hook Up Wire

,

18AWG XLPE Hook Up Wire

,

CCC Industrial Machine XLPE Wire

Leave a Message
Product Description

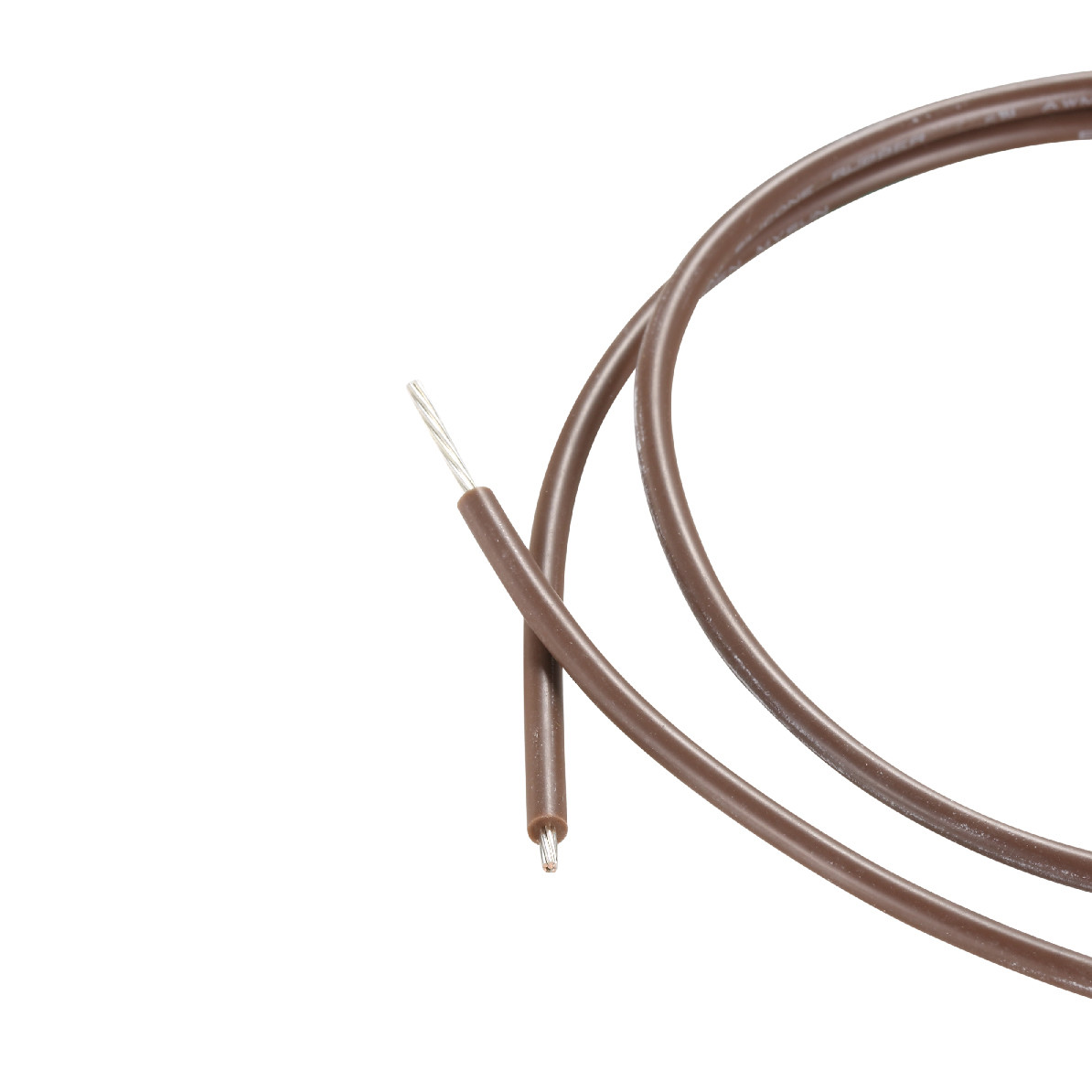

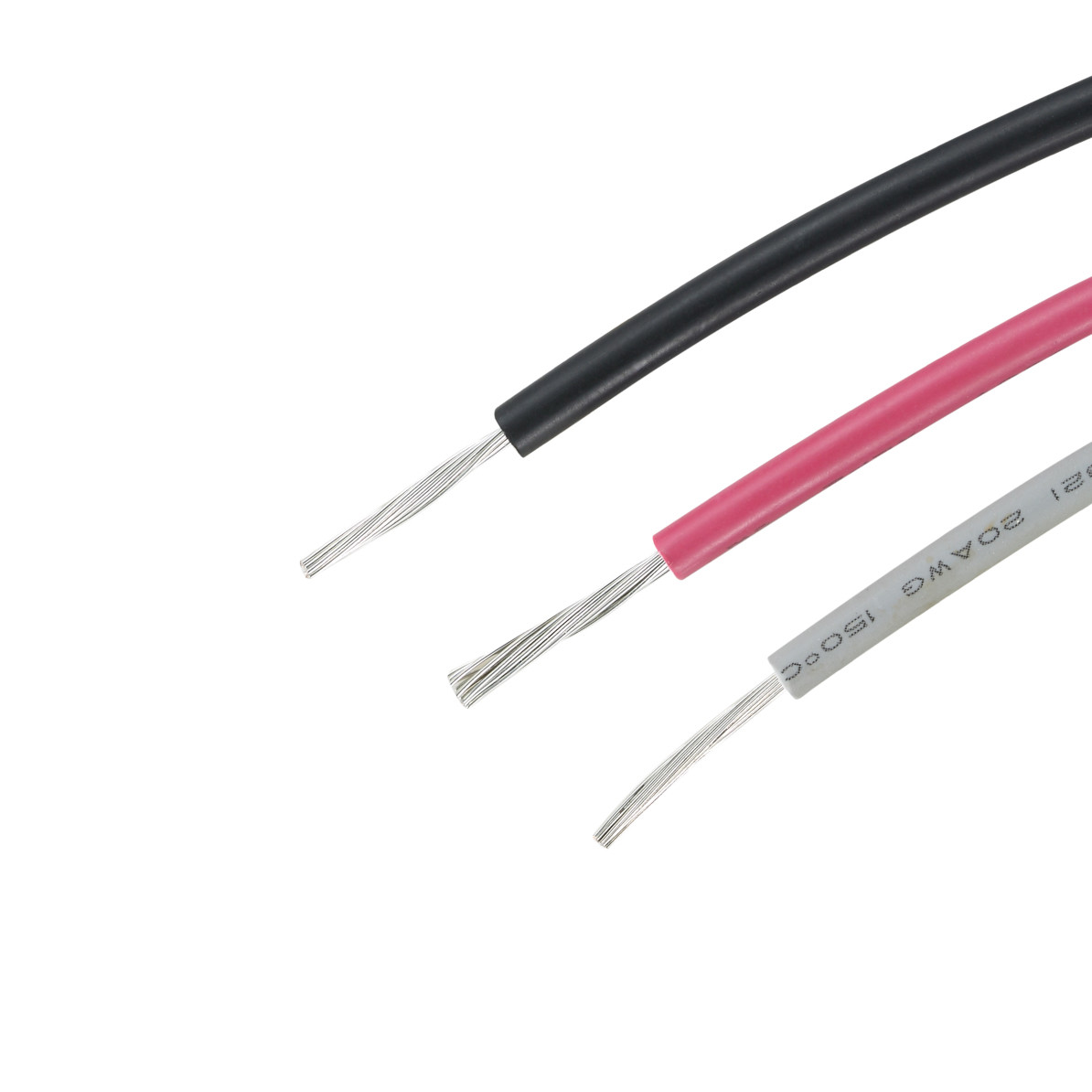

XLPE hook up wire



Specifications:

Nominal voltage: 600-750V

Temperature range: 150C

Standard: UL 758

Insulation: XLPE

Conductor: tinned copper wire



Product features:

XLPE hook up wires has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Inside thickness(mm) Diameter
(mm)
28 7/0.127 0.38 0.78 1.94 227 610/2000
26 7/0.16 0.48 0.78 2.04 143 610/2000
24 11/0.16 0.60 0.78 2.16 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 21/0.18 0.94 0.78 2.49 35.2 305/1000
18 16/0.254 1.18 0.78 2.73 22.2 305/1000
16 26/0.254 1.50 0.78 3.05 14 305/1000
14 41/0.254 1.89 0.78 3.45 8.78 305/1000
12 65/0.254 2.37 0.78 3.93 5.53 305/1000
10 105/0.254 3.02 0.78 4.58 3.476 305/1000
9 133/0.254 3.36 1.15 4.92 2.73 100/328
8 133/0.28 3.75 1.15 6.05 2.16 100/328



CCC 7.60mm 18AWG XLPE Hook Up Wire For Industrial Machine 0




Company information



About us: Shenzhen Mysun Insultaion Materials Co.,Ltd. is a comprehensive enterprise integrated with manufacture, distribution and trade. We specialize in production of all sorts of wire of high temperature and connecting which have been subjected to test of UL, cUL, VDE, CE,CCC,SGS and TUV, and supply enterprises such as homeappliance, electronics, lighting, medical unit, communcation and office equipment with connecting wiring harness and processing service.



FAQ:



1.Are you a manufacture ?

  Yes,we are prossional manufacture of electrical wire&cable.



2.What are your main product ?

   Our main products are silicone rubber wire, wire,xlpe wire,mica wire and wire harnesses.



3.What certification do you have ?

    We have approved ISO9001, ISO14001 , ISO/TS 16949, UL, CUL, VDE, CE, CCC.



4.Who are your main customers ?

   We have customers all over the world ,including Midea, LG, Nestle, Panasonic, Phlips, Sharp, Nespresso, Toshiba,  Galanz,Supor,Hisense,Airmate,Daikin,Joyoung,Whirlpool.etc.



5, What’s the MOQ?

    One roll. 100M/200M/300M/305M/500M/Roll.





Service

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!



Packaging : Hard cardboard carton ( Customizable)


payment terms: LC, TT, Western Union, Money Gram and PayPal


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
