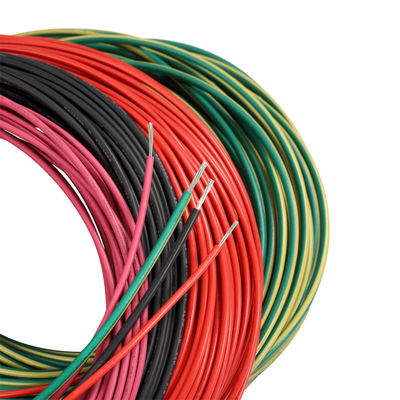

600V 305m XLPE Hook Up Wire 22 Gauge AWM3321 Tinned Copper

  • 600V 305m XLPE Hook Up Wire 22 Gauge AWM3321 Tinned Copper
  • 600V 305m XLPE Hook Up Wire 22 Gauge AWM3321 Tinned Copper
  • 600V 305m XLPE Hook Up Wire 22 Gauge AWM3321 Tinned Copper
Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL
Model Number 3321-22AWG
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 100/305 Meters per Roll / 7 Rolls per Carton
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability 400000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model AWM3321 Insulation XLPE
Conductor Tinned Copper Conductor Construction 7/0.10 7/0.127 7/0.16 17/0.16 21/0.18 16/0.254 41/0.254 105/0.254
Diameter 1.86-10.66 Mm Max.Cond Resistance 361-0.5384 Ω/KM
Rated Voltage 600V Rated Temperature 150℃
Standard UL758 Flammability Rating VW-1/FT-1/ -LF-/-HF-
Color 8 Colors Application Home Appliance,industrial Machines And Others
Package 100/305 Meters Per Roll Original Of Place China
High Light

305m XLPE Hook Up Wire

,

600V XLPE Hook Up Wire

,

22 Gauge Xlpe Insulated Wire
Leave a Message
Product Description

AWM3321 22AWG  XLPE insulated cable UL certificated



Specifications:

Nominal voltage: 600V

Temperature range: 150℃

Standard: UL 758

Insulation: XLPE

Conductor: tinned copper wire



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Inside thickness(mm) Diameter
(mm)
28 7/0.127 0.38 0.78 1.94 227 610/2000
26 7/0.16 0.48 0.78 2.04 143 610/2000
24 11/0.16 0.60 0.78 2.16 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 21/0.18 0.94 0.78 2.49 35.2 305/1000
18 16/0.254 1.18 0.78 2.73 22.2 305/1000
16 26/0.254 1.50 0.78 3.05 14 305/1000
14 41/0.254 1.89 0.78 3.45 8.78 305/1000
12 65/0.254 2.37 0.78 3.93 5.53 305/1000
10 105/0.254 3.02 0.78 4.58 3.476 305/1000
9 133/0.254 3.36 1.15 4.92 2.73 100/328
8 133/0.28 3.75 1.15 6.05 2.16 100/328







Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

    If you have your own shipper,you can tell me in advance.

   My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



Q1: What’s the MOQ?

A: One roll. 100M/200M/300M/305M/500M/Roll.



Q2: How to get the samples?

A: We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



Q3: What’s the payment terms?

A: LC, TT, Western Union, Money Gram and PayPal



Q4: What’s the delivery date?

A: Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



Q5: How to visit your factory/company?

A: We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
