Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C

Place of Origin CHINA
Brand Name MYSUN
Certification UL, CSA, ROHS, REACH
Model Number UL3132
Minimum Order Quantity 305m
Price 0.01
Packaging Details carton, pallet
Delivery Time 7-10 working days
Supply Ability 1million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 16-30AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Voltage 300V Rate Temp 150C
Application Home Appliance, Lighting Samples Available
High Light

CSA Silicone Rubber Insulated Wire

,

Silicone Rubber Insulated Wire 30AWG

,

150C Flexible Silicone Wire

Leave a Message
Product Description

Heat-proof electric cables using silicon rubber as an insulating material. The main uses are for home appliances, residential
facilities, office equipment, automotive electric appliances, etc., where its heat-resistance (180, 200 and 250 degrees
centigrade), excellent electric properties, and feasibility are needed. In addition, there are some wire lines that comply with
the UL/CSA of overseas-standard products and the Electrical Safety Law.



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.45 1.2 361 610/2000
28 7/0.12 0.38 0.45 1.28 227 610/2000
26 7/0.16 0.48 0.45 1.38 143 305/1000
24 7/0.20 0.61 0.45 1.5 89.3 305/1000
22 7/0.254 0.77 0.45 1.66 56.4 305/1000
20 7/0.31 0.94 0.45 1.8 35.2 305/1000
18 7/0.39 1.19 0.45 2.08 22.2 305/1000
16 7/0.49 1.49 0.45 2.37 14 305/1000

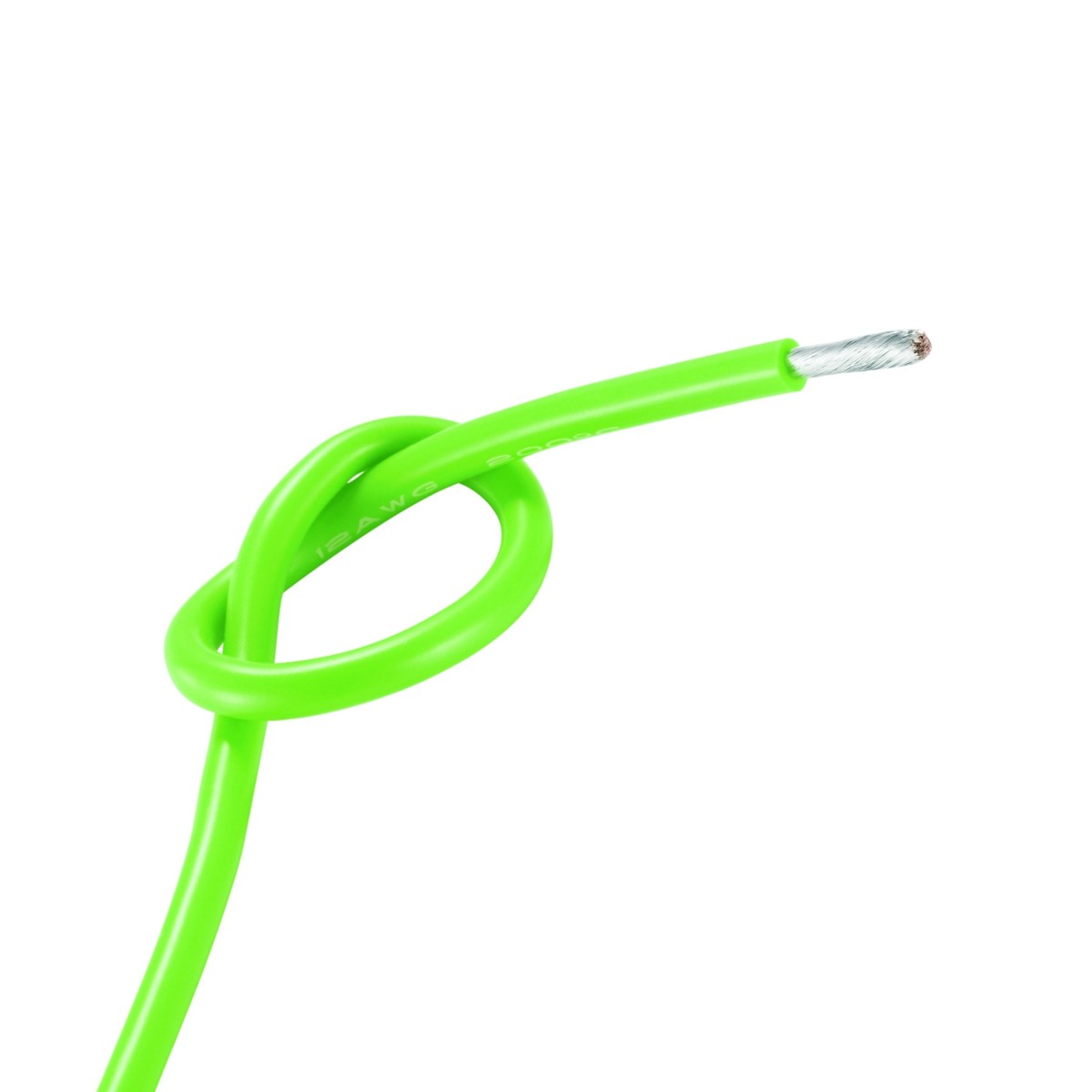

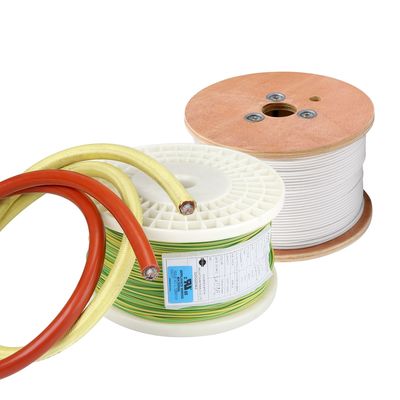

Cable pictures:

Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C 0

Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C 1

Certificates:

All of MYSUN cables are with UL, VDE and CSA certificate. We are strictly manage based on ISO and IATF standard.

Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C 2

MYSUN factory:

Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C 3

Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C 4

Flexible CSA Silicone Rubber Insulated Wire 30AWG 150C 5

Why choose us:

1. Full experience of 20 years in manufacturing high temperature cables/wires

2. Strict quality inspection of ISO9001 quality management, ISO14001 and IATF14969 system

3. Certifications for our products including UL, cUL, CSA, VDE,CCC, ROHS, REACH etc.

4. Free samples(in stock)

5. Delivery in one week for your goods

6. Several different payment methods,such as T/T,Western Union and L/C

7. Strong R&D Team to design and test products

8. Easy one-stop purchasing 9. Quick after-sale technical advice and guidance



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
