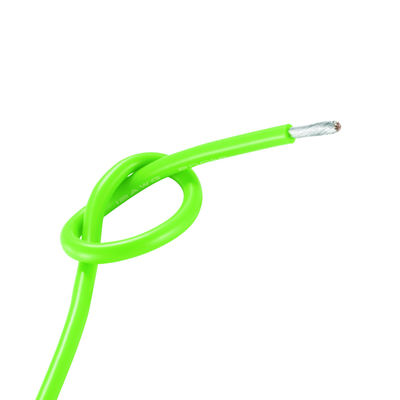

Copper UL3135 22Awg Round Silicone Insulated Wire 200c
| Place of Origin | Guangdong |
|---|---|
| Brand Name | Mysun |
| Certification | UL/cUL/CCC/CE/RoHS/SGS |
| Model Number | UL3135 |
| Minimum Order Quantity | 3050 meters |
| Price | 0.09 USD/M |
| Packaging Details | 305/610 Meters per Roll / 7 Rolls per Carton or can be customized |
| Delivery Time | 7-10 Working Days |
| Payment Terms | L/C, D/A, T/T, Western Union,Paypal,HSBC, D/A |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UL3135 | Conductor | Tinner Copper |
|---|---|---|---|
| Rated Voltage | 600V | Rated Temperature | 150degrees |
| Insulation | Silicone Rubber | Pcking | 1000Ft/ROLL, 2000Ft/ROLL |
| High Light | 22Awg Round Silicone Insulated Wire,UL3135 Round Silicone Insulated Wire,200c Insulated Copper Wire Cable |
||
Product Description
UL3135 round silicone insulated wire Insulated Copper Wire Cable 22 awg standard
Specifications:
Rated voltage: 300V
Rated temperature: 200c
Conductor:Tinned copper
Insulation: Silicone fiberglass
Standard: UL 758
Product dimensions:
| Conductor | Insulation | Max.Cond Resistance (Ω/KM) | Unit length (M)(Ft) | |||
| Size(AWG) | Construction(No./mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | ||
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 150 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.60 | 1.81 | 94.2 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.60 | 1.97 | 59.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.60 | 2.14 | 36.7 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.60 | 2.39 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.60 | 2.69 | 14.6 | 305/1000 |
| 0.3mm² | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 0.60 | 2.12 | 40.1 | 305/1000 |
| 0.75mm² | 30/0.18 | 1.13 | 0.60 | 2.33 | 26.7 | 305/1000 |
| 1.00mm² | 40/0.18 | 1.31 | 0.60 | 2.51 | 20 | 305/1000 |
| 1.25mm² | 50/0.18 | 1.46 | 0.60 | 2.66 | 14.35 | 305/1000 |
Shenzhen Mysun Insulation Materials Co., Ltd. Founded in 1999, It's a company of producing, selling and trading all kinds of UL, cUL, CSA, VDE, CCC, RoHS, REACH certified high temperature wire and cable. For home appliances, lighting, medical equipment, office facilities, industrial machine and motors & generators.
Our plant in Dongguan city and Hubei province, with branches in Shenzhen, Foshan and Hangzhou to better serve our clients inland and abroad.
Our plant in Dongguan city and Hubei province, with branches in Shenzhen, Foshan and Hangzhou to better serve our clients inland and abroad.
The company has consistently in accordance with the ISO9001, ISO14001 international standard and IATF16949 auto certification.
Honorary Certifications:
The quality management system ISO19001 is running efficiently at MYSUN. Our wires & cables in strict accordance with international UL, cUL, CSA, VDE, TUV, CE, CCC, TS16949 production, keep high quality!
FAQ
Q: Where your factory locating?
A: Our plant located in Dongguan. Have branches in several city to serving clients inland and abroad.
Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
Q: How can I get the samples?
A: We can make the samples according to your requests. And usually we will charge for it.
But the samples fee will be returned to you in later bulk order.
Q: What's your advantage upon other suppliers?
A: We have been on silicon and wire for over 20 years, gain experience and grow up together with our
customers in the past years. We are familiar with clients demands, and help for their business.
Q: How can you keep stable quality and leadtime?
A: We have very standard rules in raw material, pre-production test, in-production test, after-production test
and test before delivery. Every procedure must reach the required standard before continuing to the later
process.
Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact me. We will let you know.
