2000ft/Roll UL3133 22Awg Silicone Insulated Copper Wire
| Place of Origin | Guangdong |
|---|---|
| Brand Name | Mysun |
| Certification | UL/cUL/CCC/CE/RoHS/SGS |
| Model Number | UL3133 |
| Minimum Order Quantity | 1000Ft/ROLL, 2000Ft/ROLL |
| Price | Negotiable |
| Packaging Details | 305/610 Meters per Roll / 7 Rolls per Carton or can be customized |
| Delivery Time | 7-10 Working Days |
| Payment Terms | L/C, D/A, T/T, Western Union,Paypal,HSBC, D/A |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | UL3133 | Conductor Type | Stranded |
|---|---|---|---|
| Conductor | Tinner Copper | Rated Voltage | 600V |
| Rated Temperature | 150degrees | Color | All Color Can Be Customized |
| Insulation | Silicone Rubber | Pcking | 1000Ft/ROLL, 2000Ft/ROLL |
| High Light | 22Awg Silicone Insulated Copper Wire,UL3133 Silicone Insulated Copper Wire,2000ft/Roll Tinner Copper Electrical Wire |
||
Product Description

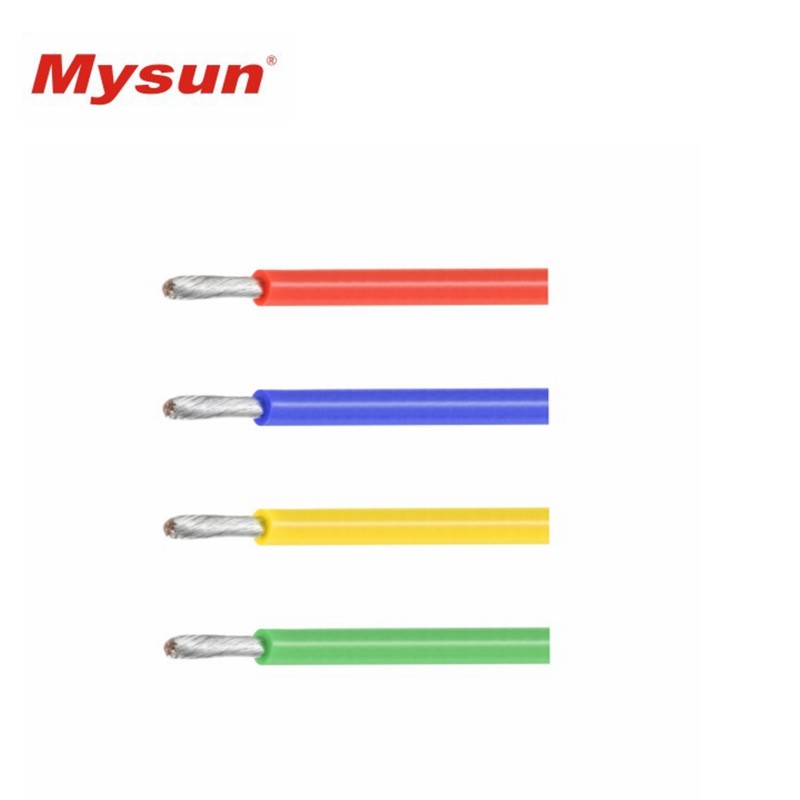

UL3133 high temperature electrical wire Silicone Insulated Copper Wire Cable 22 awg standard
1.Temperature range:-60°c ~ +150°c
2.Rated Voltage: 600V
3.Conductor:Tinned copper
4.Insulation: silicone rubber
5.Standard: UL758
6.Color: white blue red black brown yellow green yellow/green
7.Use for heating source for lighting, electric machinery, air conditioning, oven, drying path, auto ignition, and household appliances etc.
Production dimensions:
| Conductor | Insulation | Max.Cond Resistance(Ω/KM) | Unit Length(m)(Ft) | |||
| Size(AWG) | Construction(No./mm) | Diameter(mm) | Nominal Thickness(mm) | Diameter(mm) | ||
|
30 |
7/0.10 | 0.30 | 0.78 | 1.86 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.448 | 0.78 | 2.04 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 94.2 | 610/2000 |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 59.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.50 | 36.7 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14.6 | 305/1000 |
Our factory:
Mysun is a manufacture of producing, selling and trading all kinds validated by UL, cUL,CSA, VDE,CCC approval electrical wires and wire harness since 1999. Our company has consistently in accordance with the ISO9001,ISO14001 international standard and IATF16949 auto certificate, Service for home appliances, nwe energy automobile, UAV, Robot, lighting, industrial machines,medical euipments, and motors & generators. Committed to safety and environmental protection.
Product Shoot:
Our Certification:
FAQ:
1Q: Are you manufacturer or trading company?
A: We are a leading manufacturer, specialized in all kinds of high temperature electrical wire and cable
2Q: What certifications do you have?
A: We have UL,CE, RoHS, CCC and SGS for our wires&cables.
3Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.
4Q: What is your payment term?
A: We have several payment terms for you,T/T, Western Union,Paypal, etc.
